Windscreen washer hoses: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the washer hose from the cover on top of the false bulkhead panel.

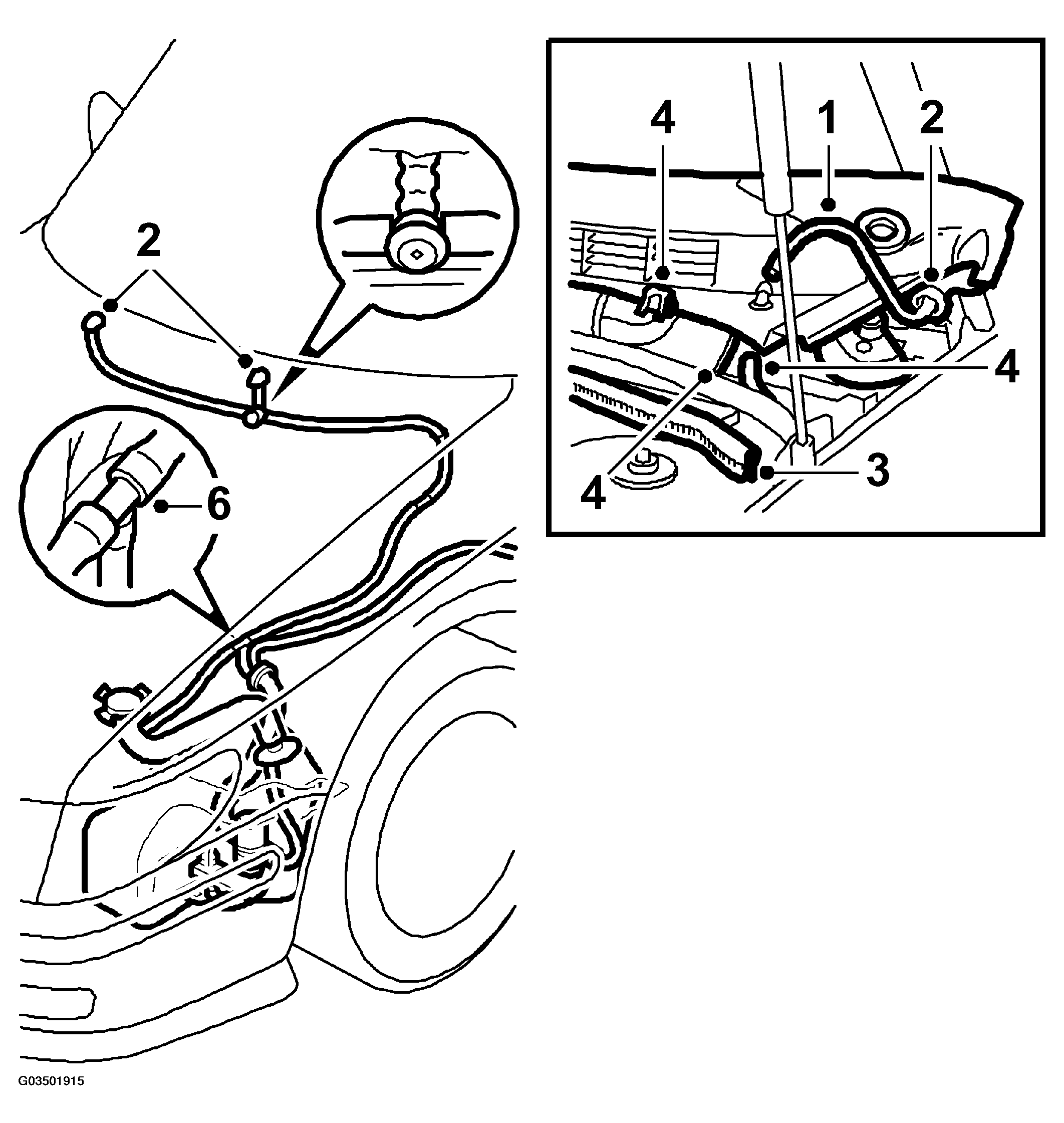

    Fig 1: Illustration For Steps 1-4,6
    G03501915
  2. Detach the hose from the nozzles in the bonnet and remove the hose and rubber bushing from the bonnet.
  3. Remove the rubber seal from the protective cover.
  4. Remove the clips from the cover on top of the false bulkhead panel.
  5. Lift the cover a little and detach the washer hose from the underside of the cover.
  6. Pull the hose out through the partition and disconnect it at the fork behind the battery.
