Washer pump: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

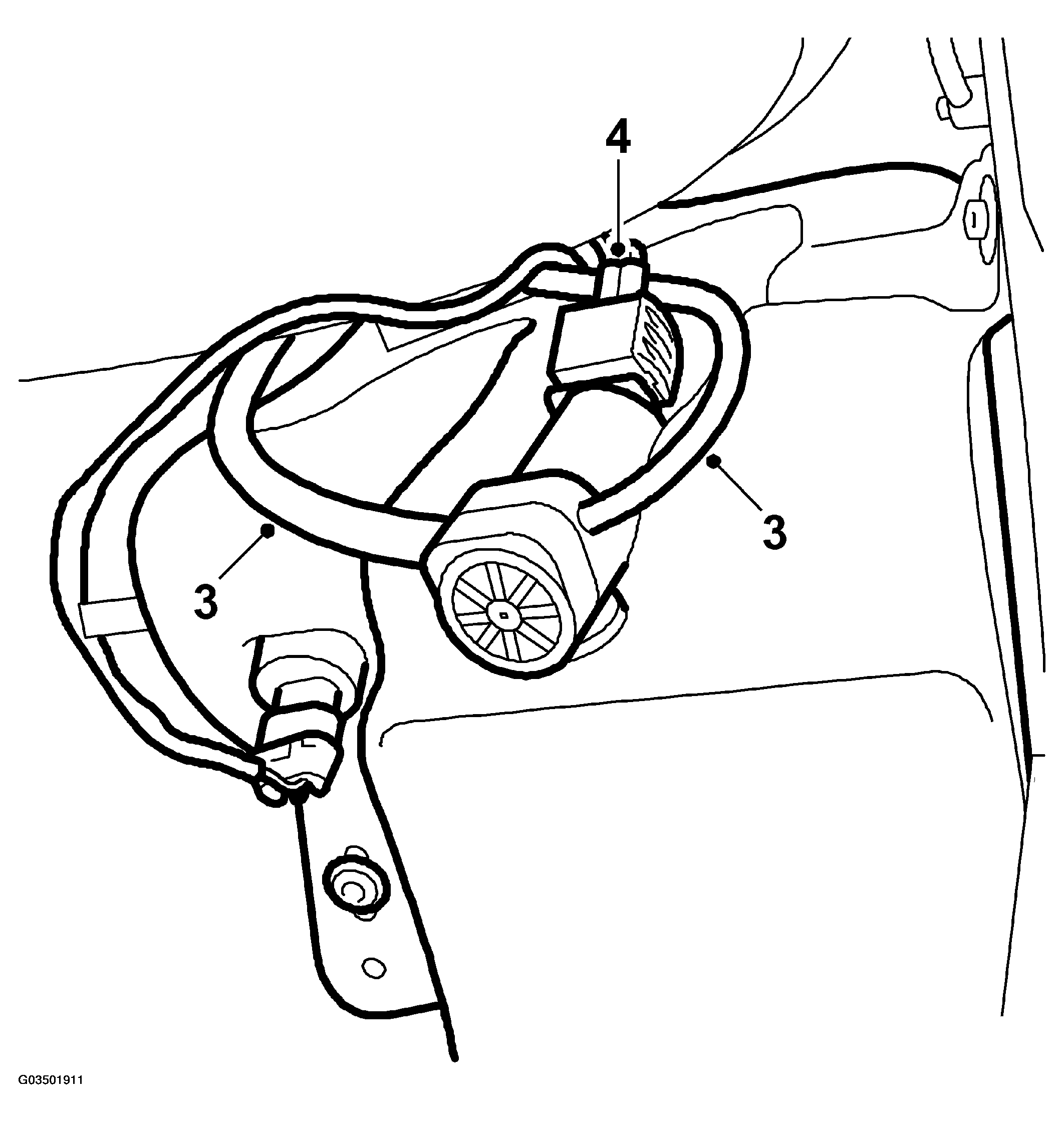

Fig 1: Illustration For Steps 3-4
G03501911
  1. Drain the washer fluid reservoir.
  2. Raise the car and remove the wing liner at the front (3 screws).
  3. Detach the hoses at the pump and pull the pump up to remove it from the washer fluid reservoir.
  4. Unplug the connector.
