Washer pump: Refitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

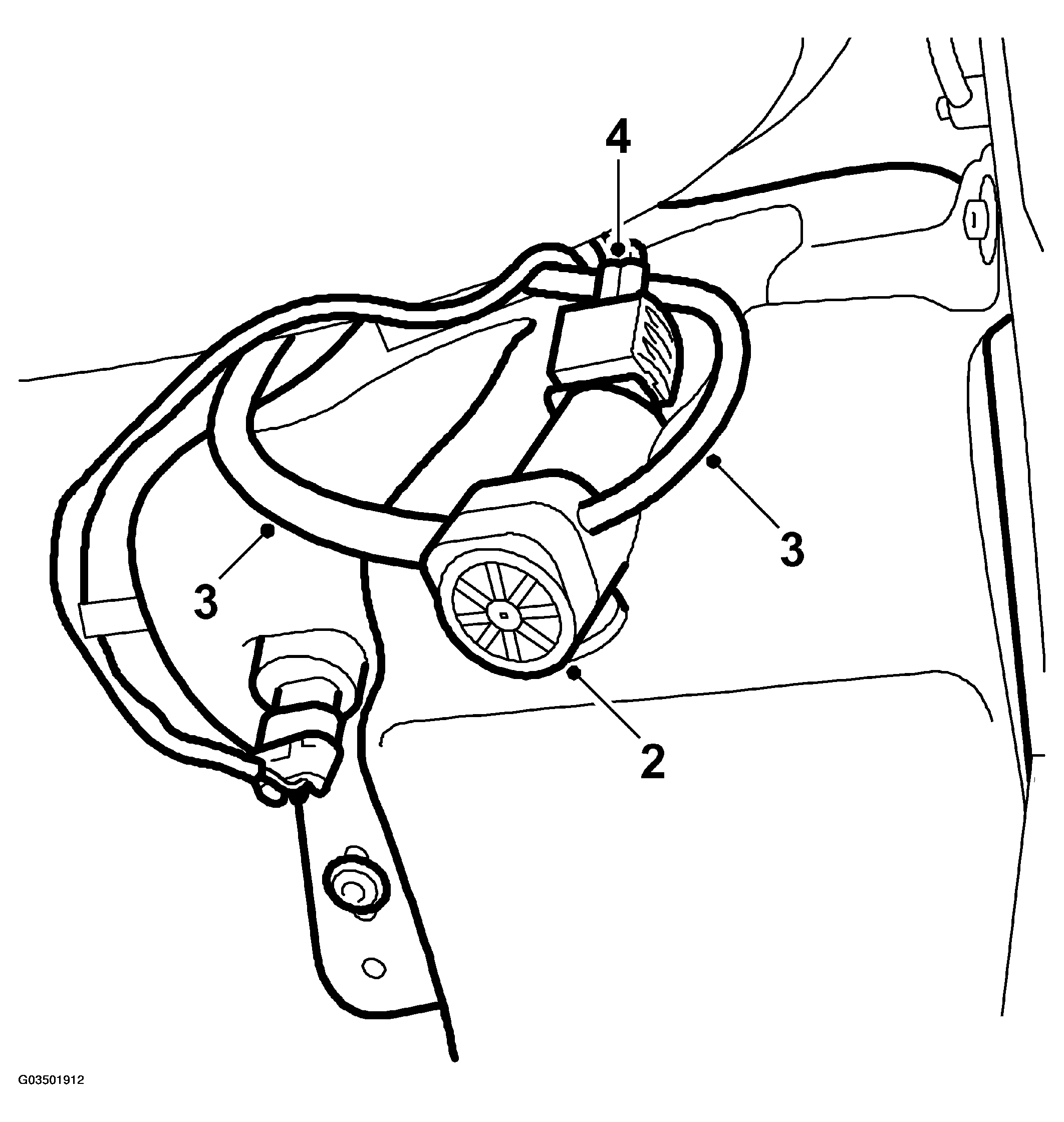

Fig 1: Illustration For Steps 2-4
G03501912
  1. Plug in the connector.
  2. Press the pump into the washer fluid reservoir.
  3. Reconnect the hoses.
  4. Refit the wing liner (3 screws).
  5. Lower the car.
  6. Fill the washer fluid reservoir.
