Washer hose, rear window: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that hold the loudspeaker grille in place.

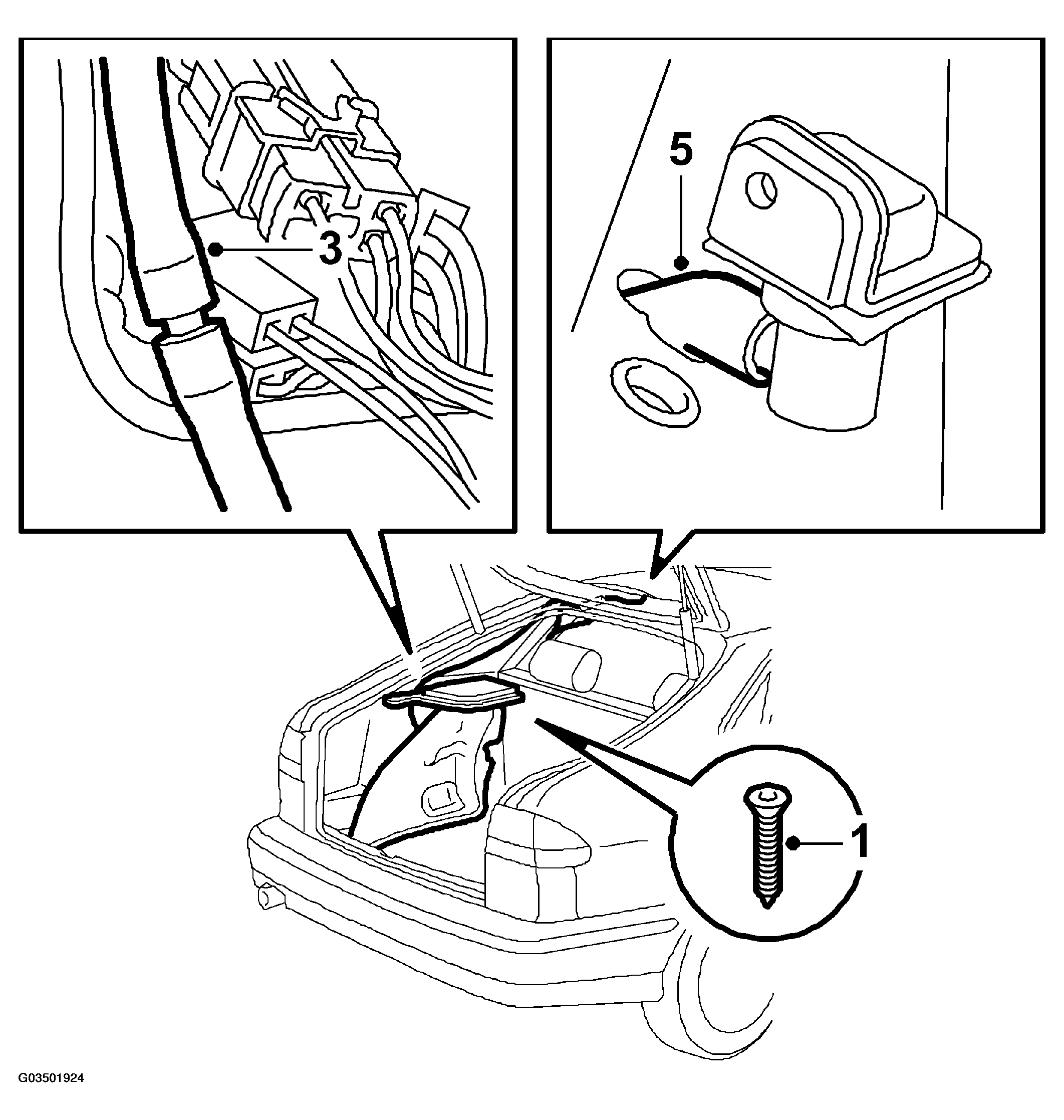

    Fig 1: Illustration For Steps 1,3,5
    G03501924
  2. Remove the trim on the left-hand side of the boot and the C-pillar.
  3. Detach the soft hose from the hard hose.
  4. Remove the high-level brake light.
  5. Remove the nozzle from the washer hose by waggling the hose and pulling it upwards.
  6. Remove the hose from the clips in the C-pillar.

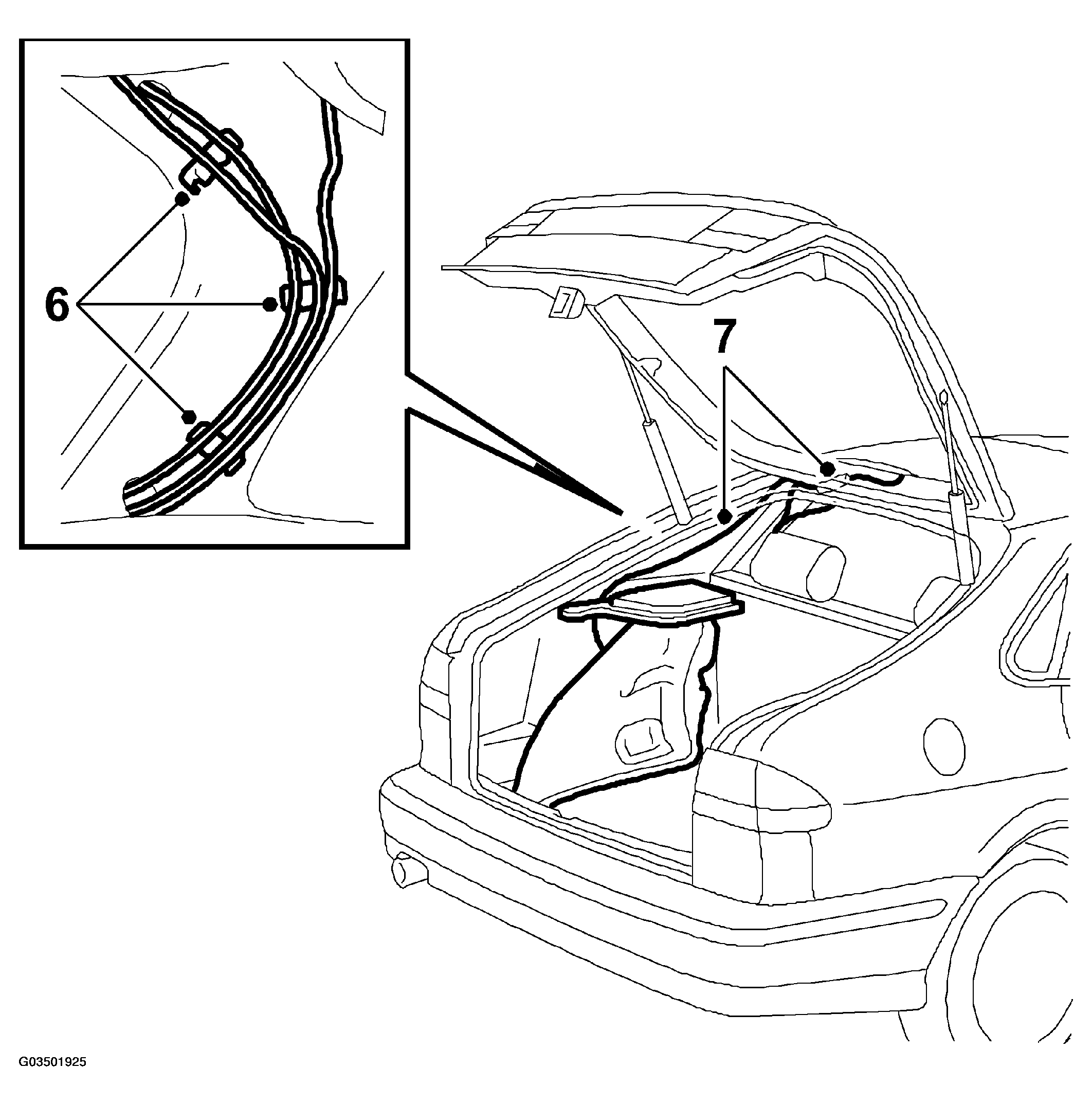

    Fig 2: Illustration For Steps 6-7
    G03501925
  7. Detach the rubber bushing from the boot lid and remove the hose.
