Washer hose, rear window: Refitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

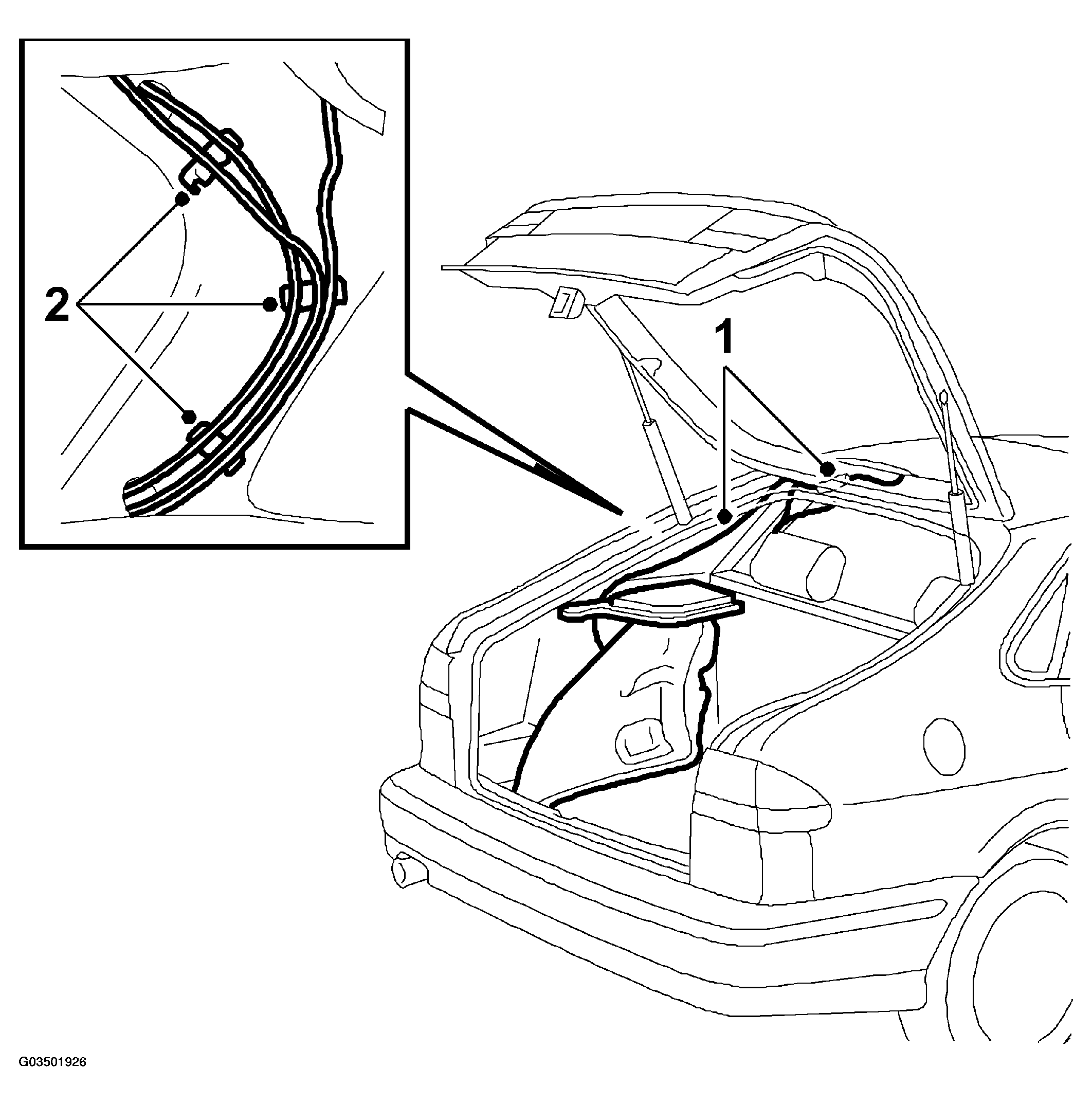

Fig 1: Illustration For Steps 1-2
G03501926
  1. Thread the hose through the rubber bushing in the boot lid and refit the bushing.
  2. Refit the hose on to the clips in the C-pillar.
  3. Refit and press the nozzle into place on the washer hose.

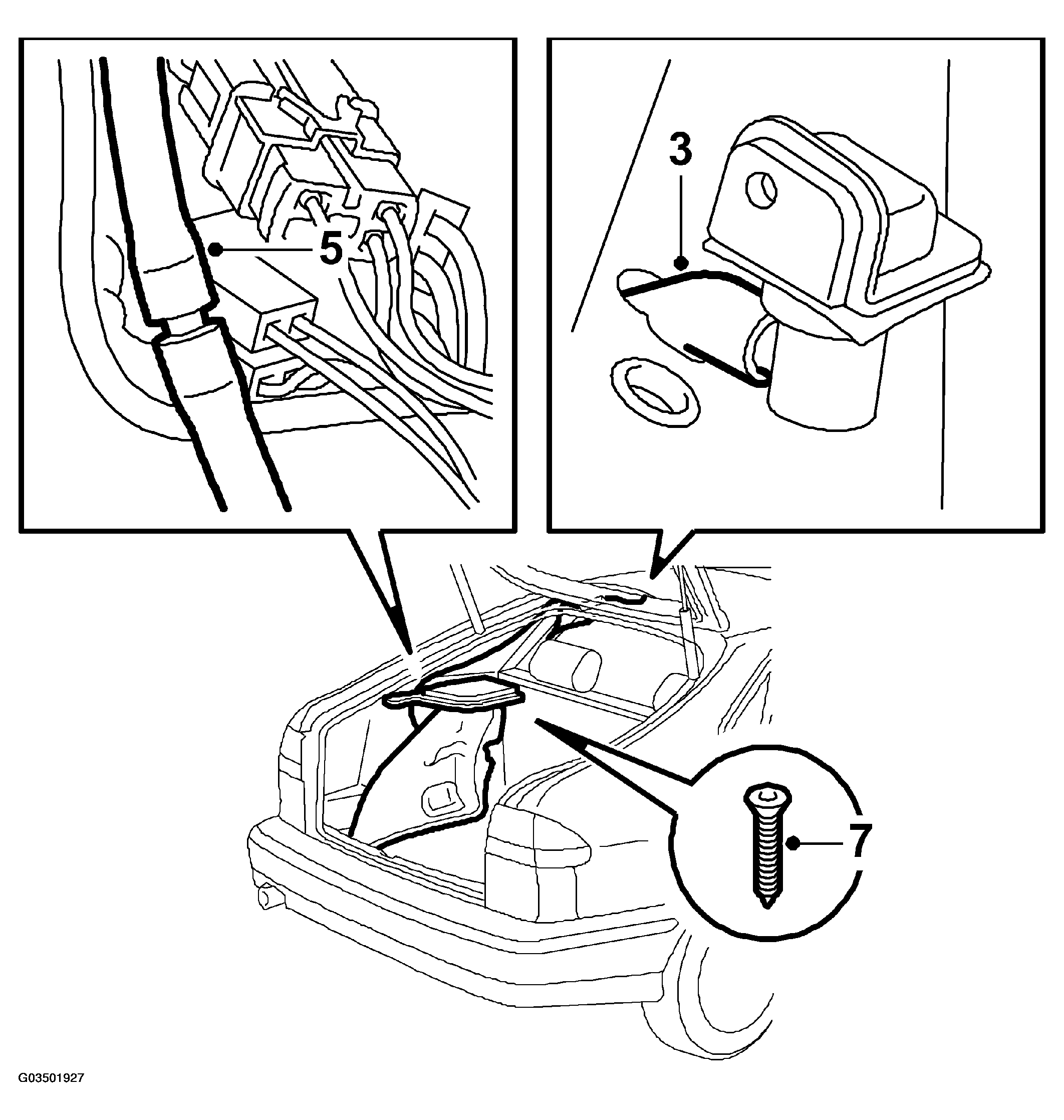

    Fig 2: Illustration For Steps 3,5,7
    G03501927
  4. Fit the high-level brake light
  5. Reconnect the soft hose on to the hard hose.
  6. Refit the trim on to the left-hand side of the boot and the C-pillar.
  7. Refit the screws that hold the loudspeaker grille in place.
