Washer hose, headlamps: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the direction indicators. See LAMP, FRONT LEFT DIRECTION INDICATOR (27FL) and LAMP, FRONT RIGHT DIRECTION INDICATOR (27FR) . Remove headlamps. See LAMP, MAIN BEAM, LH (11FL) and LAMP, MAIN BEAM, RIGHT (11FR) .

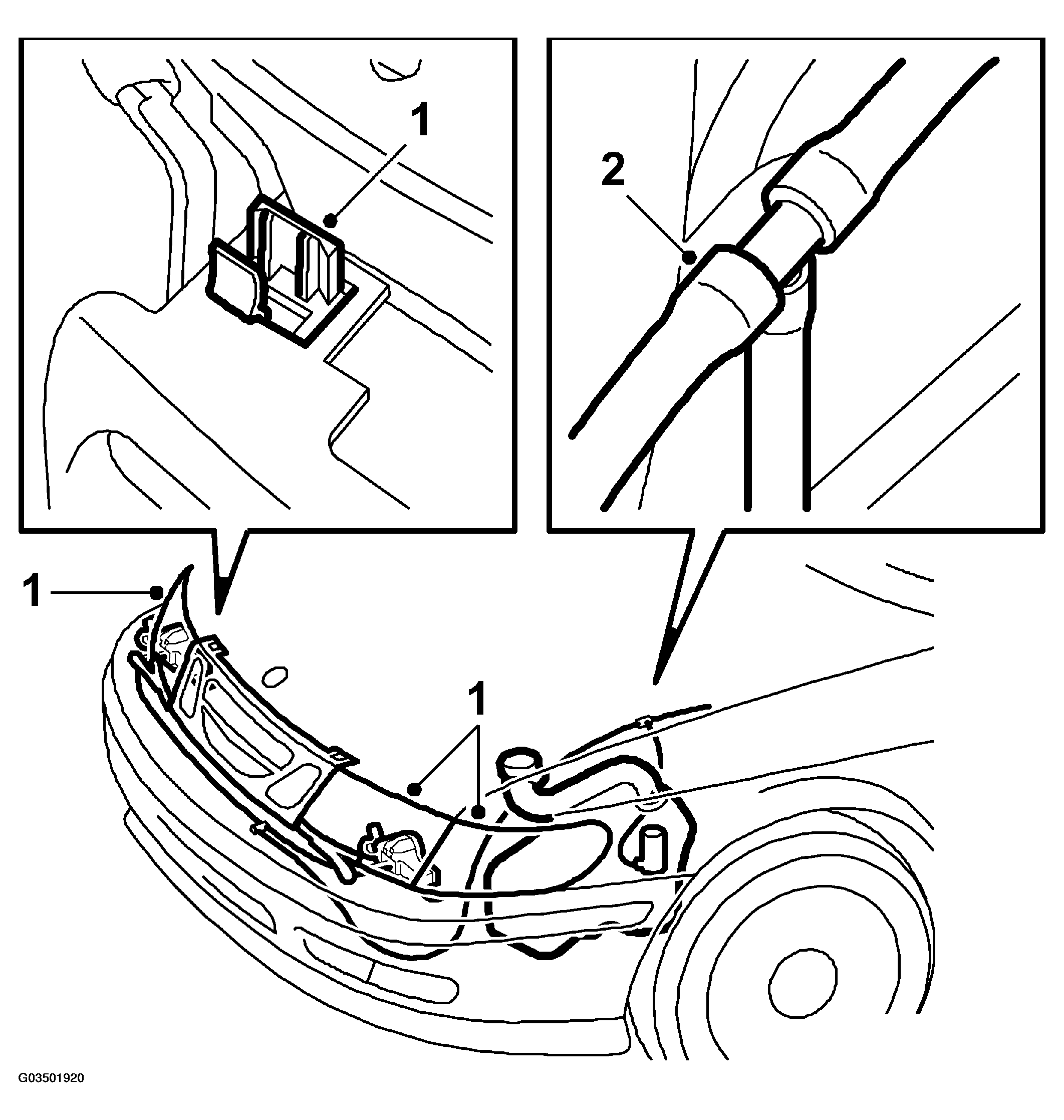

    2. Fig 1: Illustration For Steps 1-2
    G03501920
  2. Remove the hose from the T-connection.
  3. Remove the hose (2 clips).

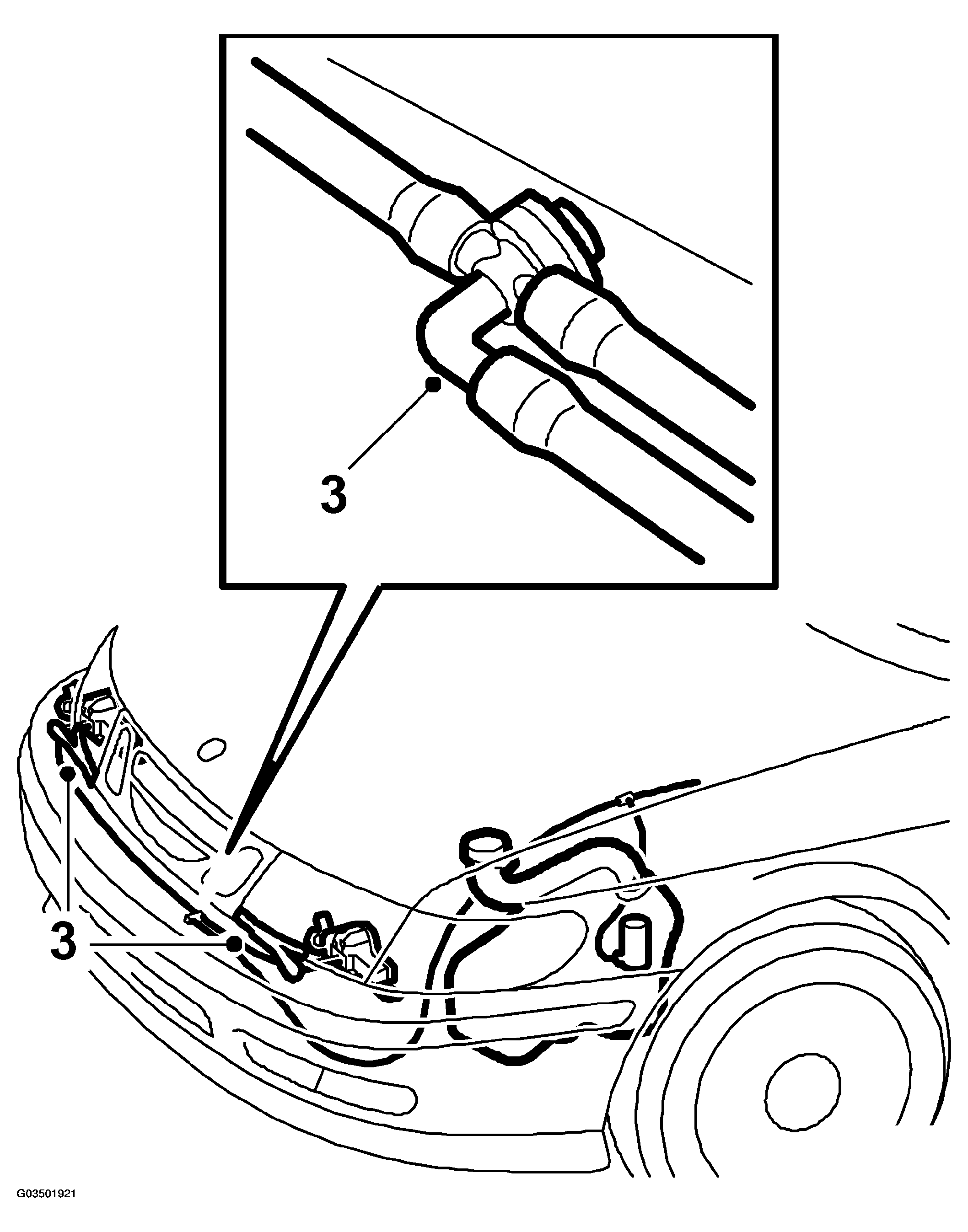

    Fig 2: Illustration For Steps 3
    G03501921
