Washer hose, headlamps: Refitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

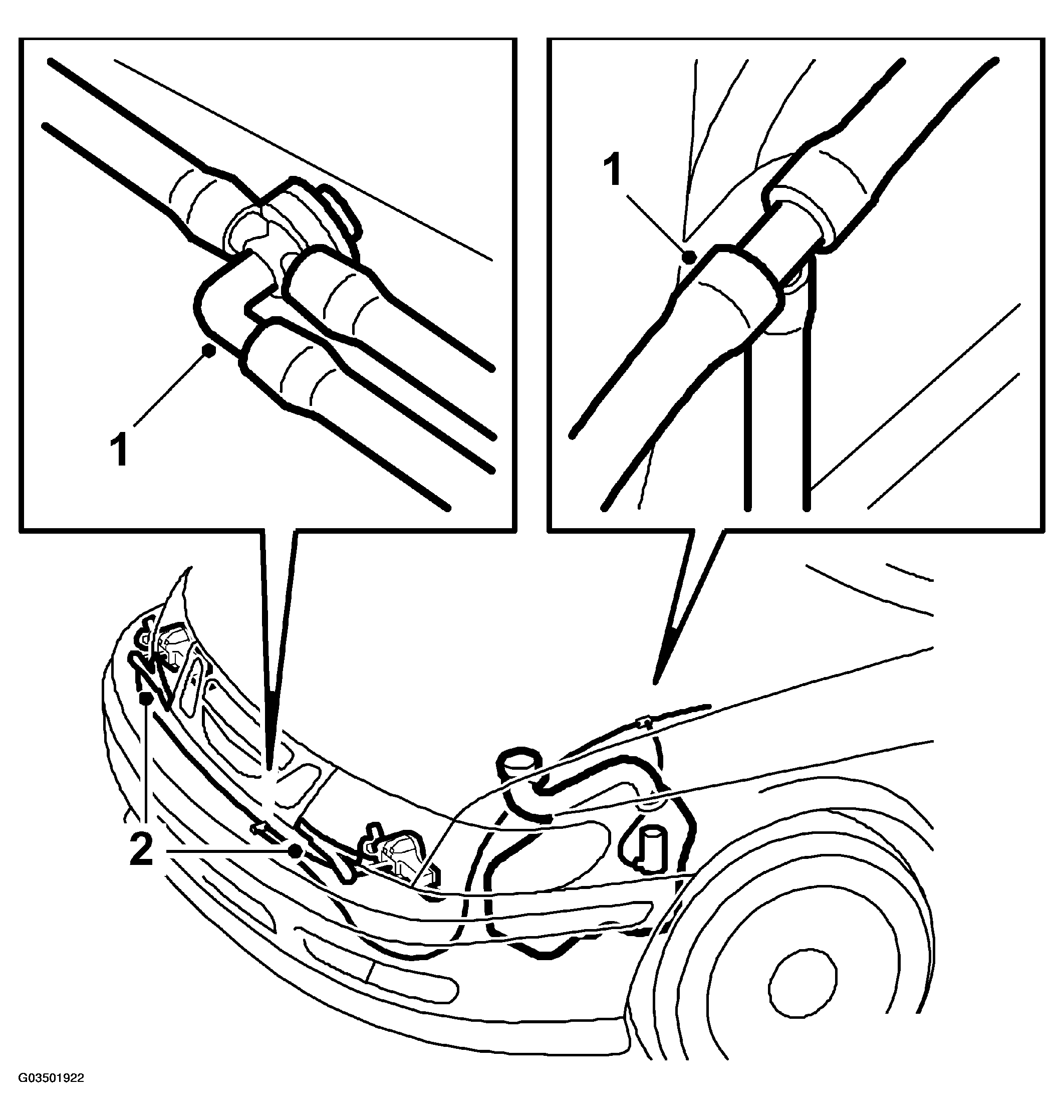

Fig 1: Illustration For Steps 1-2
G03501922
  1. Refit the hose in the same position as it was previously (2 clips).
  2. Connect the hose to the nozzles.
  3. Fit the direction indicators. See LAMP, FRONT LEFT DIRECTION INDICATOR (27FL) and LAMP, FRONT RIGHT DIRECTION INDICATOR (27FR) . Fit headlamps. See LAMP, MAIN BEAM, LH (11FL) and LAMP, MAIN BEAM, RIGHT (11FR) .

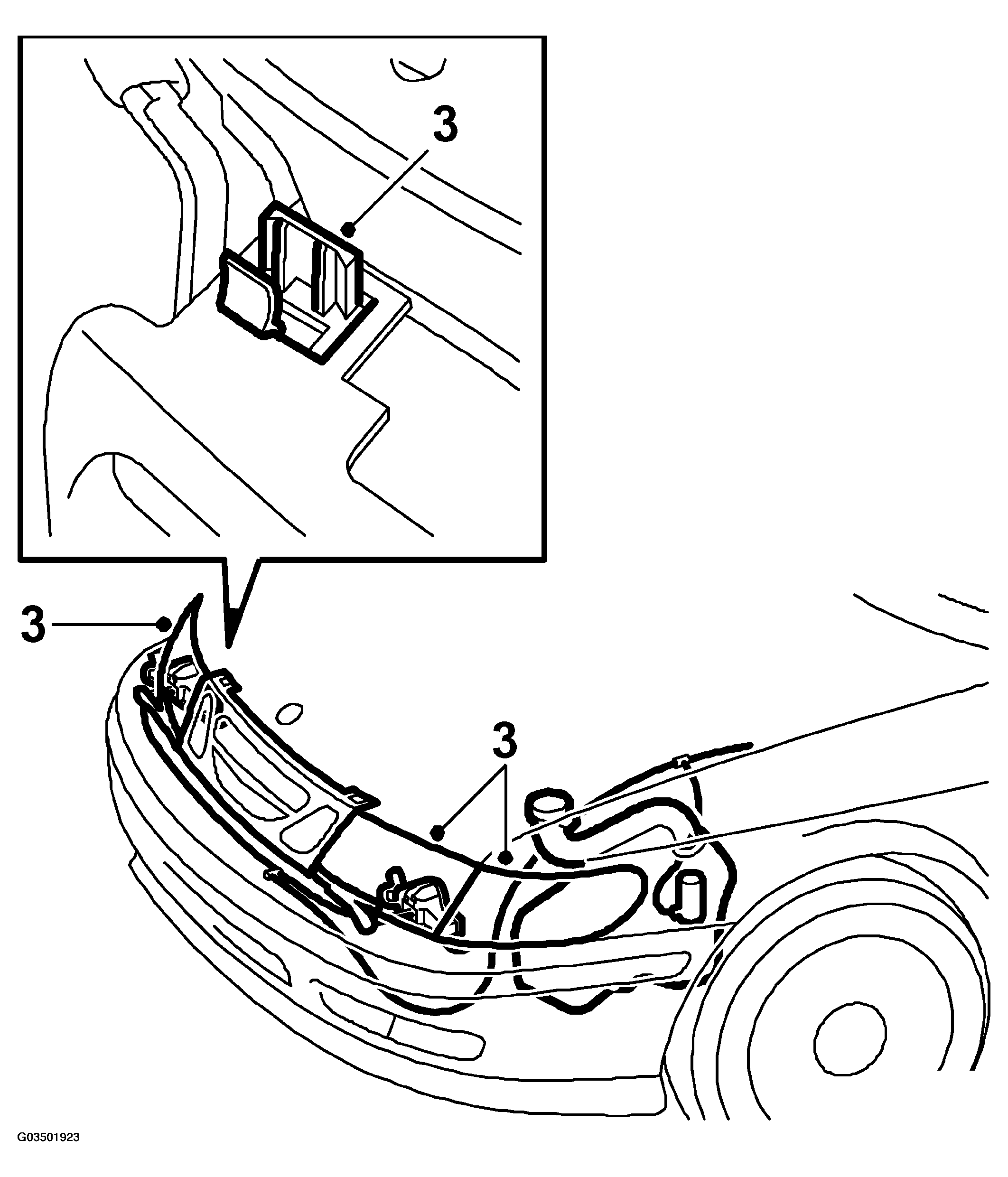

    Fig 2: Illustration For Steps 3
    G03501923
