Washer fluid reservoir: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

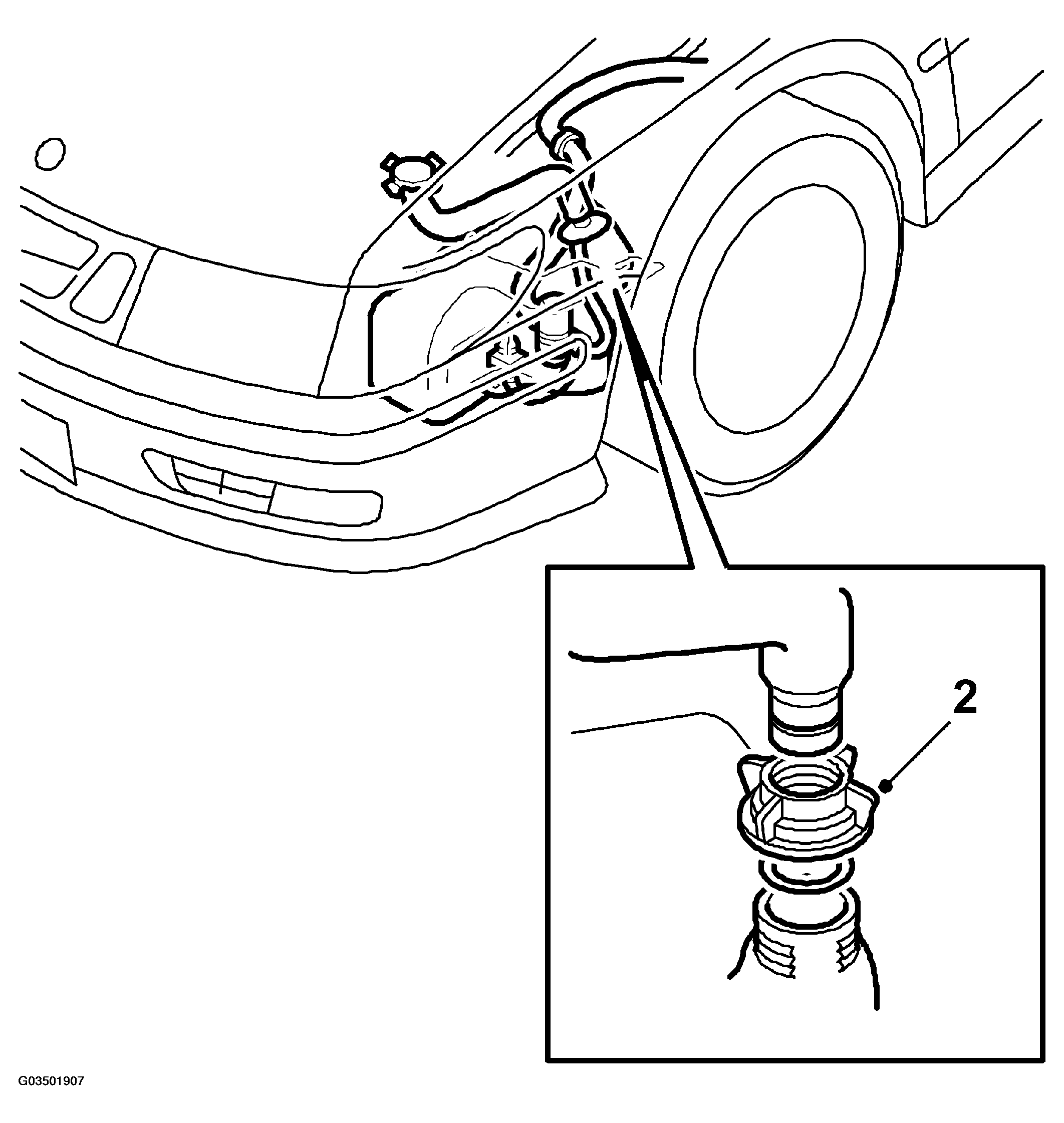

Fig 1: Illustration For Steps 2
G03501907
  1. Empty the reservoir.
  2. Remove the filler pipe and the plastic nut.
  3. Raise the car and remove the wing liner at the front (3 screws).
  4. Remove the pump and the level sensor from the reservoir and let them hang by their respective hoses and leads.

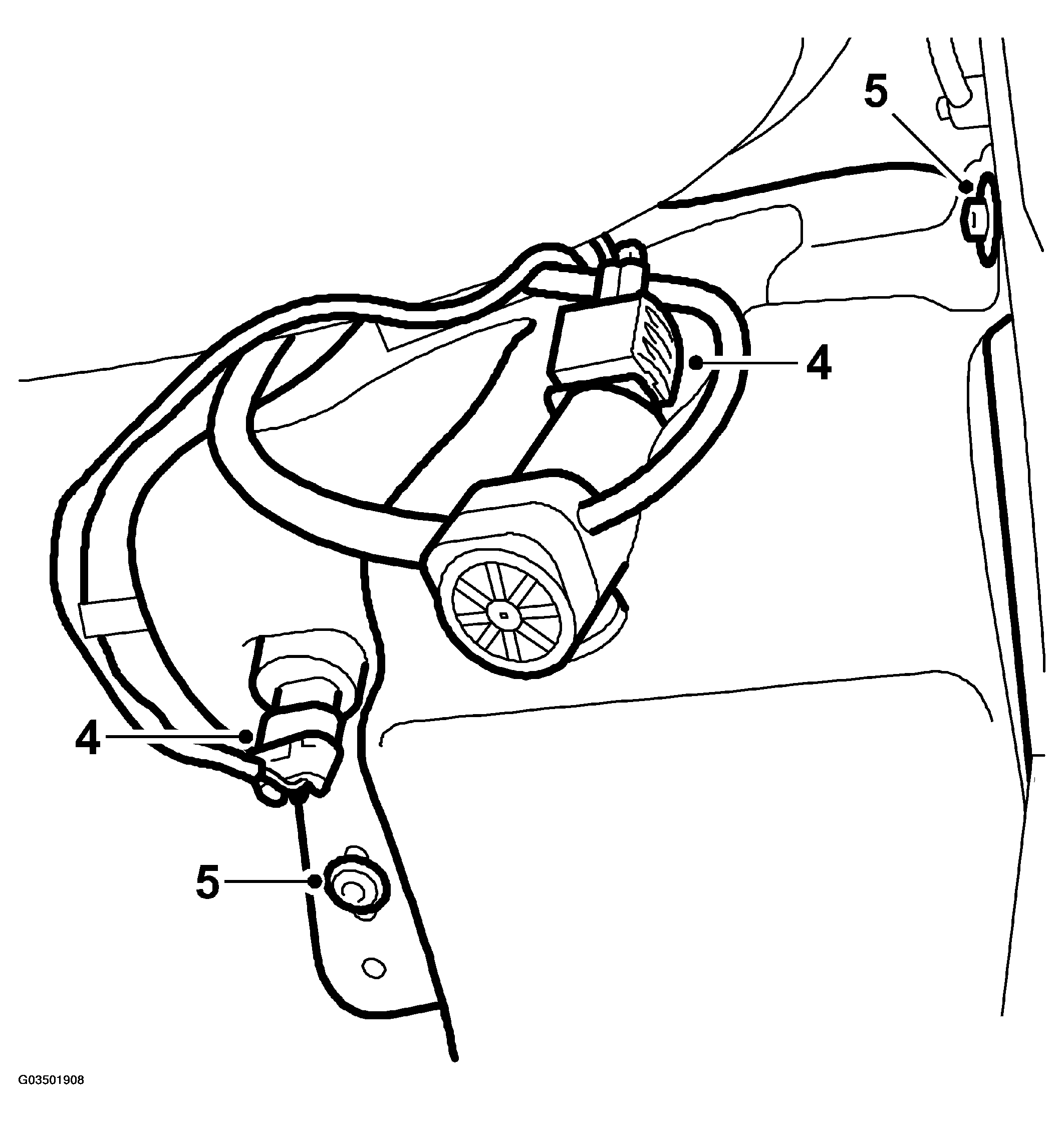

    Fig 2: Illustration For Steps 4-5
    G03501908
  5. Remove the 2 retaining screws from the reservoir and pull the washer fluid reservoir downwards.
