Rear window wiper: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

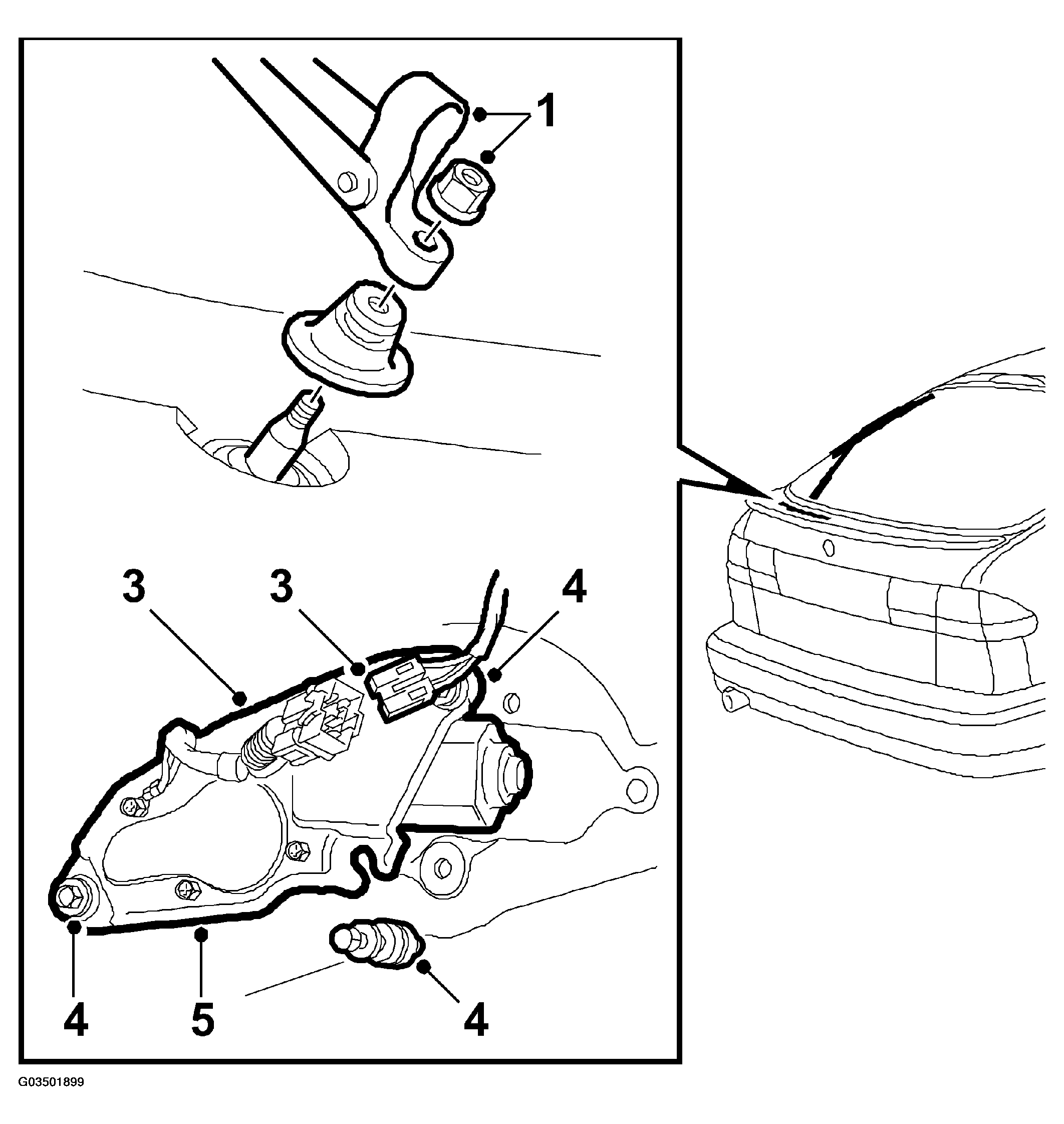

Fig 1: Illustration For Steps 1,3-5
G03501899
  1. Remove the wiper arm by raising the protective cover and removing the nut.
  2. Open the boot and remove the lid trim.
  3. Disconnect the 4-pole connector.
  4. Remove the wiper motor retaining screws.
  5. Remove the motor.
    IMPORTANT: When changing the rear window wiper motor, move the rubber dampers from the old motor to the new one.
