Rear window wiper: Refitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

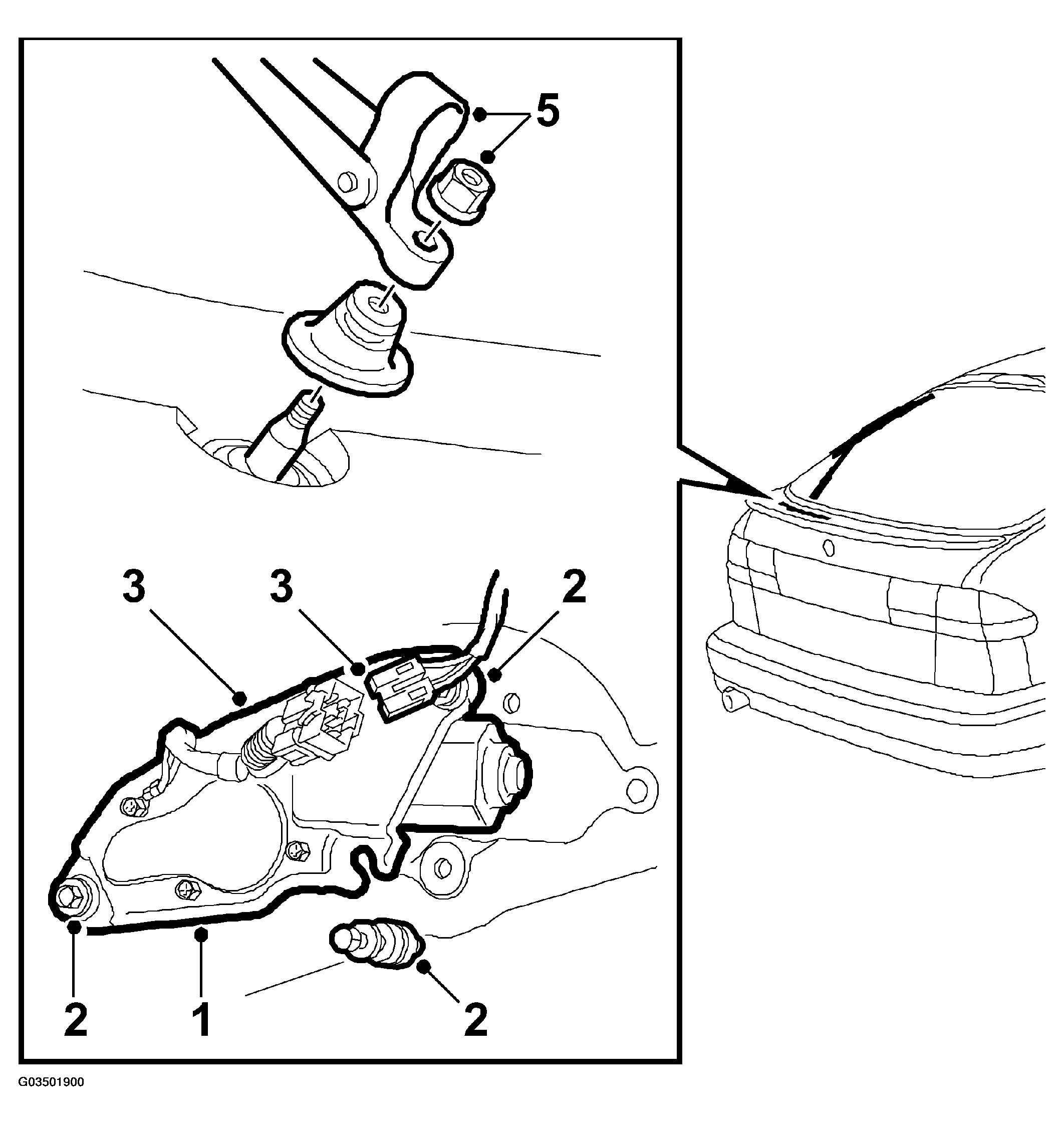

Fig 1: Illustration For Steps 1-3,5
G03501900
  1. Lift the motor into position.
  2. Refit the wiper motor retaining screws.
  3. Reconnect the 4 -pole connector.
  4. Refit the lid trim.
  5. Fit the wiper arm and close the protective cover.
