Headlamp wipers: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

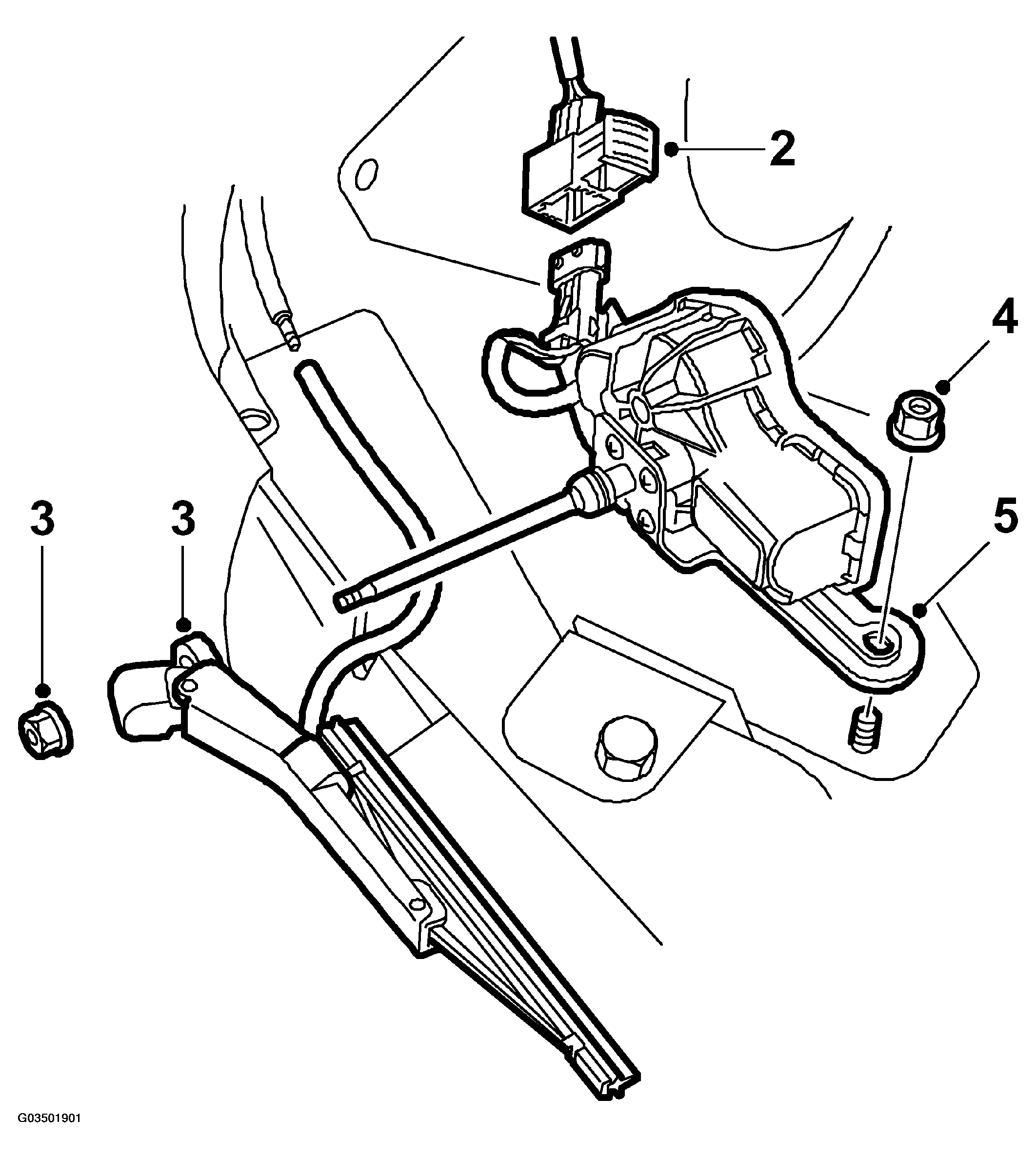

Fig 1: Illustration For Steps 2-5
G03501901
  1. Remove the direction indicators. See LAMP, FRONT LEFT DIRECTION INDICATOR (27FL) and LAMP, FRONT RIGHT DIRECTION INDICATOR (27FR) .
  2. Unplug the connector.
  3. Remove the wiper arm and blade from the motor.
  4. Remove the wiper motor retaining screws.
  5. Remove the motor.
