Headlamp wipers: Refitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

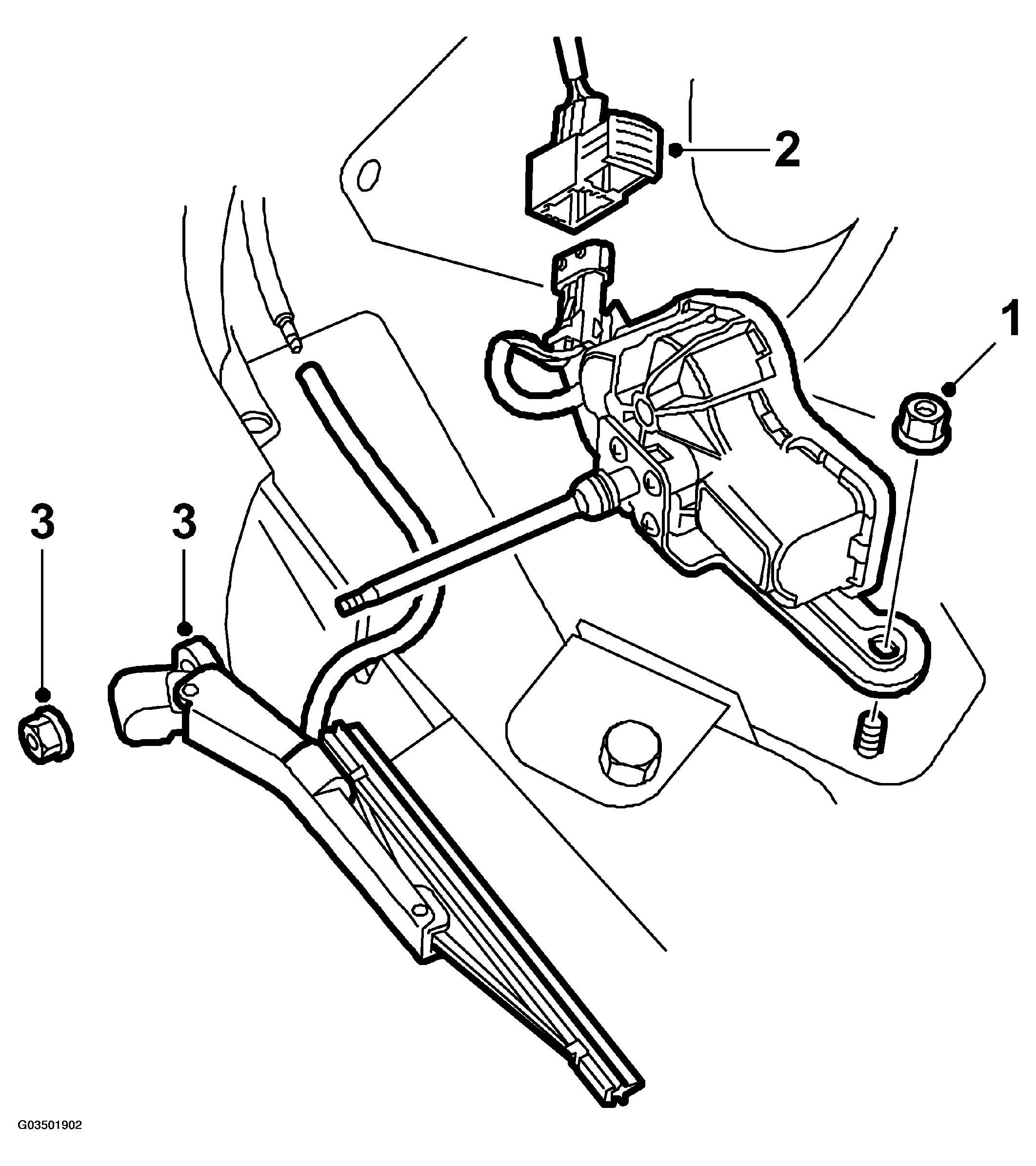

Fig 1: Illustration For Steps 1-3
G03501902
  1. Place the wiper motor in position and refit the retaining screws.
  2. Plug in the connector.
  3. Refit the wiper arm and blade on to the motor.
  4. Fit the direction indicators. See LAMP, FRONT LEFT DIRECTION INDICATOR (27FL) and LAMP, FRONT RIGHT DIRECTION INDICATOR (27FR) . Install headlamps. See LAMP, MAIN BEAM, LH (11FL) . LAMP, MAIN BEAM, RIGHT (11FR)
