Interior lighting and reading lamps 3D/5D: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

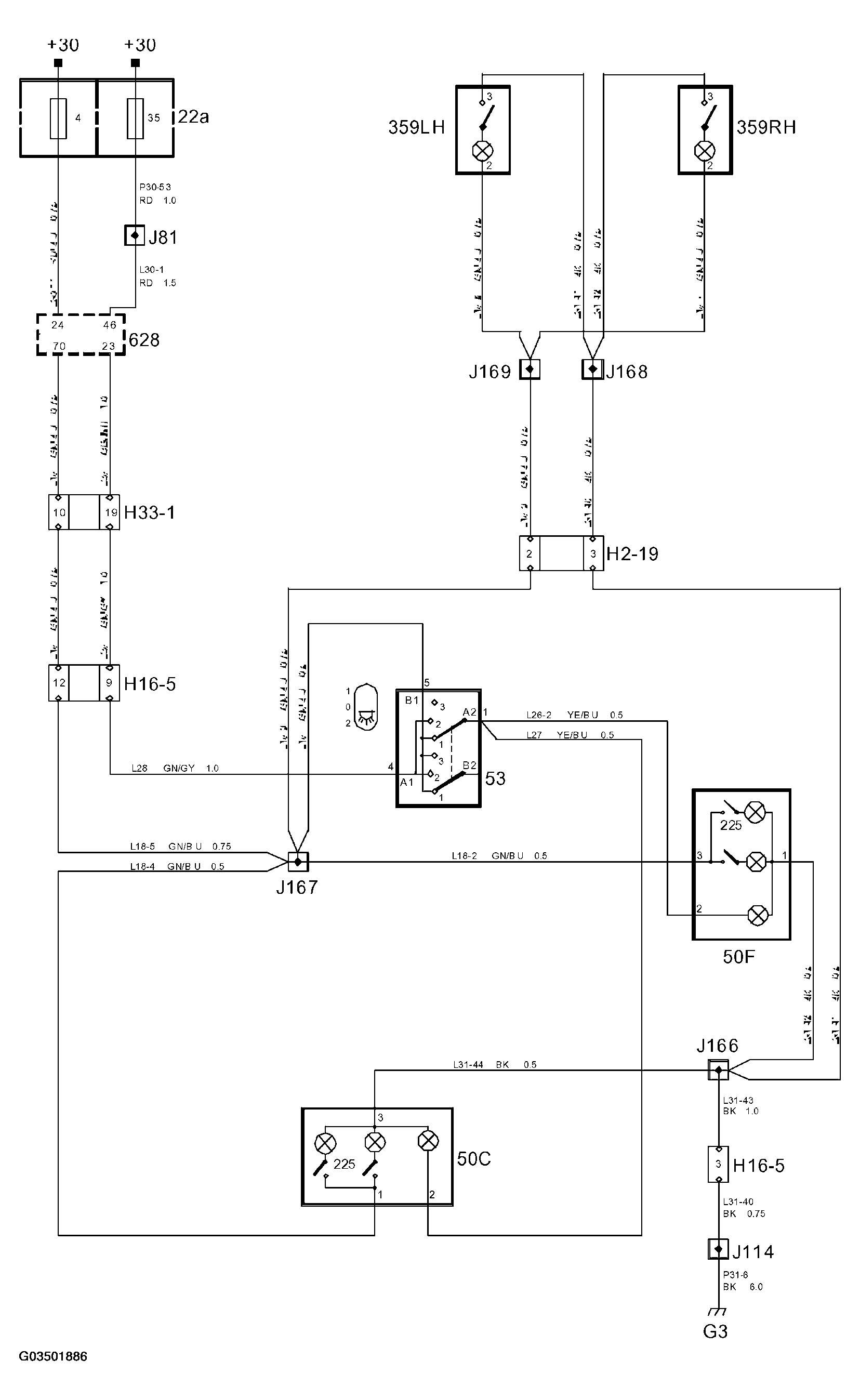

Fig 1: Wiring Diagram - Interior Lighting And Reading Lamps 3D/5D
G03501886Courtesy of SAAB-SCANIA OF AMERICA, INC.
