System Overview, Components Connected To K Lead, PSG 16

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

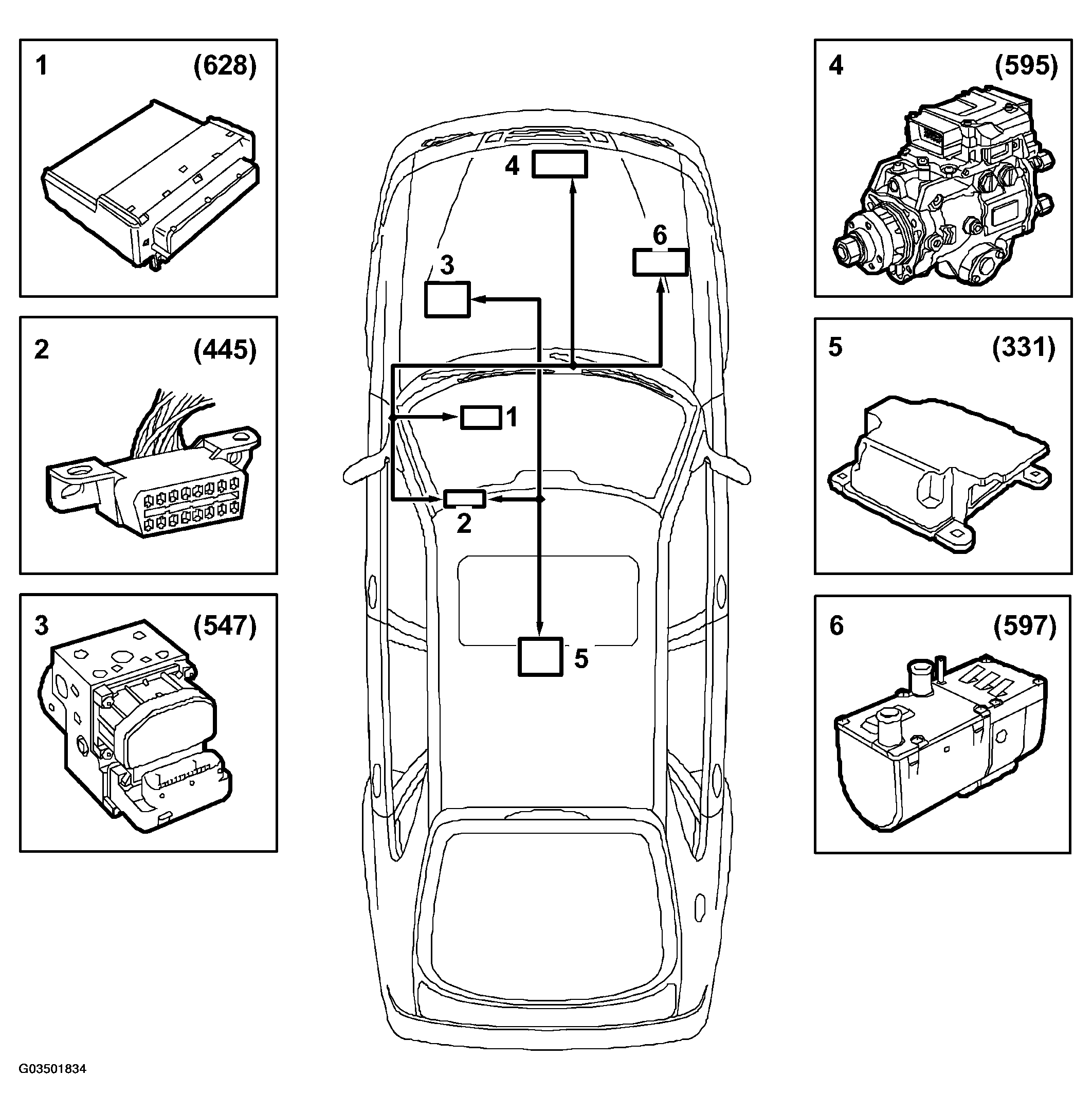

Fig 1: Identifying Components Connected To K Lead, PSG 16
G03501834Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Dashboard Integrated Central Electronics (DICE) (628)
  2. Data link connector (H16-5/445)
  3. Anti-lock Brake System (ABS) (547)
  4. PSG 16, diesel engine management system (595)
  5. Airbag (SRS) (331)
  6. Diesel Additional Heater (DAH) (597)
