System Overview, Components Connected To A Bus, Cars With EDC 15 Engine Management System

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

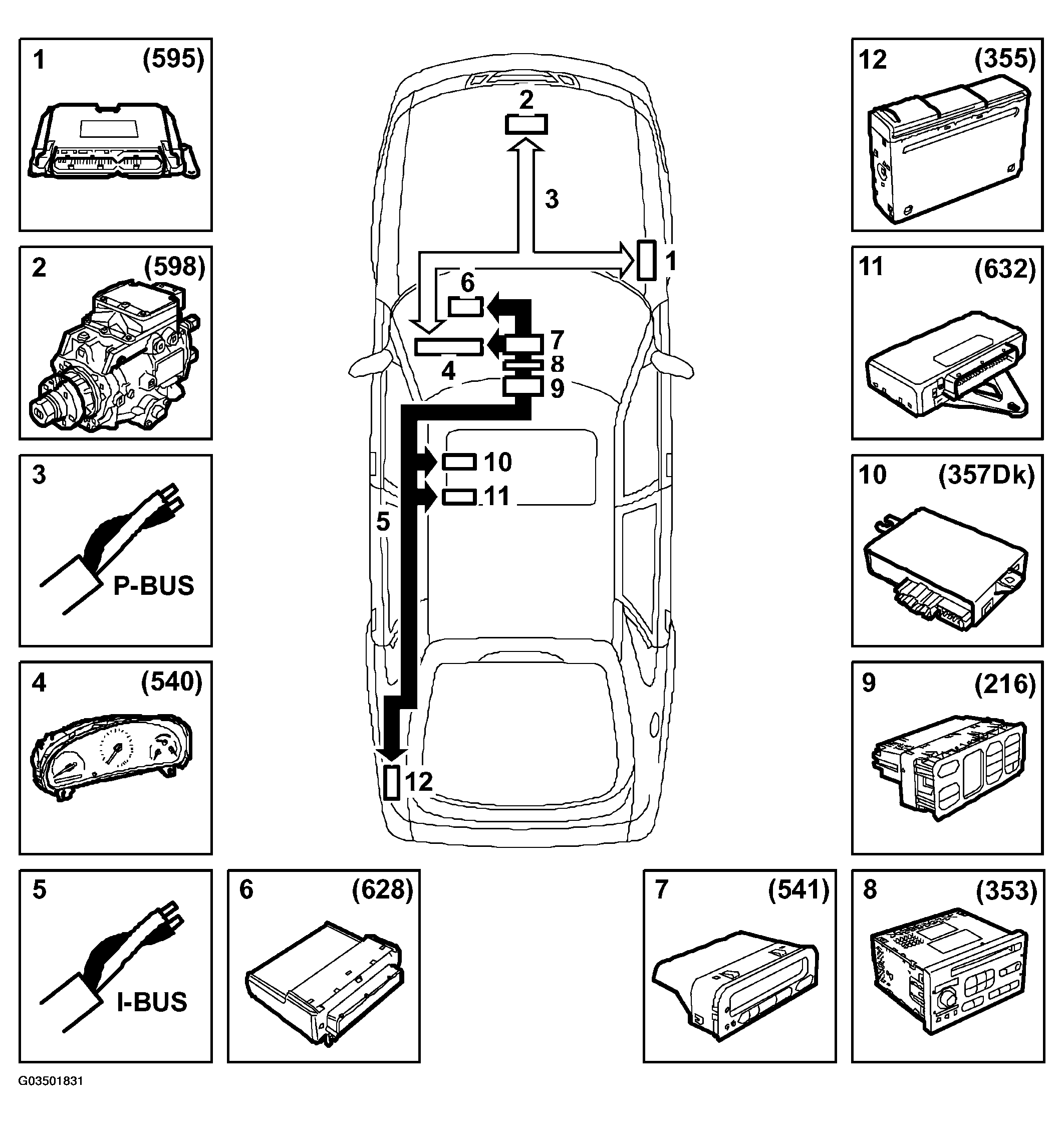

Fig 1: Identifying Components Connected To Bus, Cars With EDC 15 Engine Management System
G03501831Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Electronic Diesel Control (EDC 15) (595)
  2. Diesel pump (598)
  3. P-bus (Powertrain bus)
  4. Main Instrument Unit (MIU) (540)
  5. I-bus (Instrument bus)
  6. Dashboard Integrated Central Electronics (DICE) (628)
  7. Saab Information Display (SID) (541)
  8. Audio system, main unit (353)
  9. Automatic Climate Control (ACC) (216)
  10. Power Seat Memory (PSM) (357Dk)
  11. Theft Warning & Integrated Central Electronics (TWICE) (632)
  12. CD changer (CDC) (355)
