Light And Ignition Key Warnings

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

An acoustic warning signal is activated if the main lights are on when the driver's door is open and the parking lights are on and the key has been removed from the ignition switch.

An acoustic warning signal is activated if the key is still in the ignition switch when the driver's door is open and the ignition switch is in the LOCK or OFF position.

If the driver's door is opened, DICE will receive information via the bus from TWICE (OPEN/CLOSED). DICE sends information via the bus to SID (ACOUSTIC SIGNAL) and a PLING sound is heard. The maximum duration of the acoustic signal is 10 minutes.

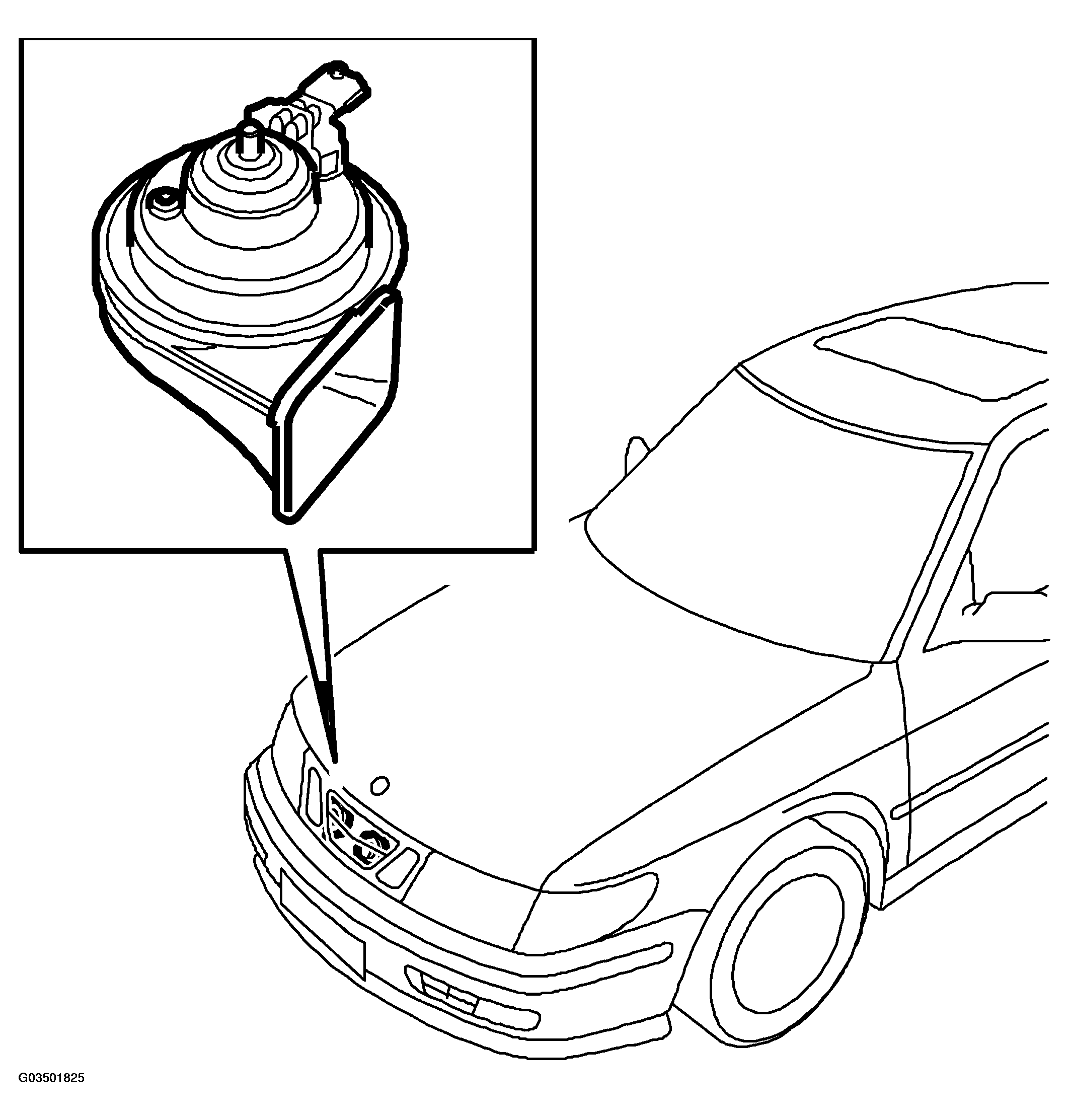

Fig 1: Locating Horn
G03501825Courtesy of SAAB-SCANIA OF AMERICA, INC.
