Fault Symptoms

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Interior lighting malfunctioning

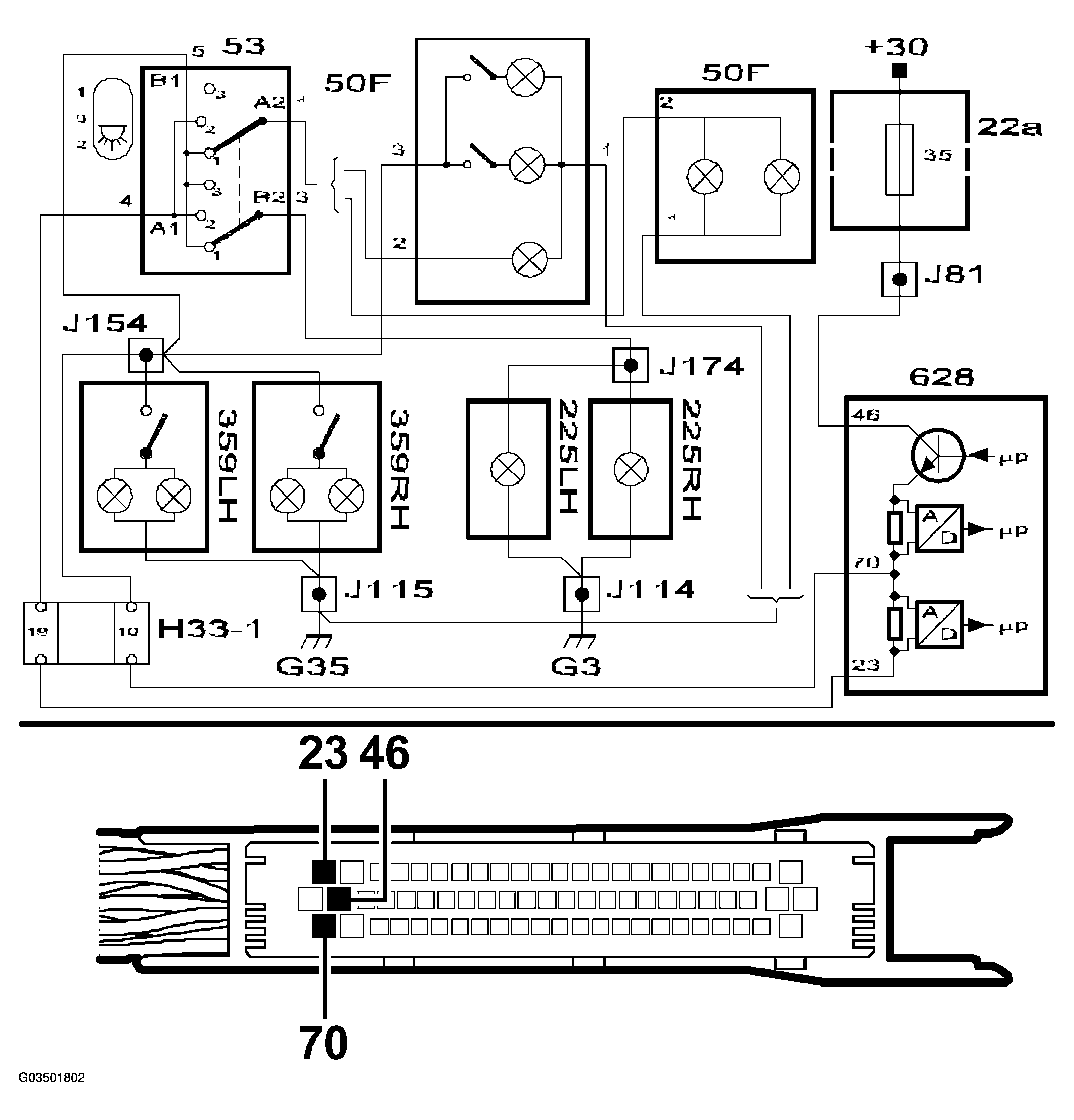

Fig 1: Identifying Interior Lighting Circuit Diagram (1 Of 3)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

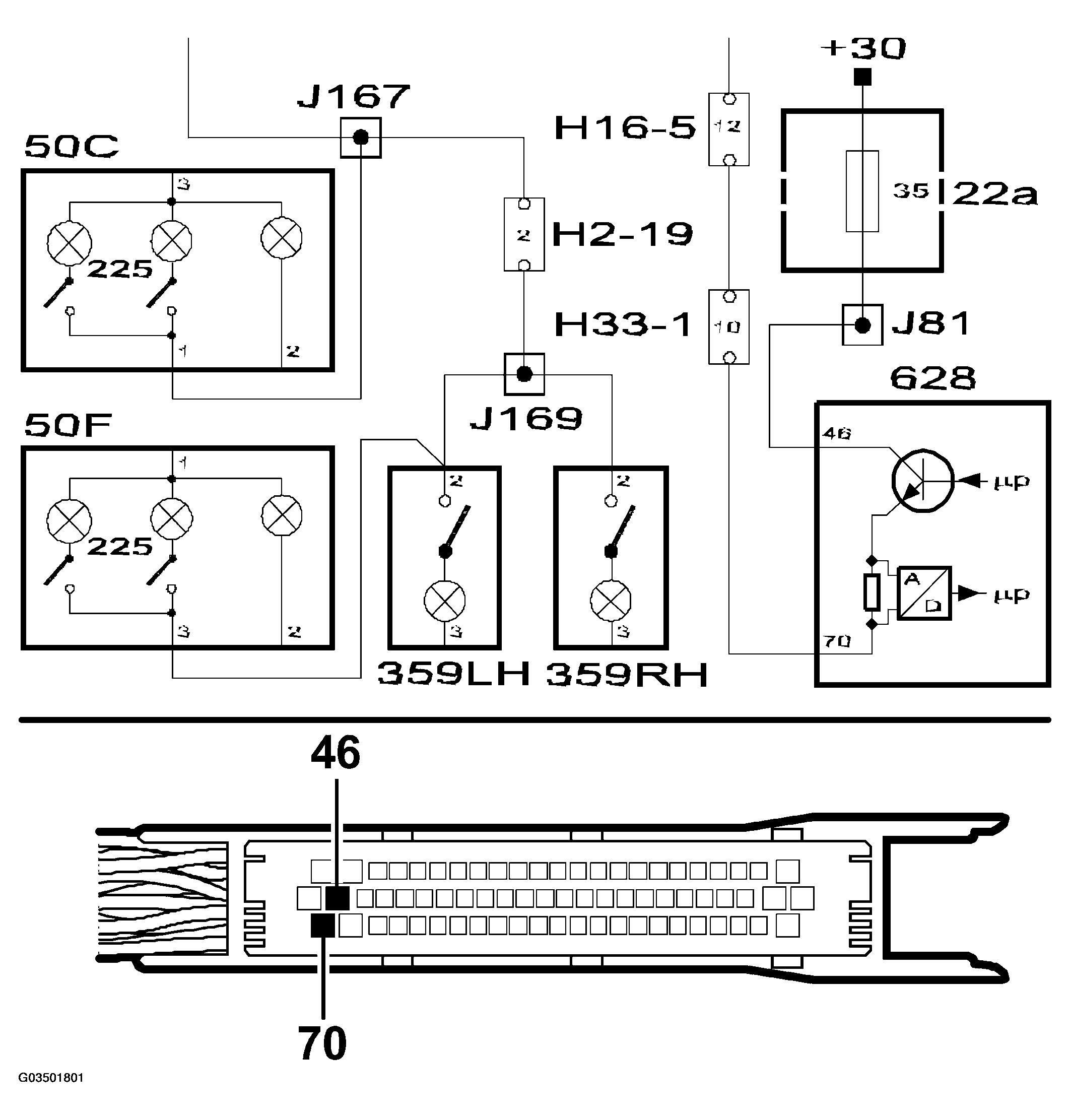

Fig 2: Identifying Interior Lighting Circuit Diagram (2 Of 3)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

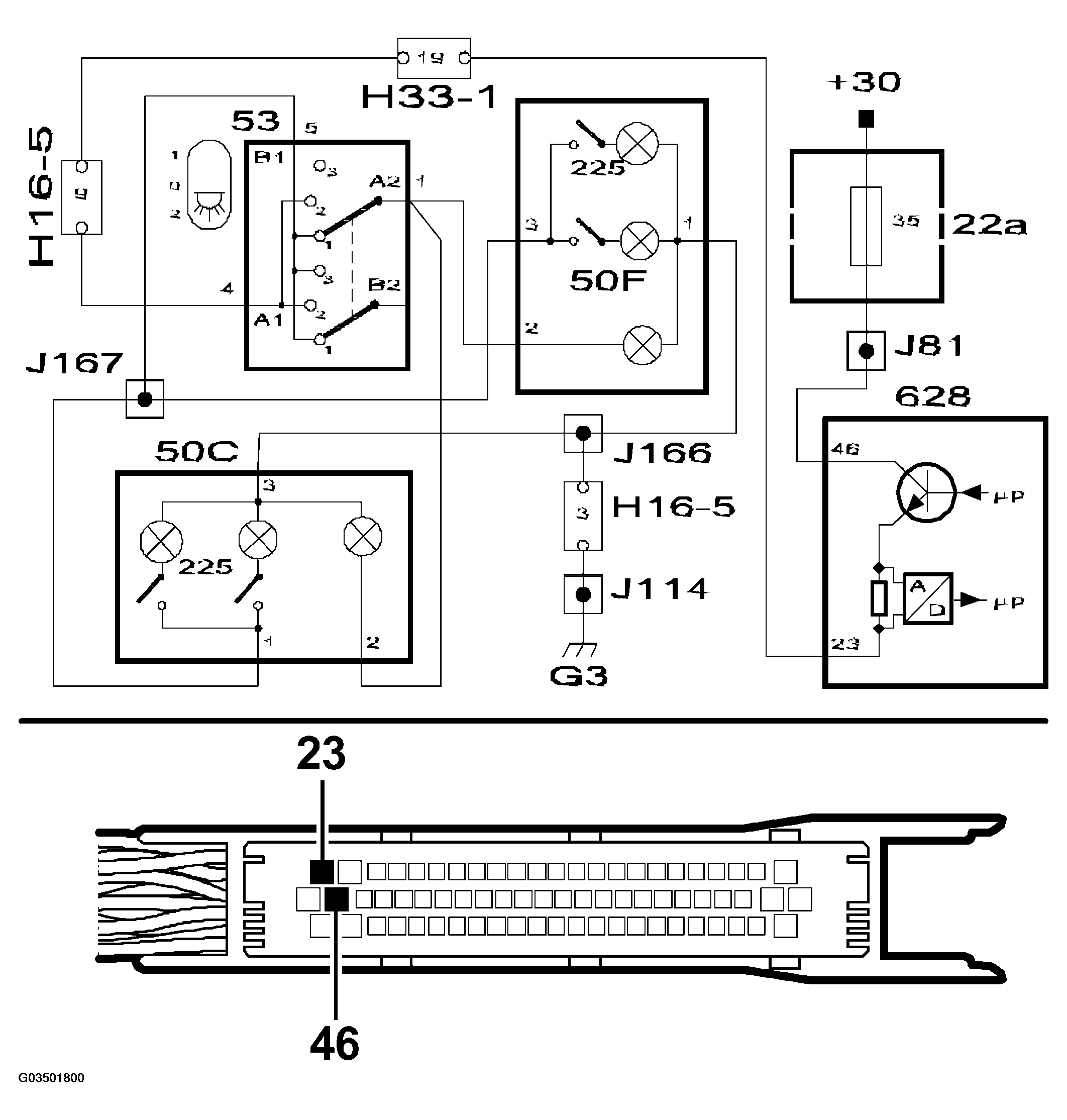

Fig 3: Identifying Interior Lighting Circuit Diagram (3 Of 3)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
