Fault Symptoms

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Interior lighting not working.

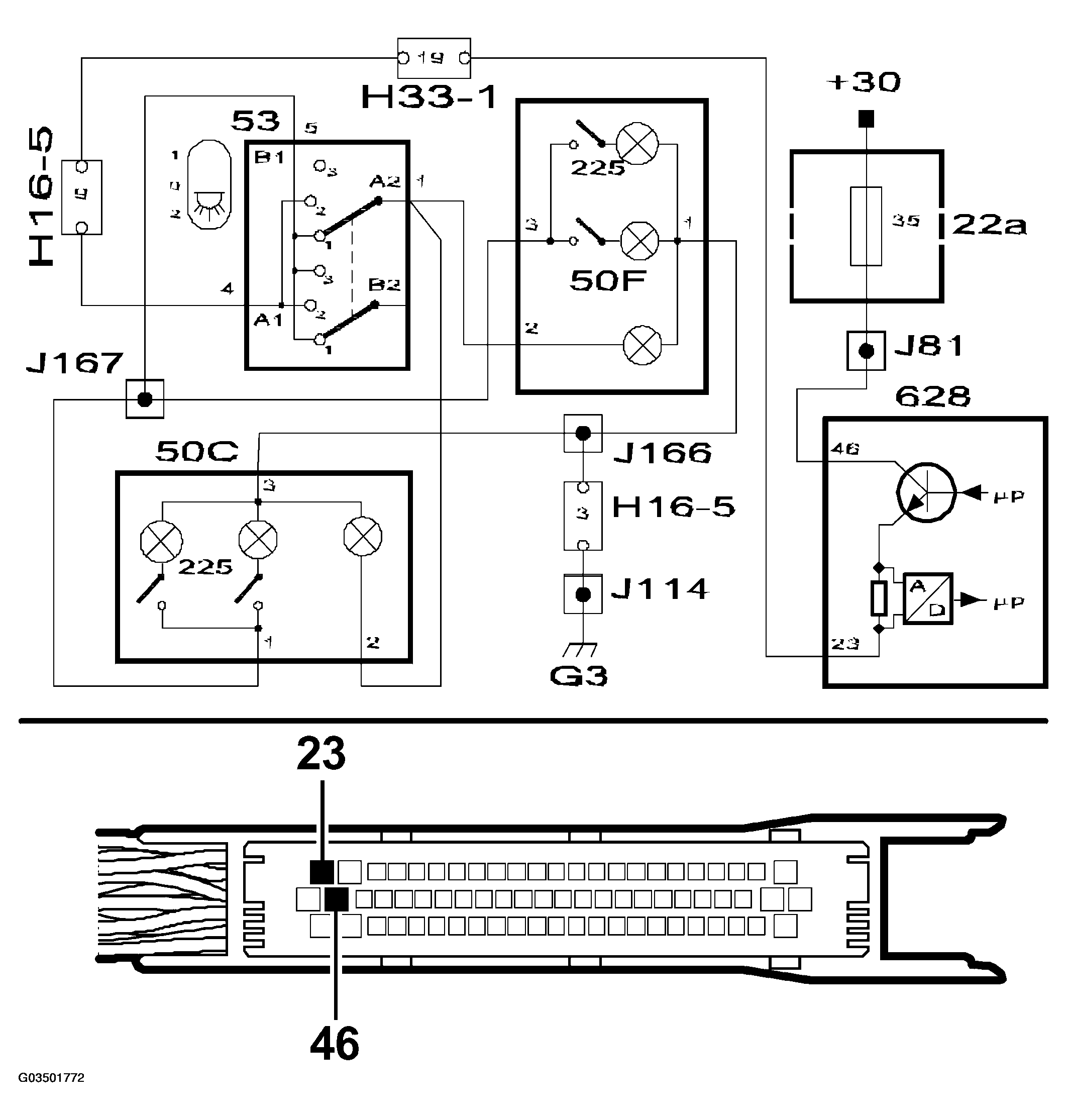

Fig 1: Interior Lighting Circuit Diagram (1 Of 3)
G03501772Courtesy of SAAB-SCANIA OF AMERICA, INC.

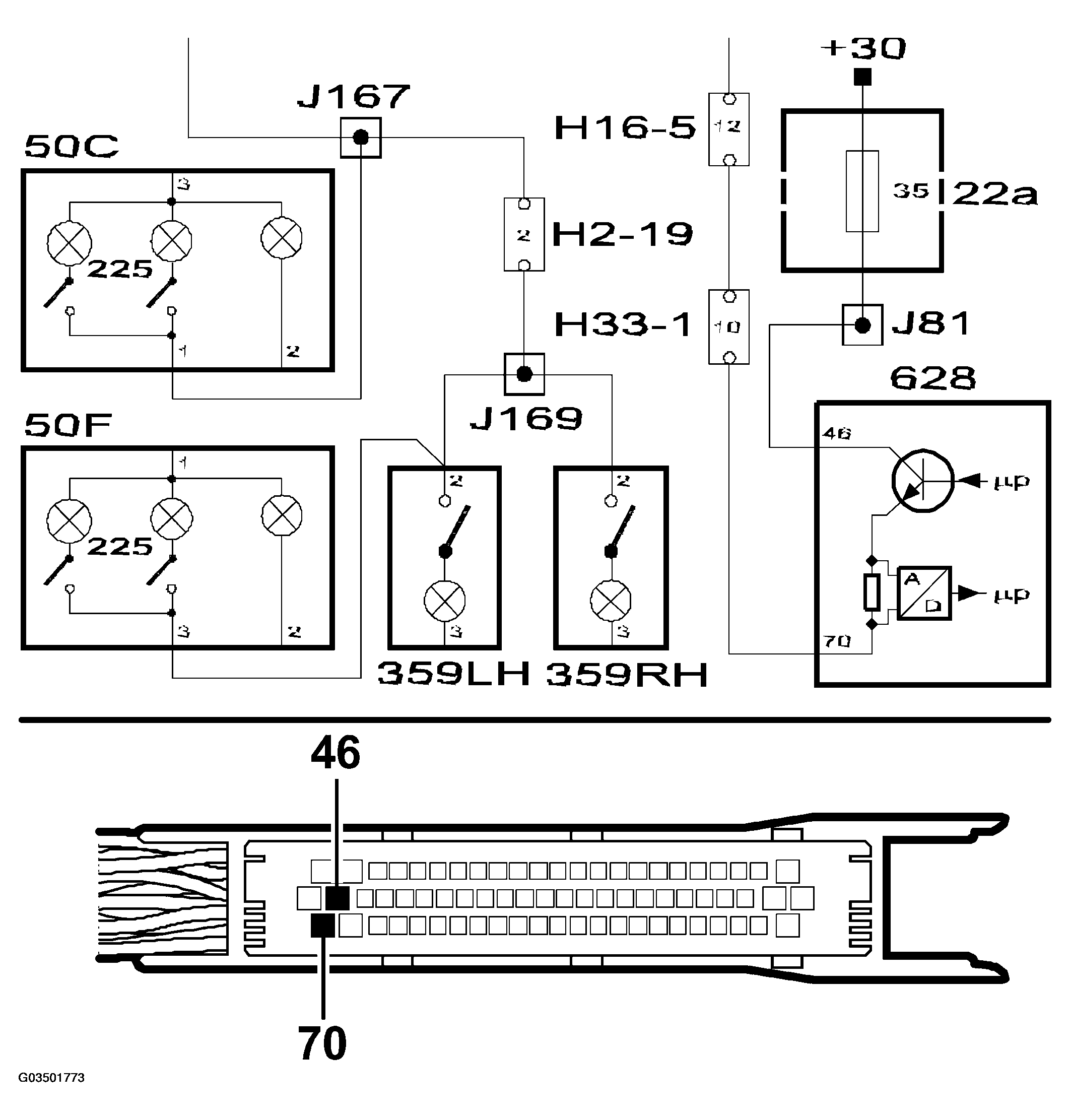

Fig 2: Interior Lighting Circuit Diagram (2 Of 3)
G03501773Courtesy of SAAB-SCANIA OF AMERICA, INC.

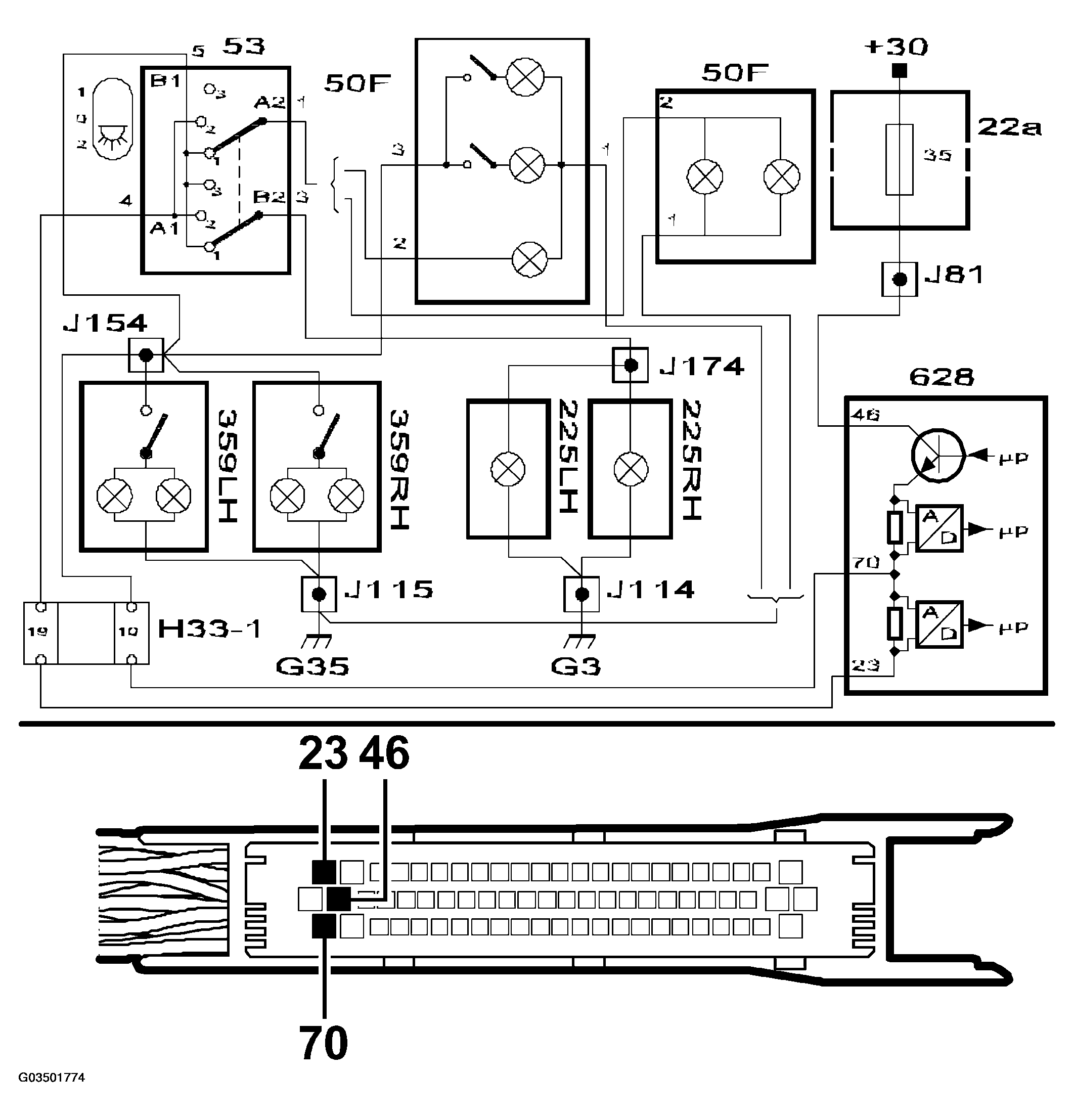

Fig 3: Interior Lighting Circuit Diagram (3 Of 3)
G03501774Courtesy of SAAB-SCANIA OF AMERICA, INC.
