Switch, reversing lights (31)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Manual gearbox

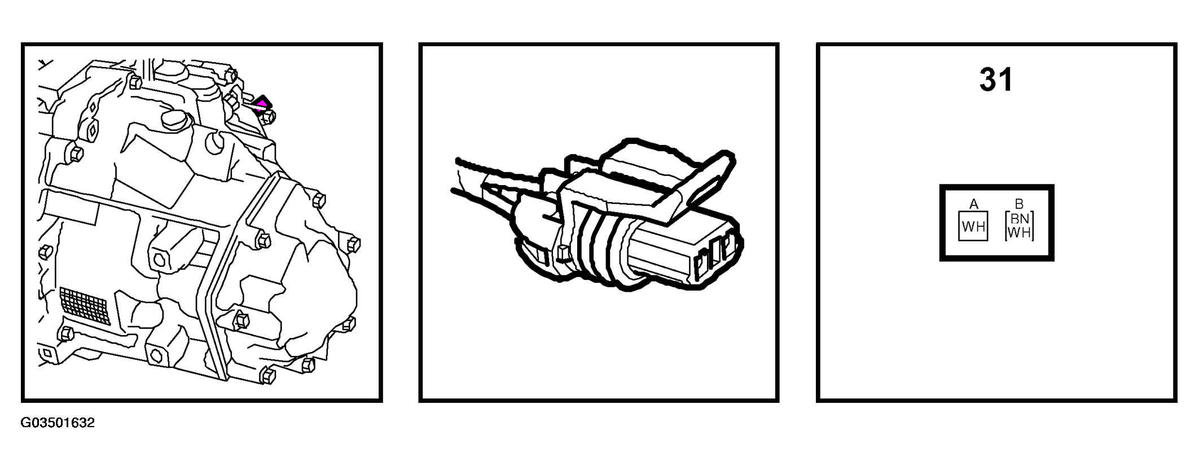

Fig 1: Identifying Reversing Lights Switch Connector Terminals (Manual Gearbox)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Automatic transmission

Fig 2: Identifying Reversing Lights Switch Connector Terminals (Automatic Transmission)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
