Main fuse board 342a in engine compartment
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

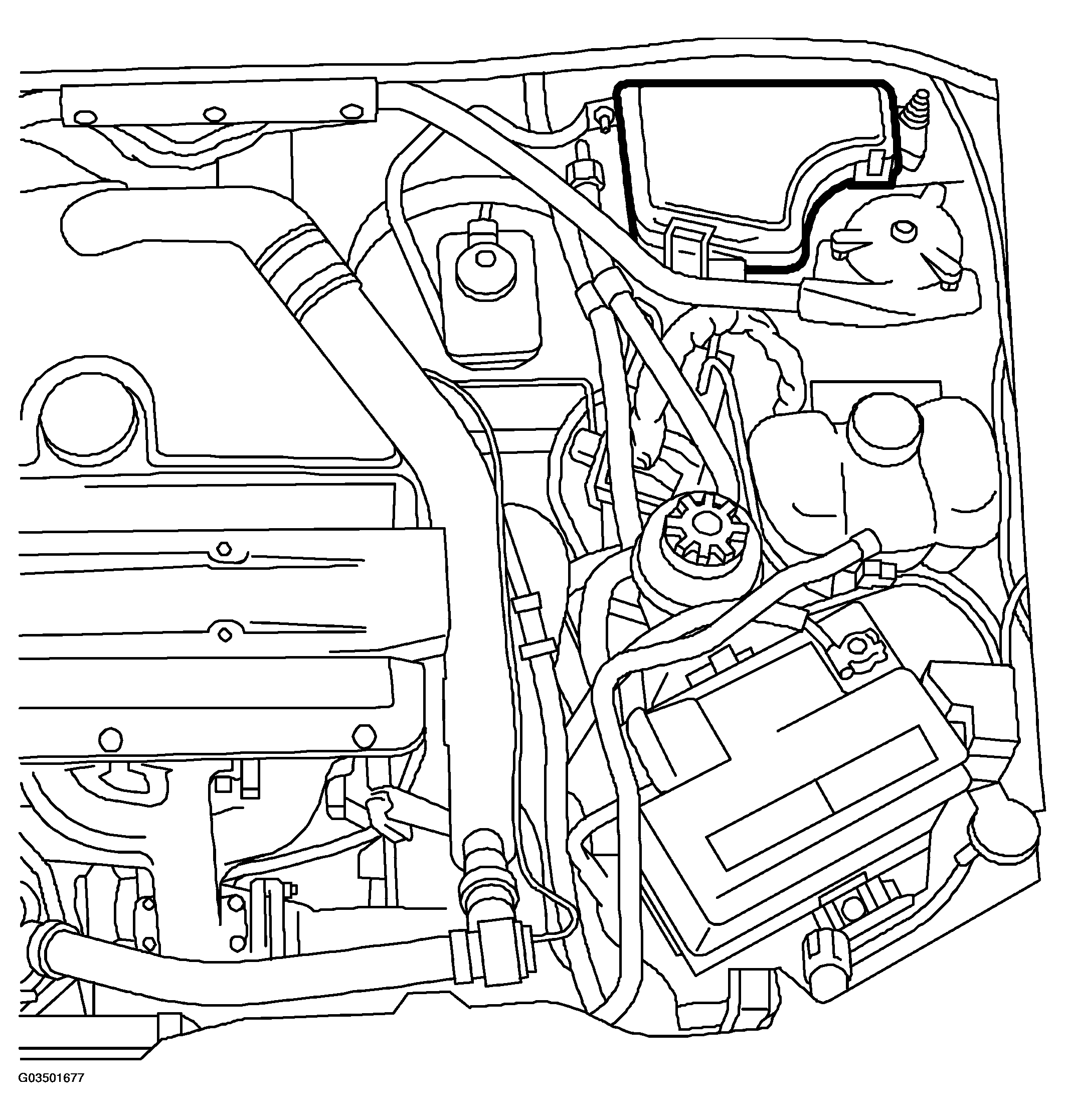

On left side in engine compartment below windscreen
Right sleeve outlet is voltage input.

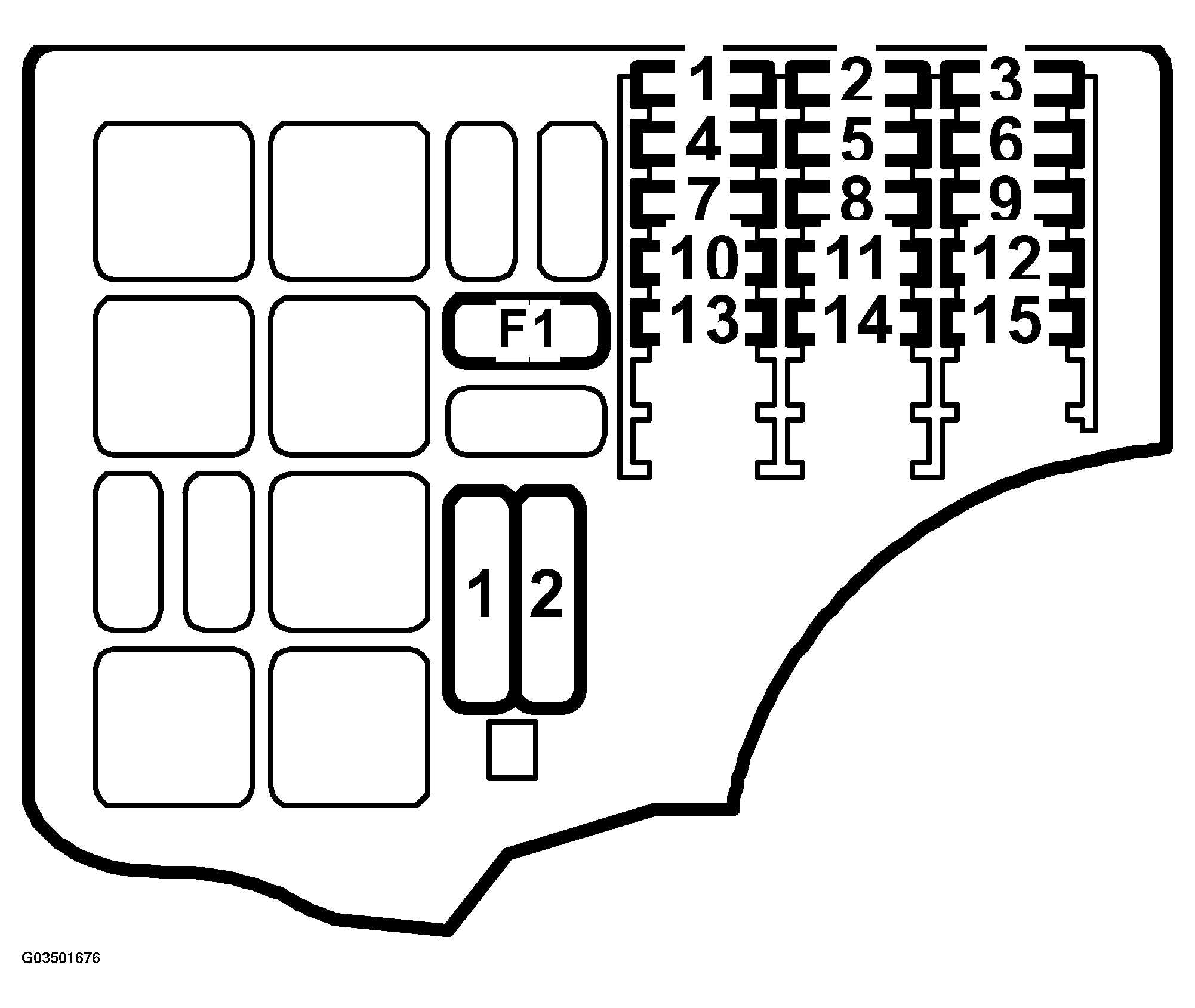

MAIN FUSE BOARD 342A IN ENGINE COMPARTMENT - FUSE SPECIFICATION
| No. | Value | Type | Function |
|---|---|---|---|
| 1 | - | ||
| 2 | 15 A | +30 | Fog lights |
| 3 | 40 A | +30 | Radiator fan, low speed |
| 4 | - | ||
| 5 | 15 A | +30 | A/C compressor |
| 6 | 10 A | Left dipped beam | |
| 7 | 10 A | Right dipped beam | |
| 8 | 10 A | Left main beam | |
| 9 | 10 A | Right main beam | |
| 10 | 7,5 A | Headlamp wipers | |
| 11 | 10 A | +54 | Headlamp beam adjustment |
| 12 | - | Spotlights | |
| 13 | |||
| 14 | 10 A | +54 | Parking heater connection, diesel |
| 15 | 15 A | +30 | Auxiliary heater, diesel |
| Maxi 1 | 30 A | +30 | Radiator fan, high speed |
| Maxi 2 | 50 A | +30 | ABS |
| F1 | 60 A | +30 | Glow plug, diesel |
| F2 | - |
