Main fuse board 22a in the dashboard
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

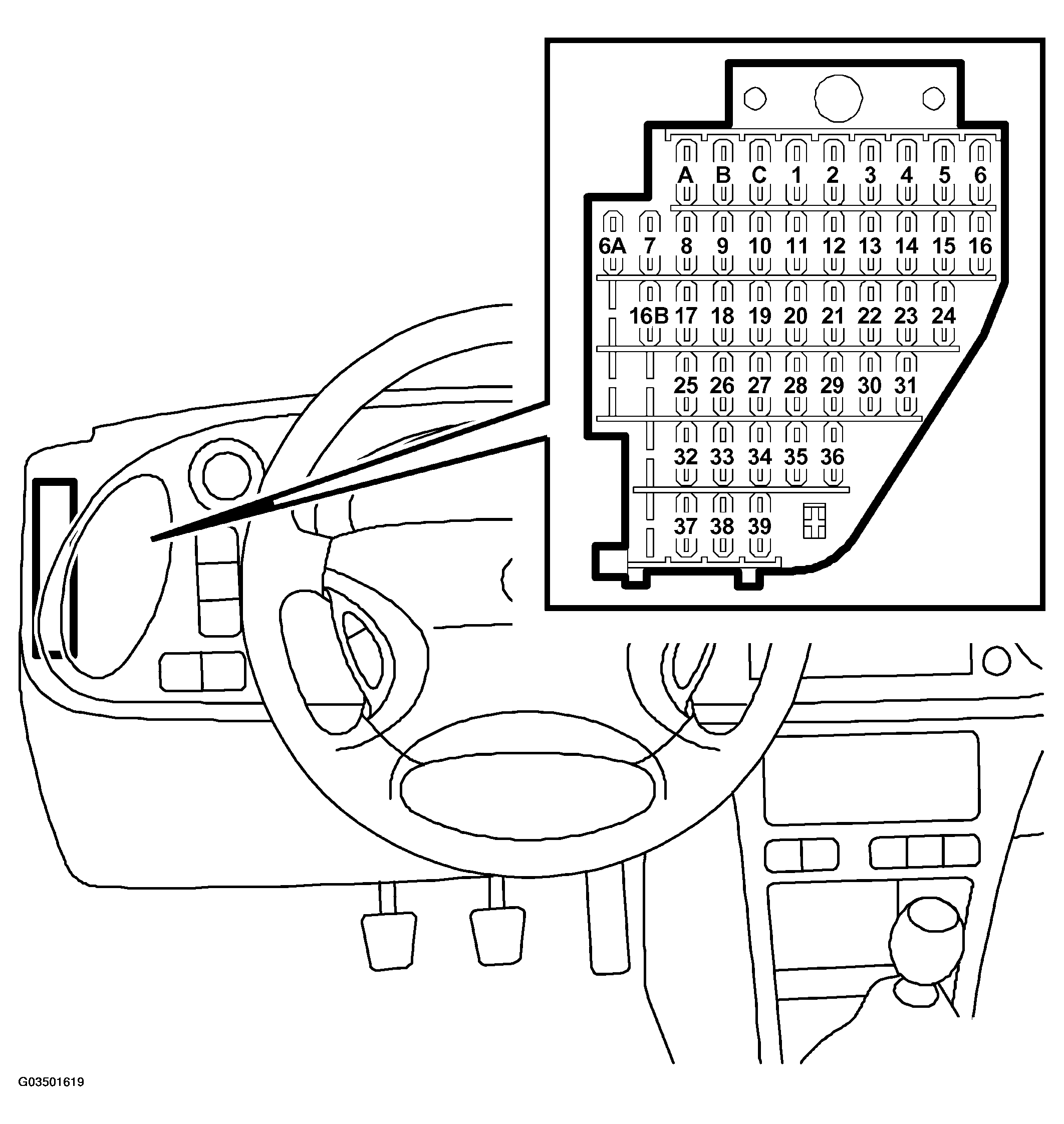

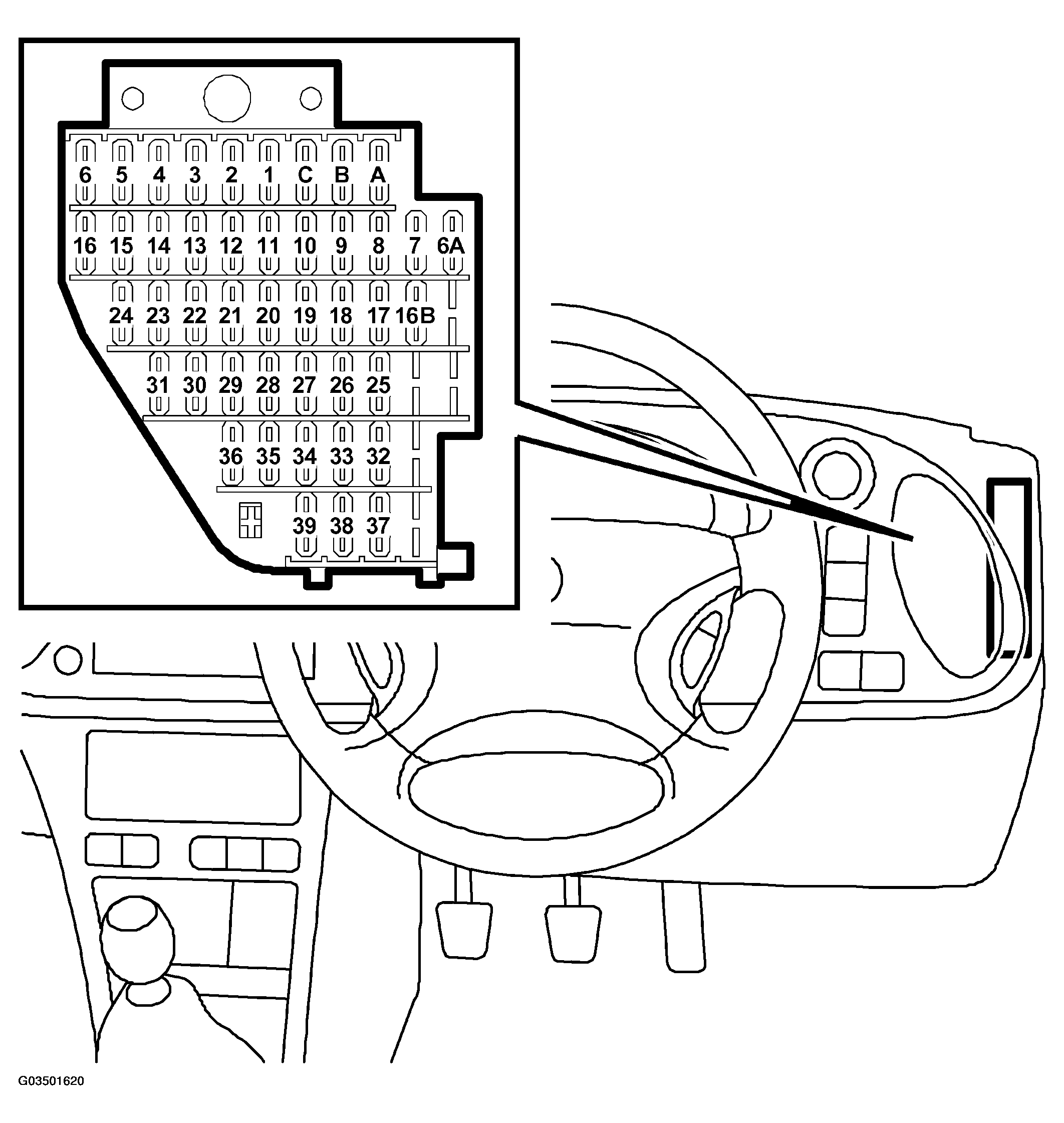

On the short side of the dashboard at the driver's door.
Upper sleeve terminal is incoming voltage.
MAIN FUSE BOARD 22A IN DASHBOARD - FUSE SPECIFICATION
| No. | Value | Type | Function |
|---|---|---|---|
| A | +30 | Trailer clutch | |
| B | Brake lights, trailer | ||
| C | 30 A | +30 | Ventilation fan, ACC |
| 1 | 30 A | +30 | Electrically heated rear window and door mirrors |
| 2 | 20 A | +30 | DICE Direction indicators |
| 3 | 30 A | +54 | Ventilation fan, manual heating & vent |
| 4 | 15 A | +54 | Luggage compartment illumination Power aerial Interior lighting Button and control illumination |
| 5 | 30 A | +30 | Right -hand electrically adjustable seat |
| 6 | 30 A | +54 | Cigarette lighter |
| 6A | 7,5 A | +15 | TCM |
| 7 | 30 A | +54 | Rear power window lifts Sunroof Rear-view mirror and door mirrors |
| 8 | 15 A | +54 | Rear window wiper |
| 9 | 7.5 A | +15 | ACC |
| 10 | 10 A | +30 | Horn |
| 11 | 7,5 A | +B | DICE/TWICE |
| 12 | 20 A | +30 | Brake light DICE Fog lights |
| 13 | 15 A | +30 | Radio Data link connector |
| 14 | 30 A | +54 | Front power window lifts Solenoid valves, convertible |
| 15 | 20 A | +54 | Daylight driving lights |
| 16 | 30 A | +30 | Left-hand electrically adjustable seat |
| 16B | 30 A | +30 via relay 229 |
Petrol engine Solenoid valves, engine management system Mass air flow sensor |
| 16B | 30 A | +30 via relay 229 |
Diesel engine Control module, engine management system Control module, glow plugs Mass air flow sensor EDC15 |
| 17 | 15A | +15 | Control module, engine management system MIU DICE/TWICE PSM Pedal switches, cruise control |
| 18 | 10 A | +15 | Airbag (SRS) |
| 19 | 10 A | +15 | ABS Rear fog lights A/C |
| 20 | 20 A | +54 | Switch, Electrically heated seats |
| 21 | 10 A | +54 | Manual A/C Hood (convertible) |
| 22 | 15 A | +54 | Switch, cruise control DICE Direction indicators |
| 23 | 20 A | +30 | Hood (convertible) Telephone |
| 24 | 7,5 A | +15 | Radio |
| 25 | 30 A | +30 | Central locking system Solenoid, fuel filler flap |
| 26 | 30 A | +15 | Trionic T7 DI T7 |
| 27 | 15 A | +30 | Main beam flash ACC |
| 28 | 10 A | +30 | Engine management system |
| 29 | 10 A | Right -hand parking light Number plate lighting |
|
| 30 | 10 A | Left-hand parking light | |
| 31 | 20 A | +54 | Windscreen wiper Reversing lights Headlamp beam adjustment |
| 32 | 15 A | Fuel pump (petrol) | |
| 33 | 15 A | +30 | Electrically heated rear seat |
| 34 | 10 A | +30 | TCM SID |
| 35 | 15 A | +30 | MIU Interior lighting DICE TWICE |
| 36 | 10 A | +50 | Starter motor relay |
| 37 | 15 A | +30 | Heater, fuel filter, diesel engine |
| 38 | 15 A | Petrol engine Heated oxygen sensors |
|
| 38 | 15A | |
Diesel engine EDC15 Diesel pump PSG16 Mass air flow sensor Solenoid valve unit, EGR |
| 39 | 5 A | +30 | Electronic road tolls (SG market) |
