B. Connected Components On RHD Cars
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

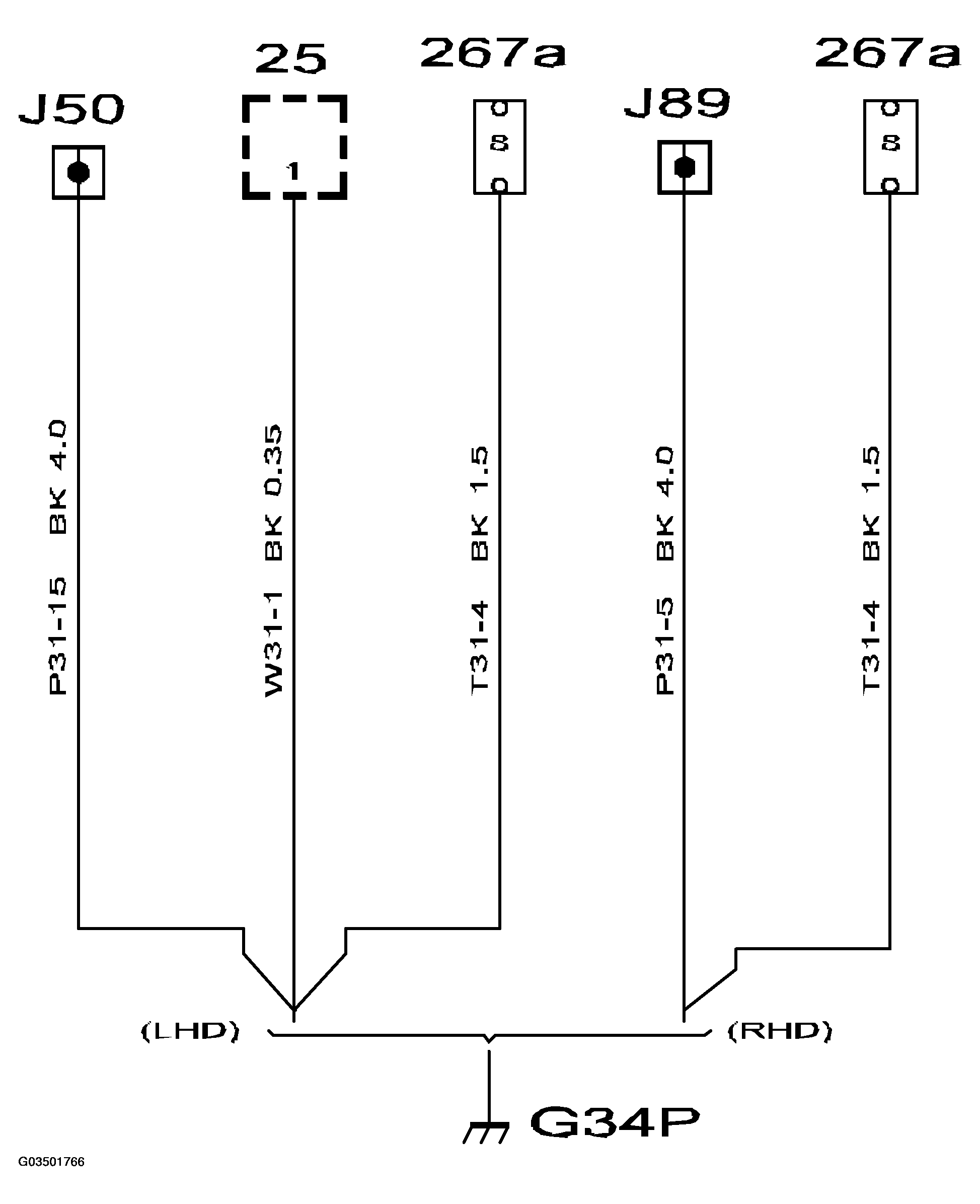

CONNECTED COMPONENTS ON RHD CARS
| Via crimp J89 |
| 10 |
Light switch |
| 25 |
Switch, hazard flashers |
| 61 |
Switch, windscreen wipers |
| 62F |
Motor, windscreen wipers |
| 267a/353 |
Radio connection, contact A |
| 354 |
Amplifier, audio system |
| 445 |
Data link connector, 16 pin, CARB |
Courtesy of SAAB-SCANIA OF AMERICA, INC.
