Connected Components
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

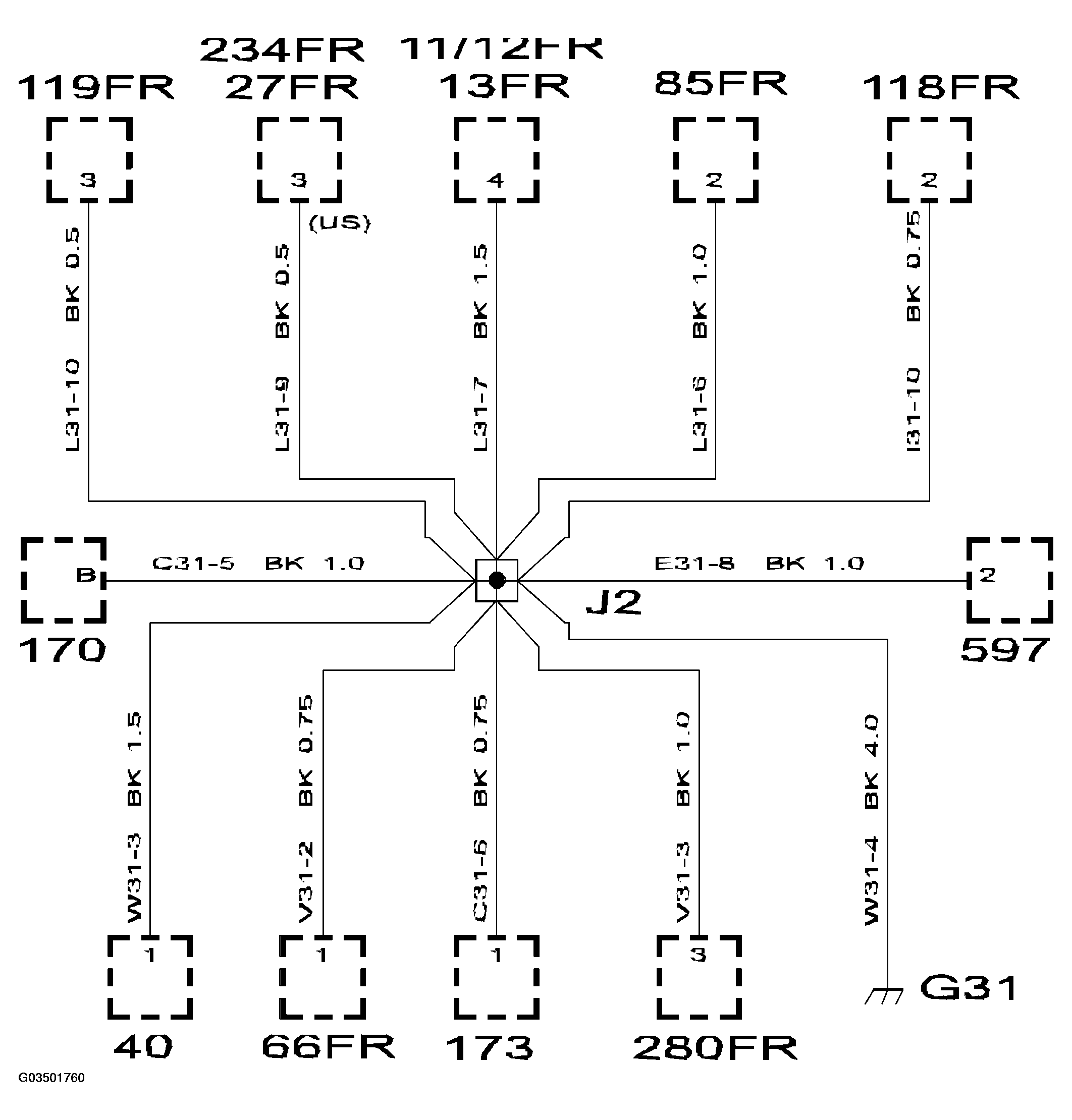

GROUNDING POINT G31 CONNECTED COMPONENTS
| Via crimp J2 | |
| 11FR | Main beam bulb, right |
| 12FR | Dipped beam bulb, right |
| 13FR | Parking light bulb, front right |
| 27FR | Direction indicator bulb, front right |
| 40 | Horn |
| 66FR | Headlamp wiper motor, right |
| 85FR | Extra fog light bulb, right |
| 119FR | Side reversing light bulb, right |
| 170 | Compressor, A/C |
| 173 | Diode, A/C compressor, (diesel) |
| 234FR | Side marker light bulb, right |
| 280FR | Headlamp beam adjustment motor, right |
| 597 | Auxiliary heater |
