Filament monitor, front lamps (228b)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

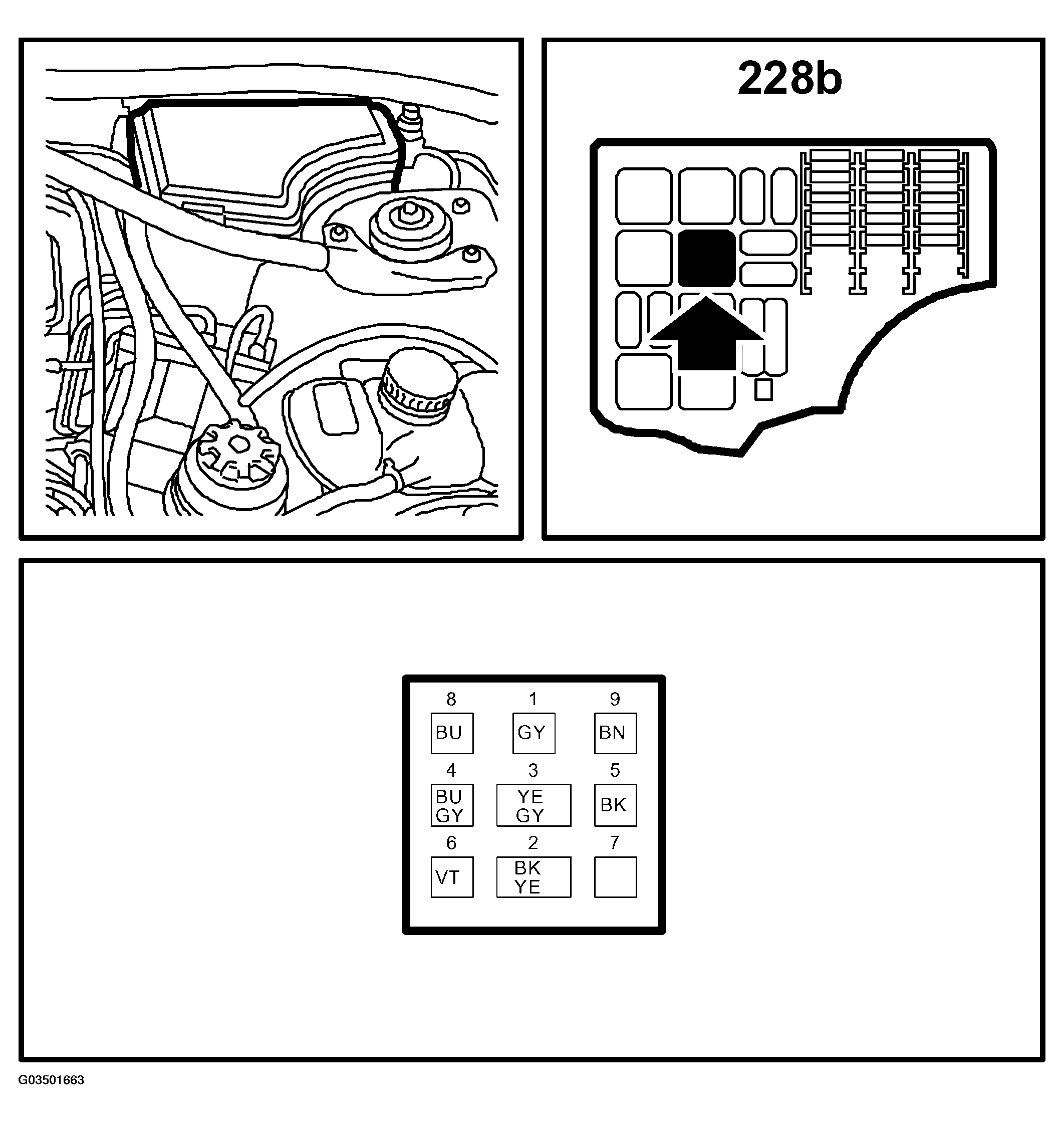

Fig 1: Identifying Filament Monitor Front Lamps - Connector Pinouts
G03501663Courtesy of SAAB-SCANIA OF AMERICA, INC.
