To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

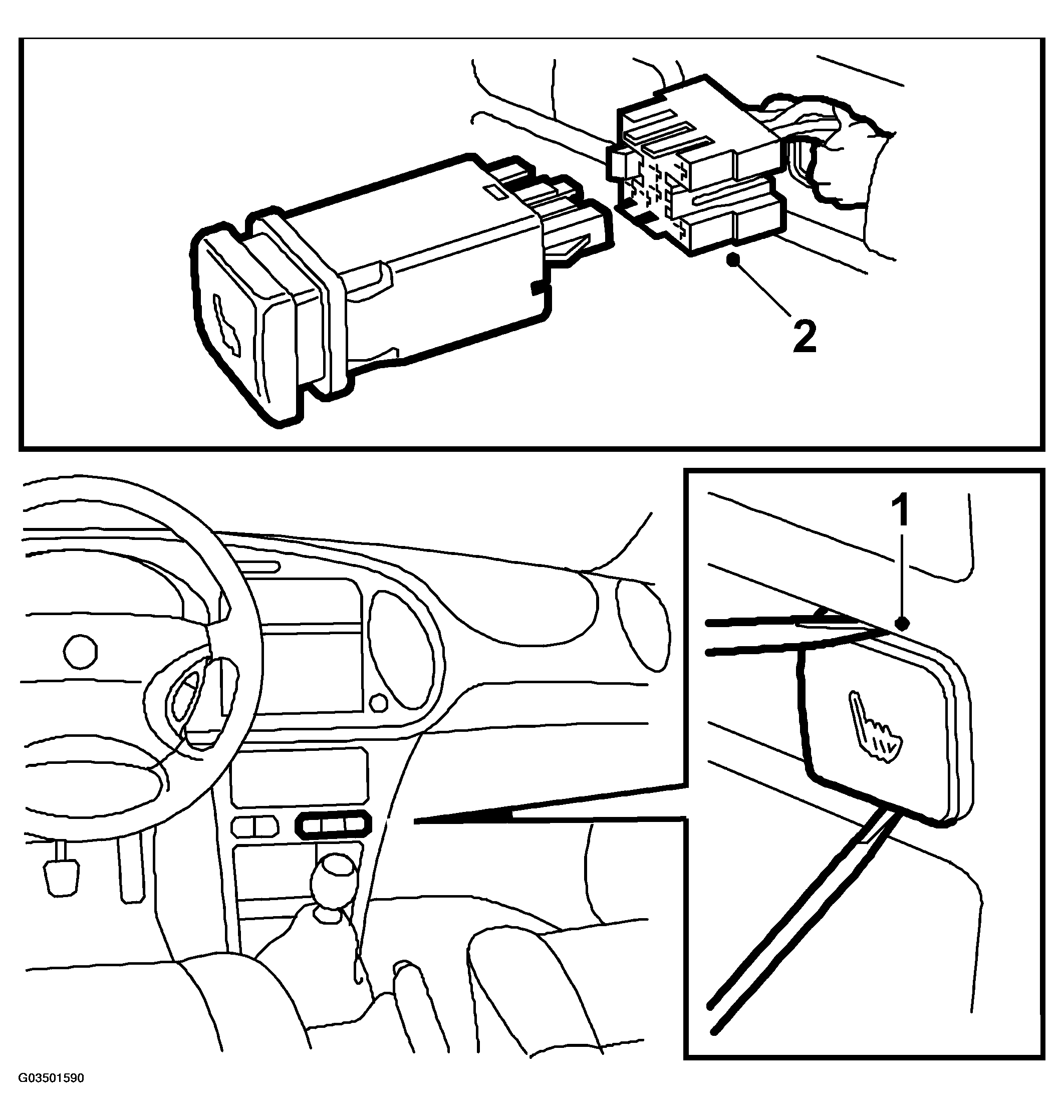

Fig 1: Illustration For Step 1-2
G03501590Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Be careful not to damage the dashboard.
  1. Extract the switch using two screwdrivers. (Hazard flashers) The switch should be in the active position before extracting it.
  2. Unplug the connector.
