To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

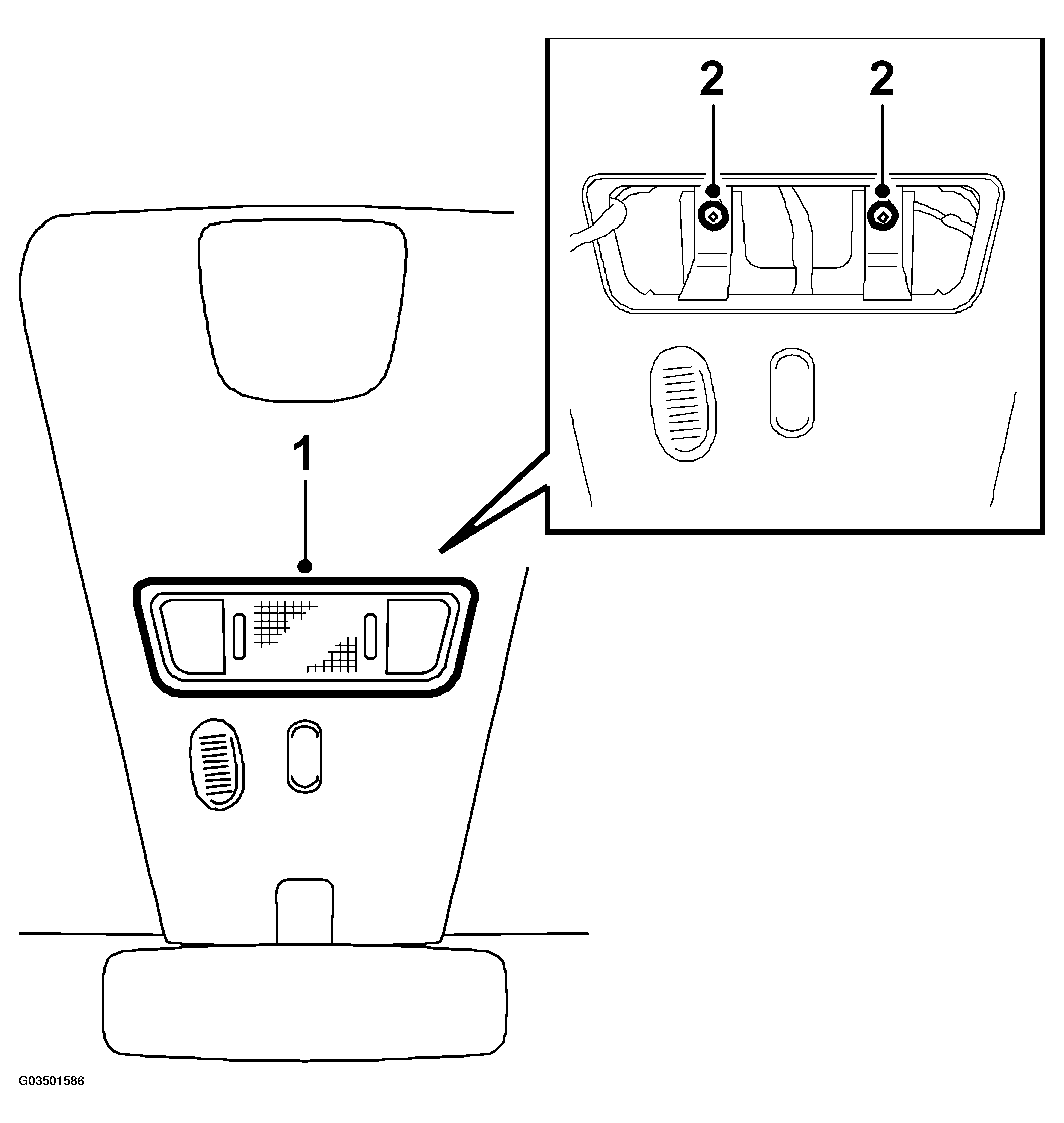

Fig 1: Illustration For Step 1-2
G03501586Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the lamp cover from the front roof console.
  2. Remove the screws holding the roof console.
  3. Remove the roof console and let it hang on the leads.

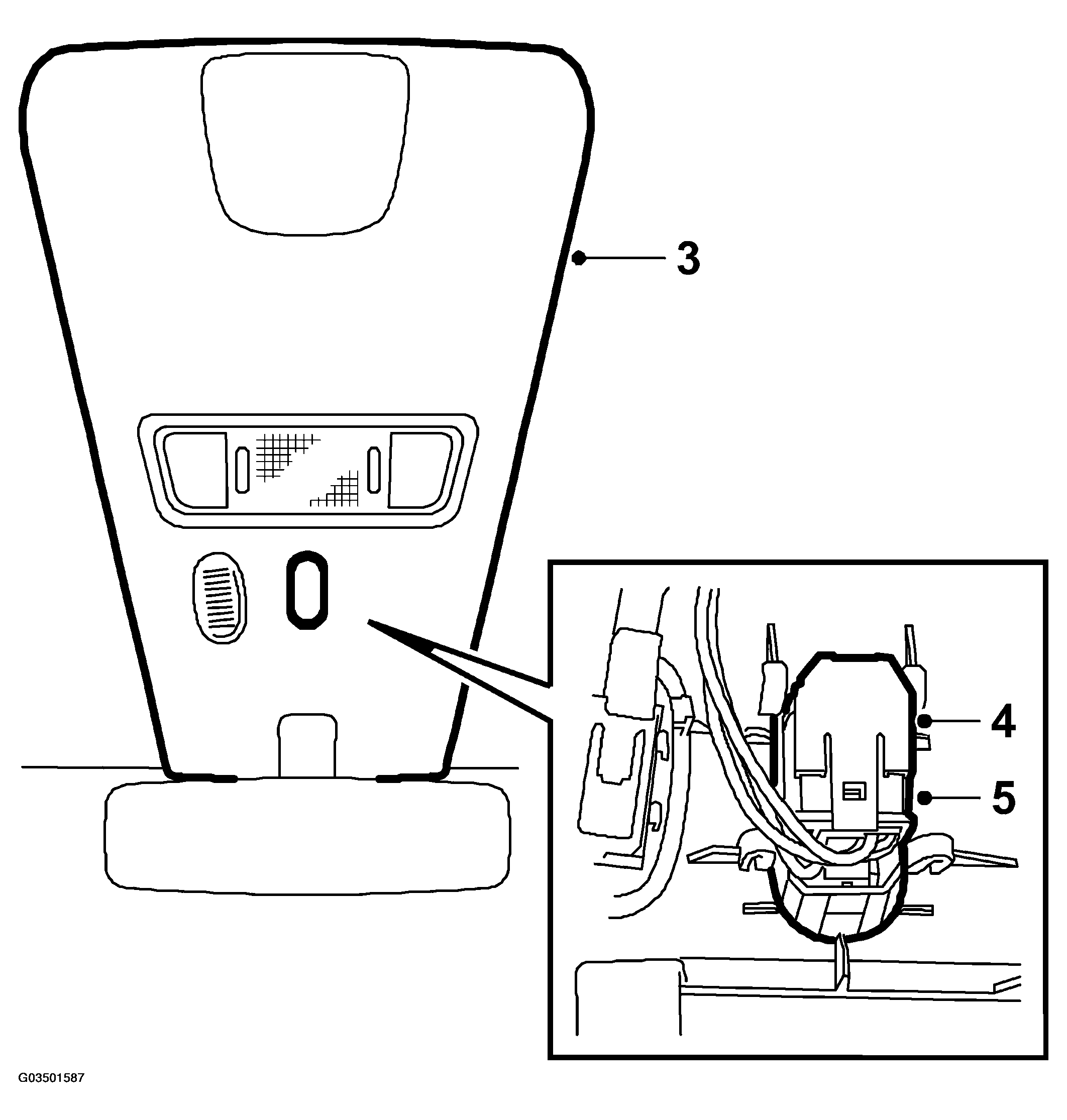

    Fig 2: Illustration For Step 3-5
    G03501587Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Loosen the switch from its holder.
  5. Unplug the connector from the switch.
