To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

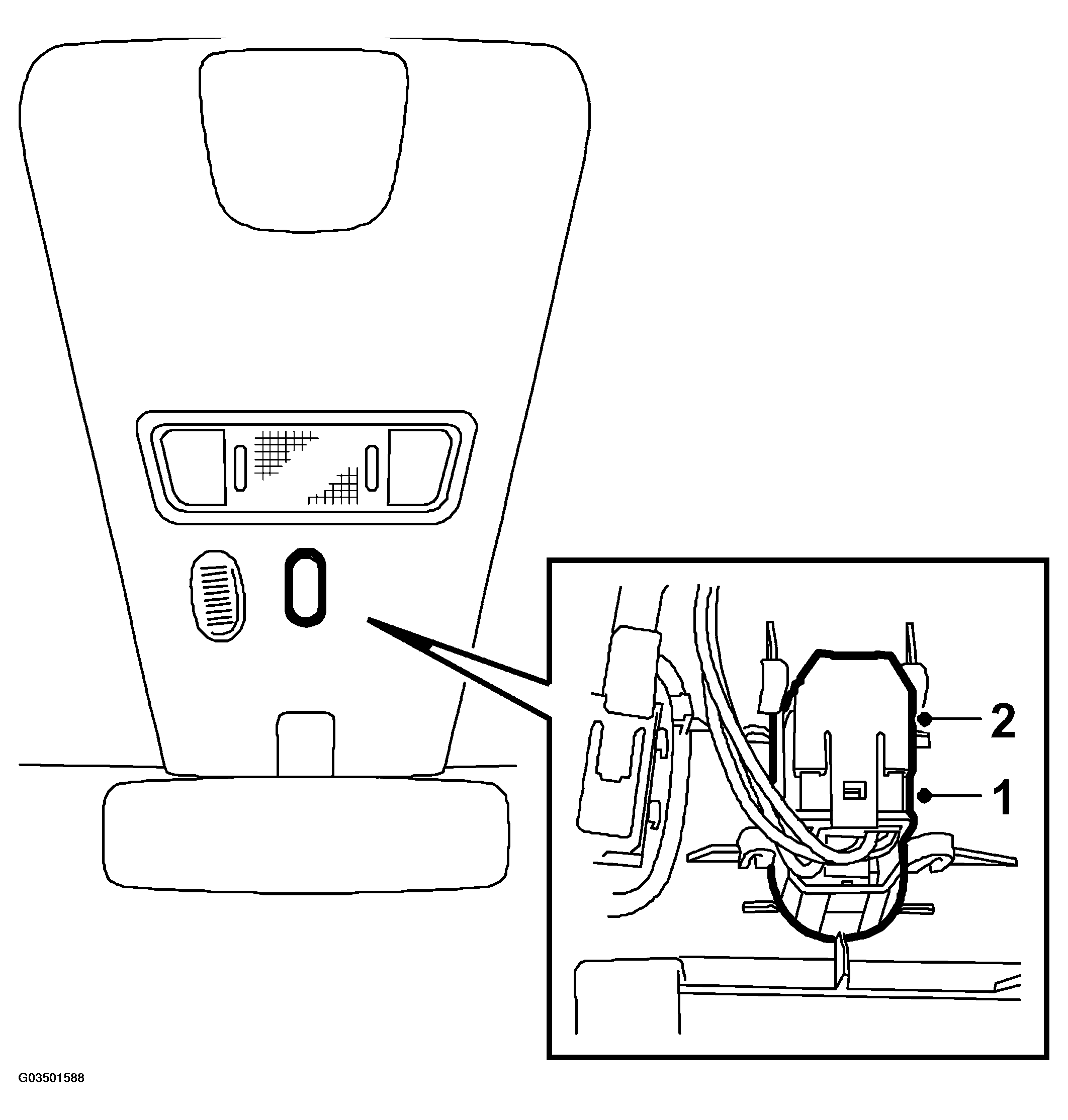

Fig 1: Illustration For Step 1-2
G03501588Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Replug the connector.
  2. Fit the switch in its holder.
  3. Fit the roof console using the 2 screws.

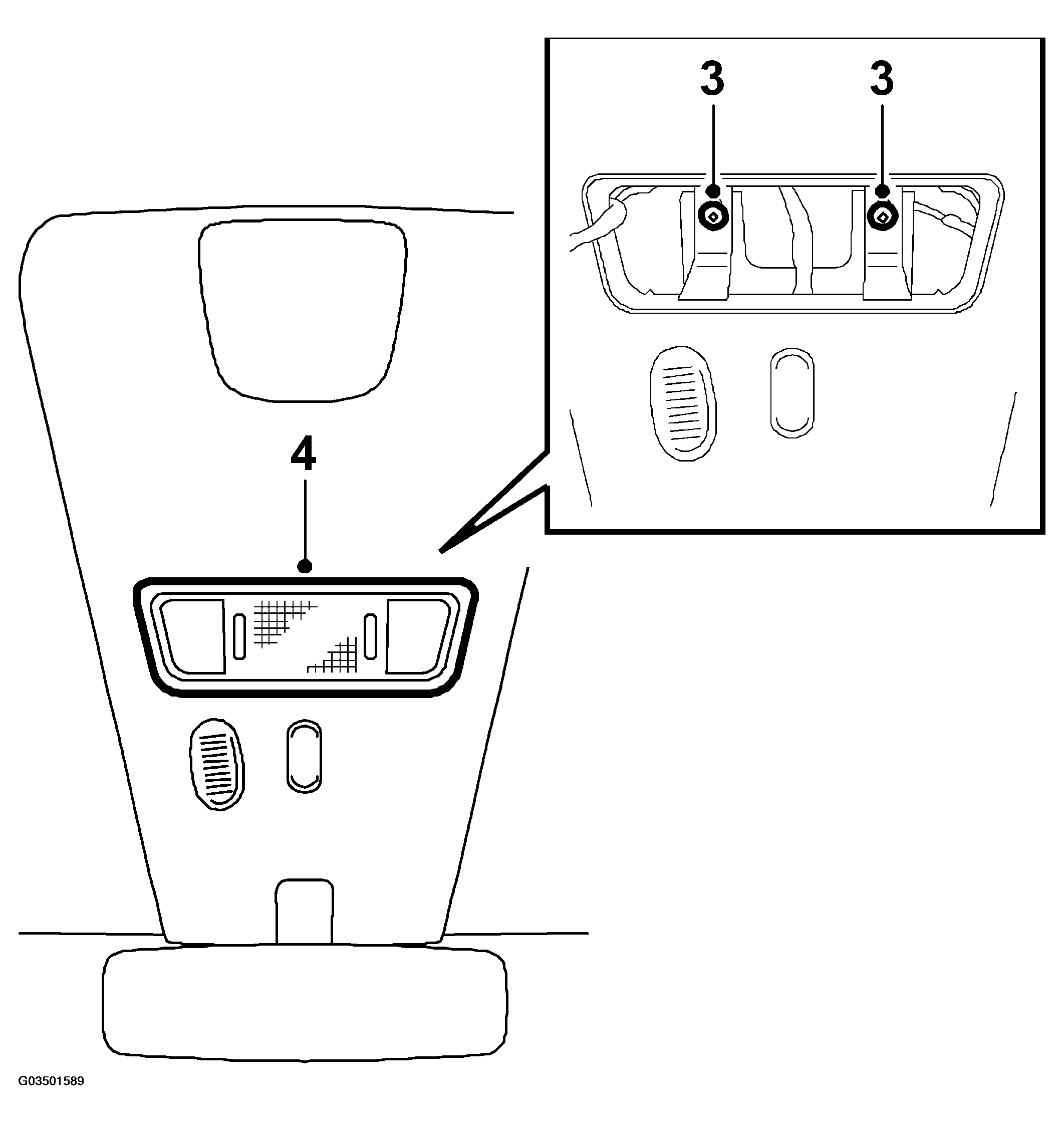

    Fig 2: Illustration For Step 3-4
    G03501589Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the lamp cover.
