To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

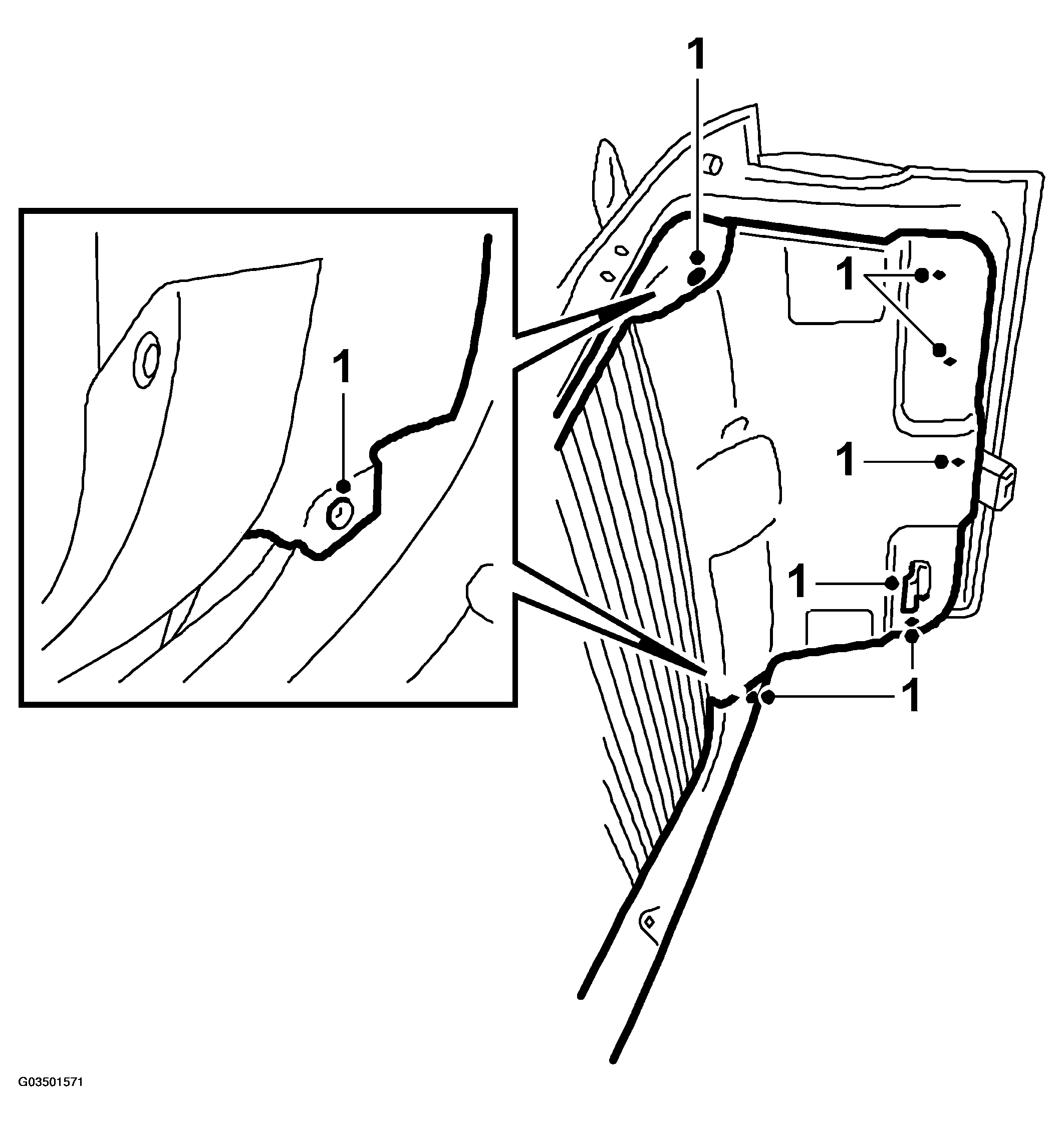

Fig 1: Illustration For Step 1
G03501571Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the cover in the luggage compartment trim on the side in question.
  2. Unscrew the nuts holding the lamp fitting, 3 (LH side) and 4 (RH side).

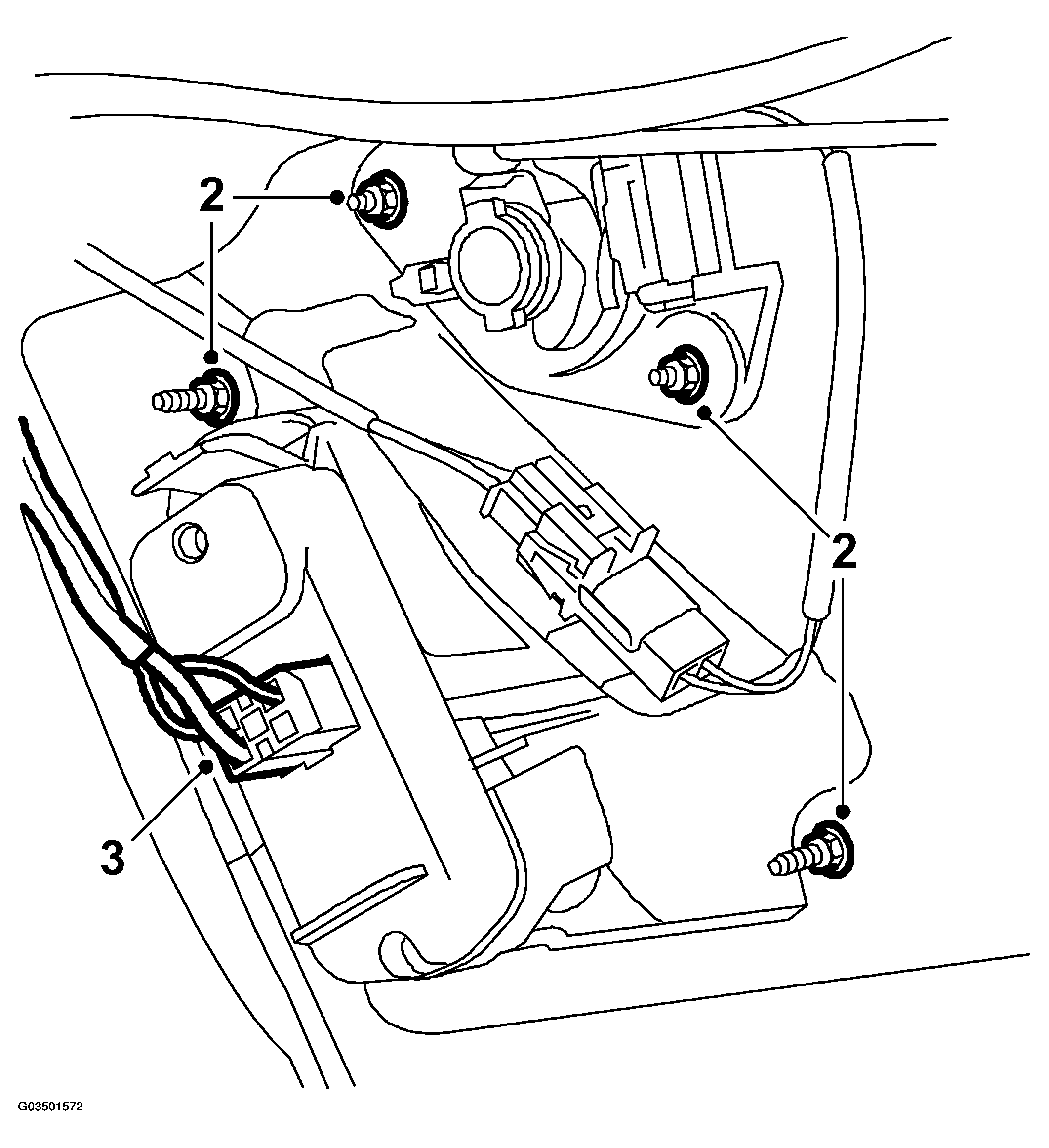

    Fig 2: Illustration For Step 2-3
    G03501572Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Loosen the lamp holder.
