To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

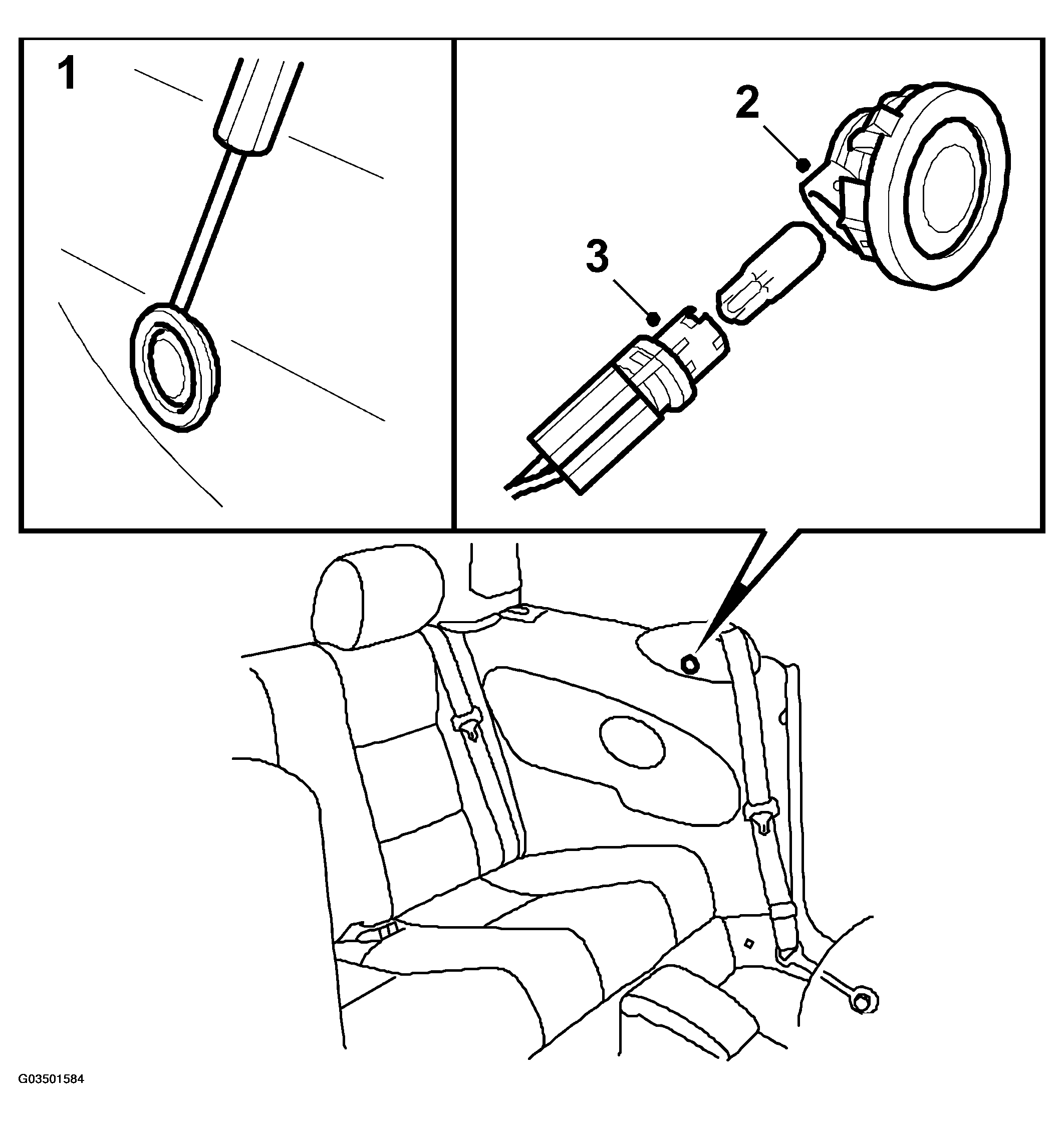

Fig 1: Illustration For Step 1-3
G03501584Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Loosen the lamp by carefully prying it loose with a small screwdriver. Do not damage the belt guide cover.
  2. Detach the lamp lens from the bayonet fitting and retrieve the bulb.
  3. Unplug the connector and remove the lamp socket.
