To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

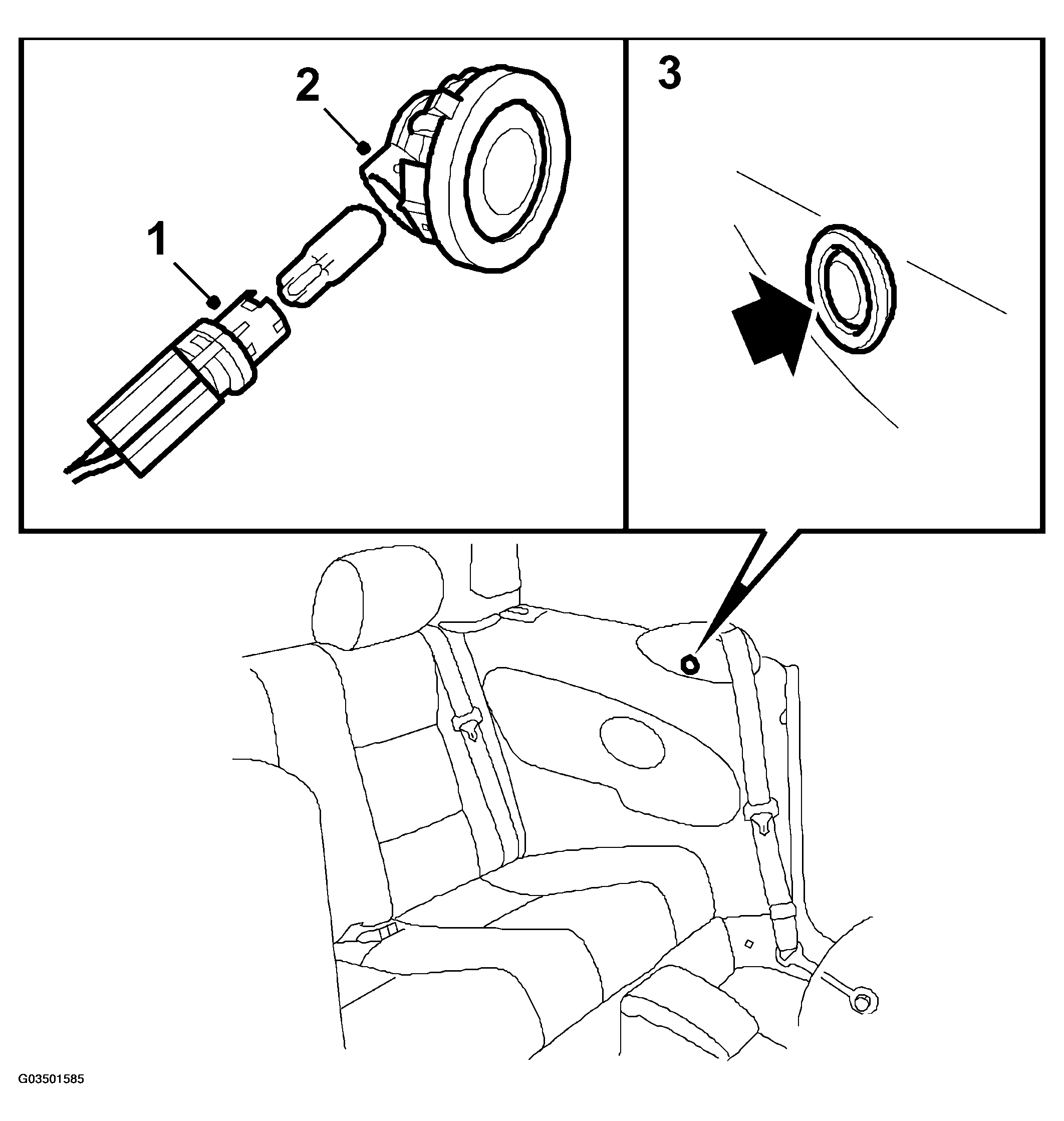

Fig 1: Illustration For Step 1-3
G03501585Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug in the connector.
  2. Put the bulb and lamp lens in place.
  3. Put the lamp in place in the belt guide cover.
