To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

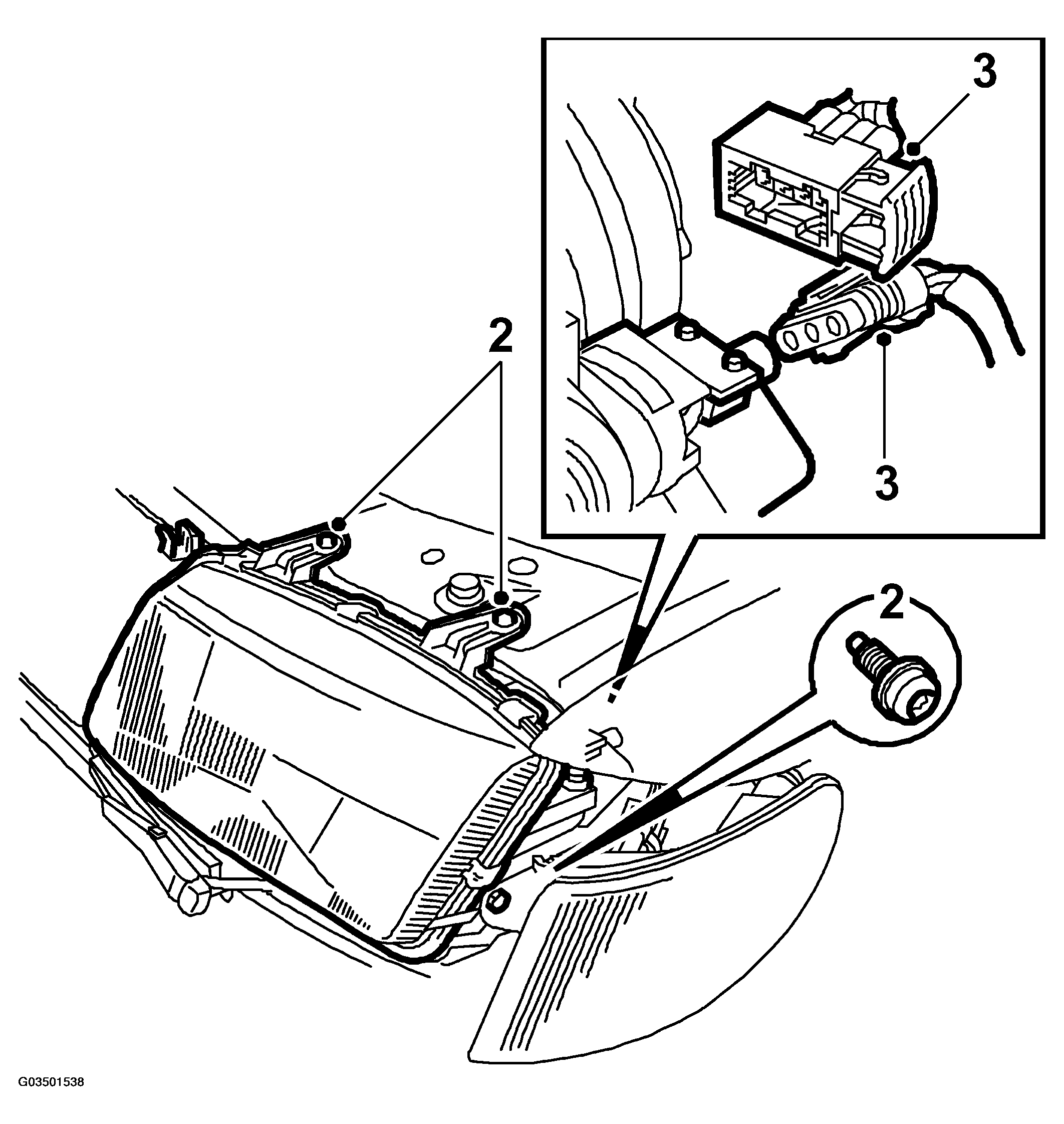

Fig 1: Illustration For Step 2-3
G03501538Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Position the headlamp correctly.
  2. Fit the three screws holding the headlamp.
  3. Plug the connector on to the headlamp.
  4. Fit the direction indicator.

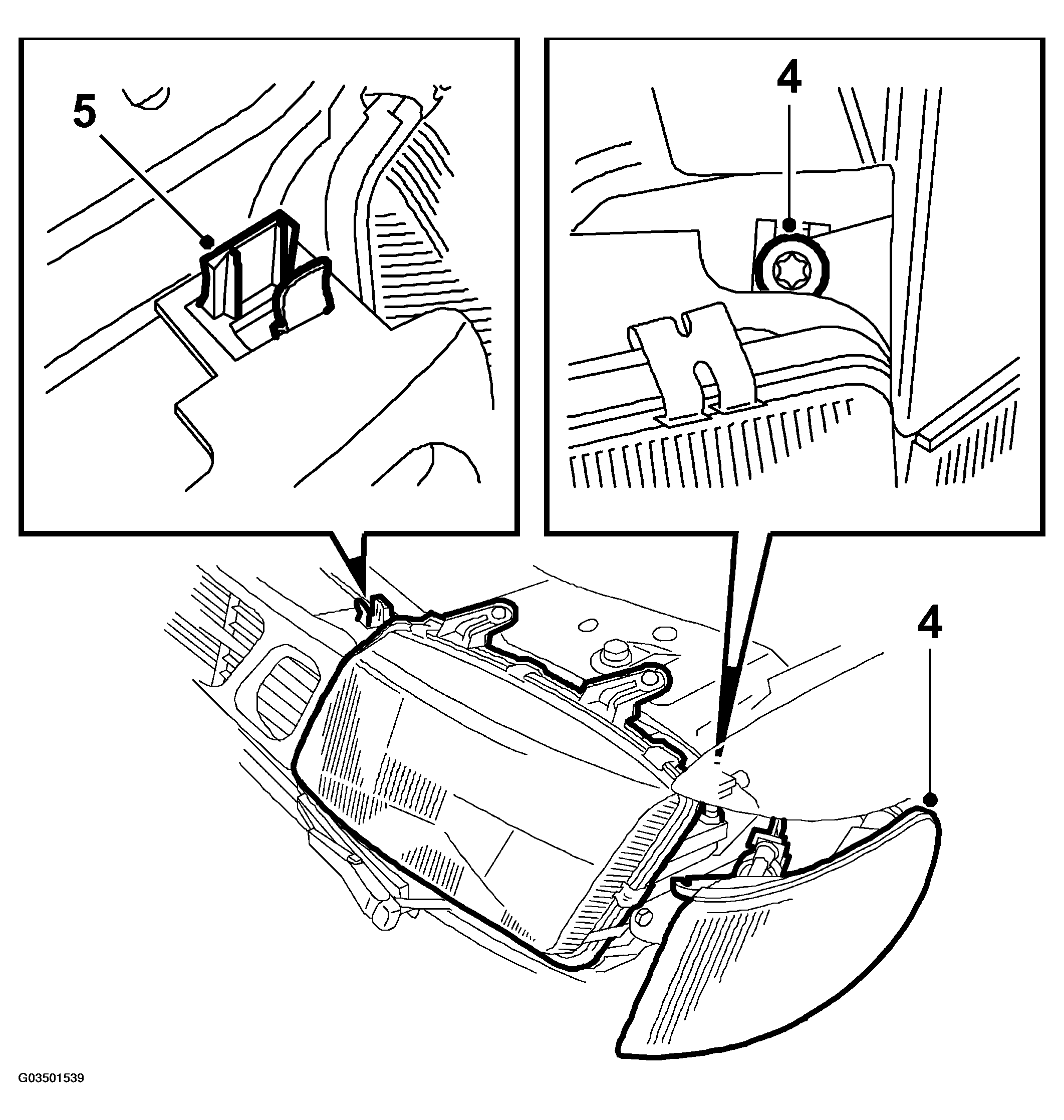

    Fig 2: Illustration For Step 4-5
    G03501539Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the grille.
  6. Adjust the headlamp.
