Lamp Bulb, Headlamp

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

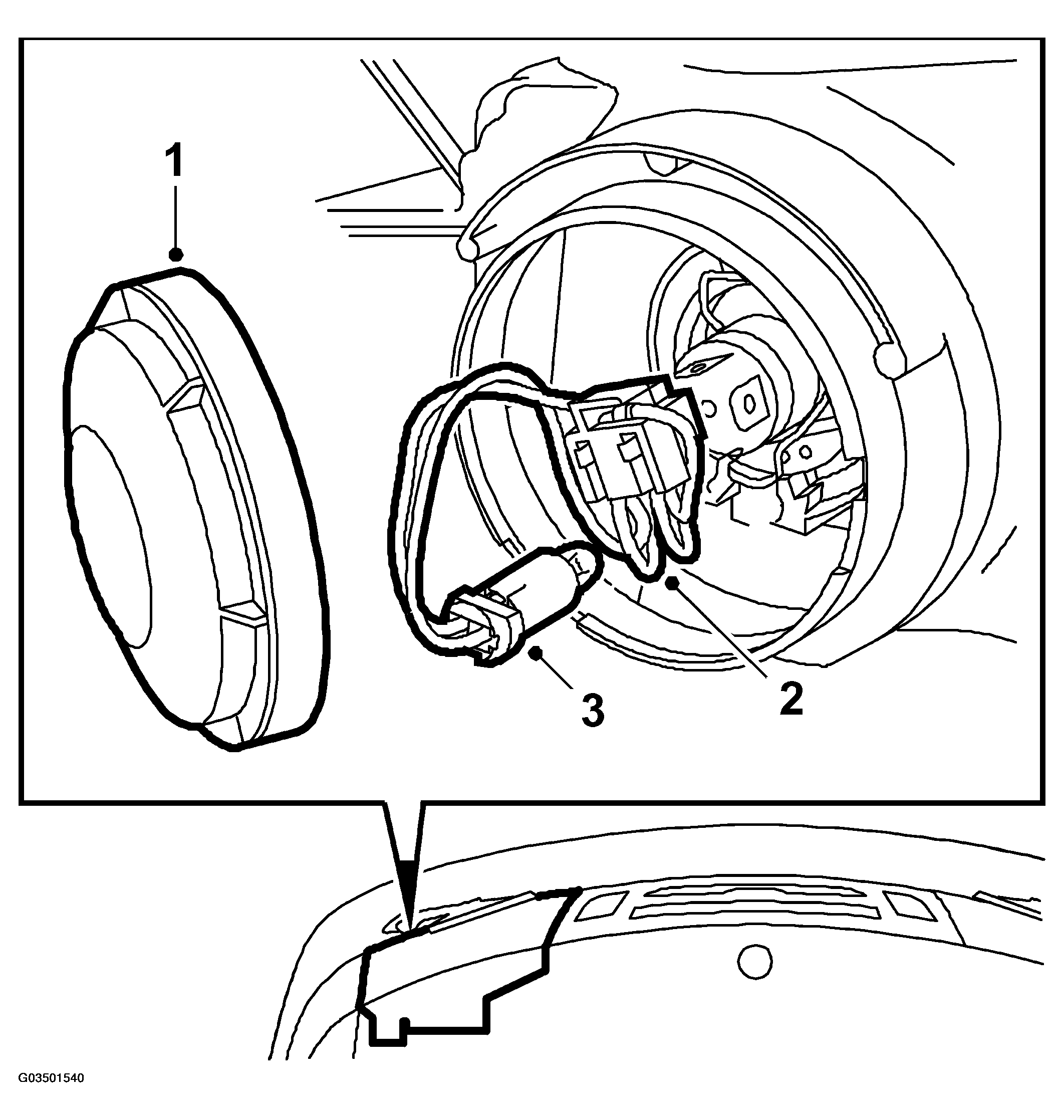

Fig 1: Illustration For Step 1-3
G03501540Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Fit bulbs with correct rating only, the wiring can otherwise be damaged.
  1. Remove the cover on the back of the headlamp.
  2. Unplug the connector to the halogen lamp.
  3. Unplug the connector for the position light lamp.
  4. Unhook the mounting bracket holding the halogen lamp and change the lamp.

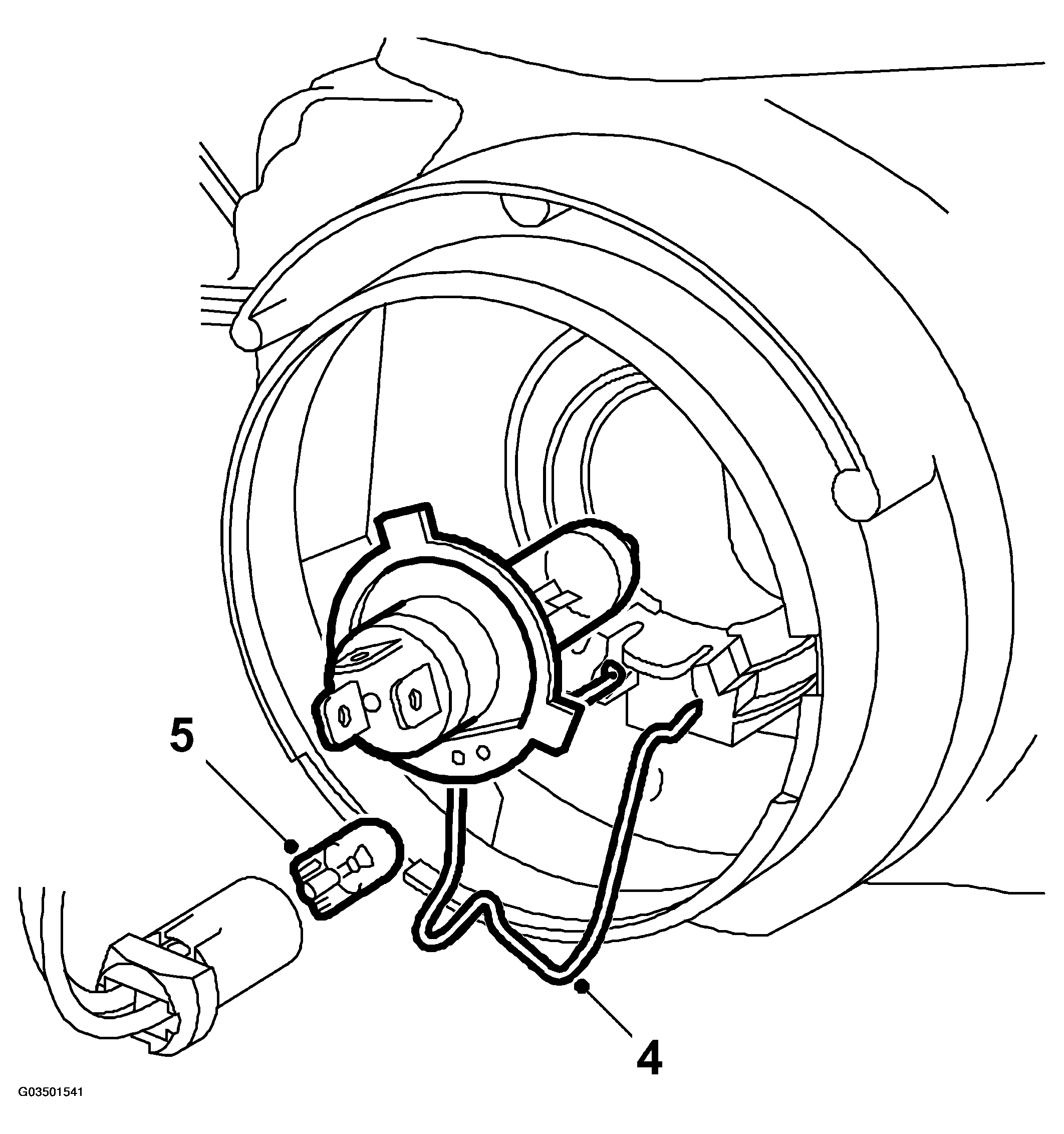

    Fig 2: Illustration For Step 4-5
    G03501541Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. To remove the position light lamp, pull the lamp-holder backwards and change the bulb.
