To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

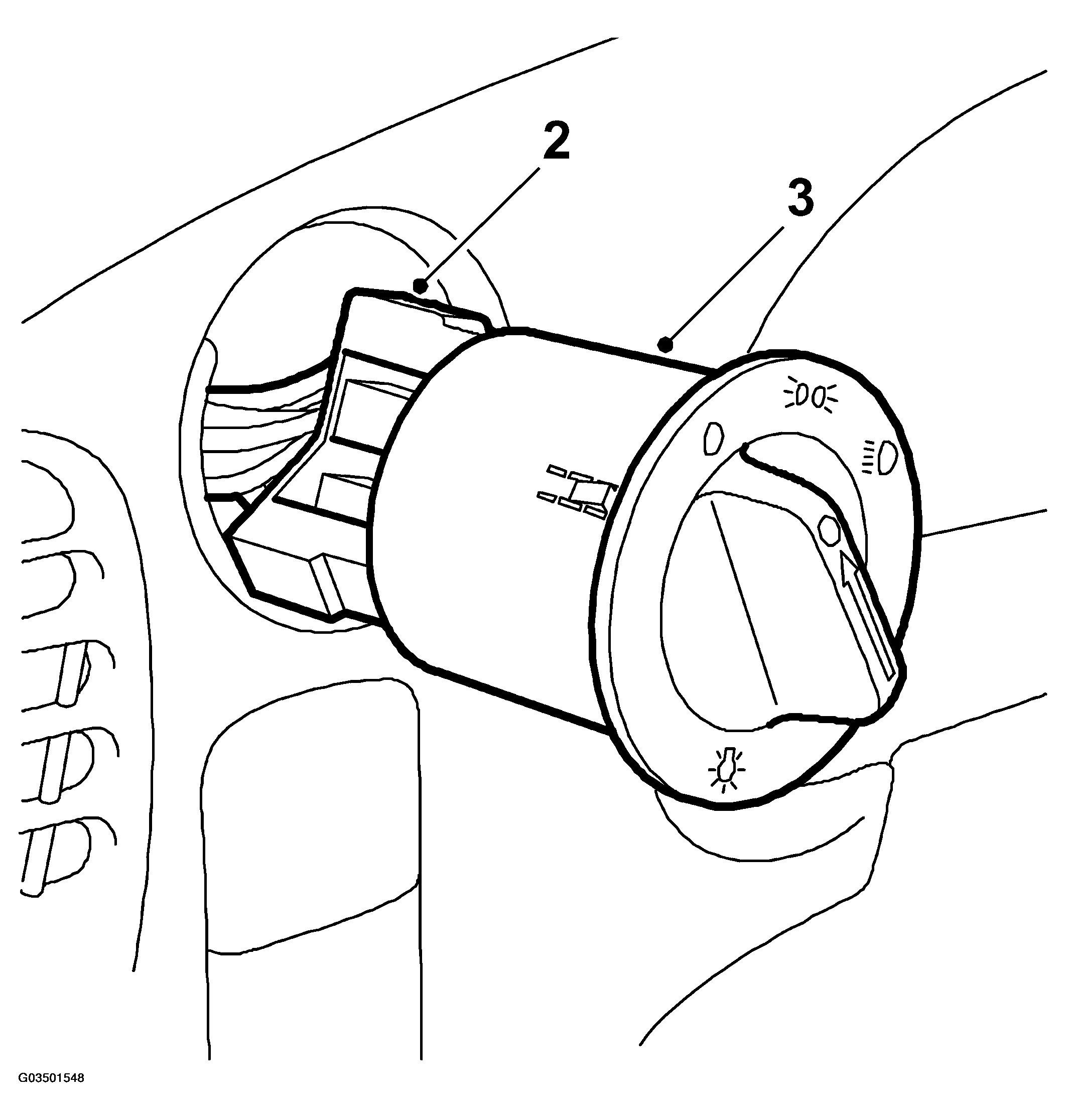

Fig 1: Illustration For Step 2-3
G03501548Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Connect the new light switch
  2. Press the light switch into the panel.

Light bulb in light switch

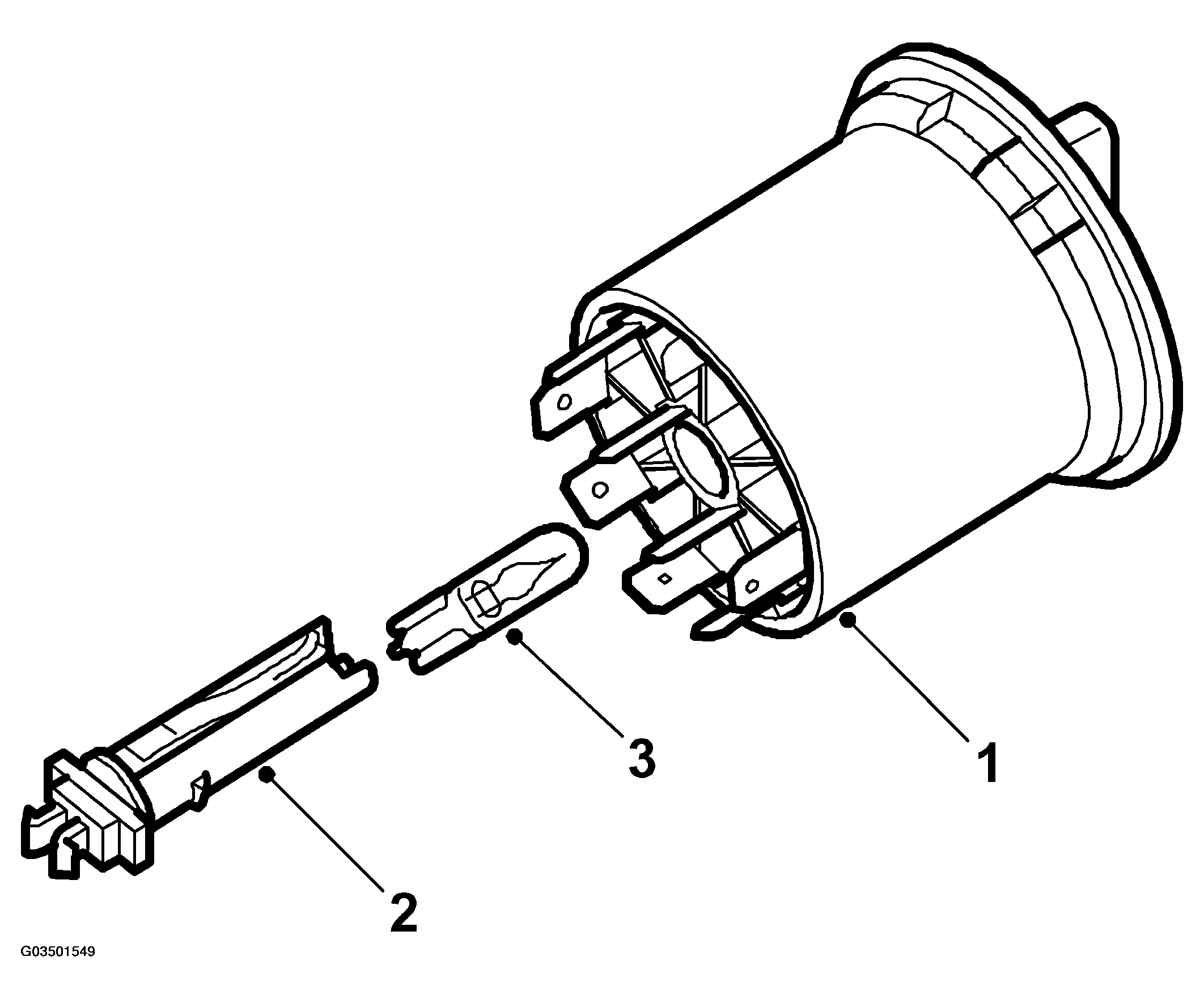

Fig 2: Illustration For Step 1-3
G03501549Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the light switch as described above.
  2. Pull out the lamp holder.
  3. Replace the lamp bulb and press the switch back into the panel.
