To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

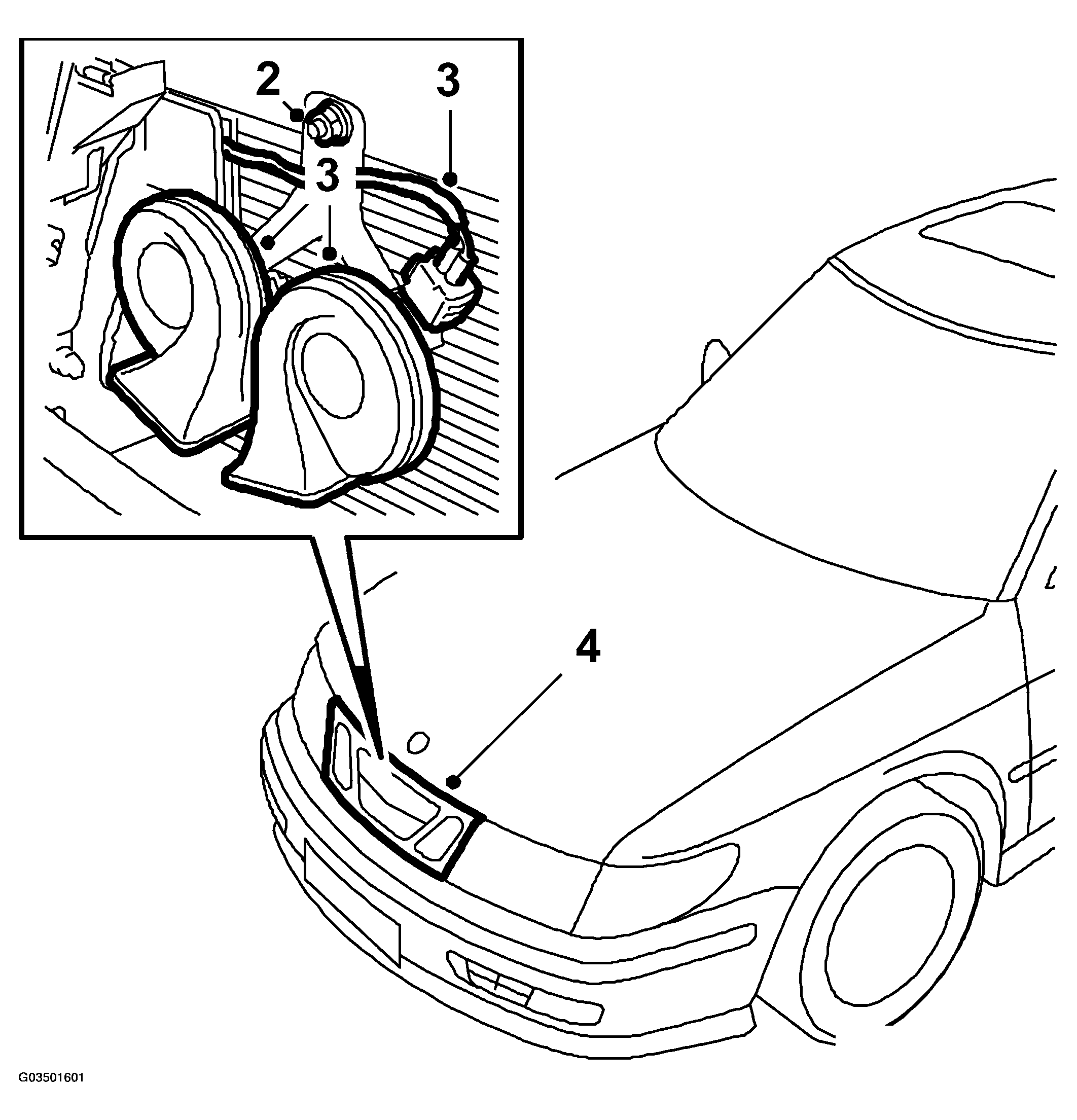

Fig 1: Illustration For Step 2-4
G03501601Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Check that the horn has the correct tone.

    The high-tone horn is marked H and the low-tone L.

  2. Fit the horn at a 45° angle downwards/outwards.
  3. Plug in the horn connector.
  4. Fit the grille.
