To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

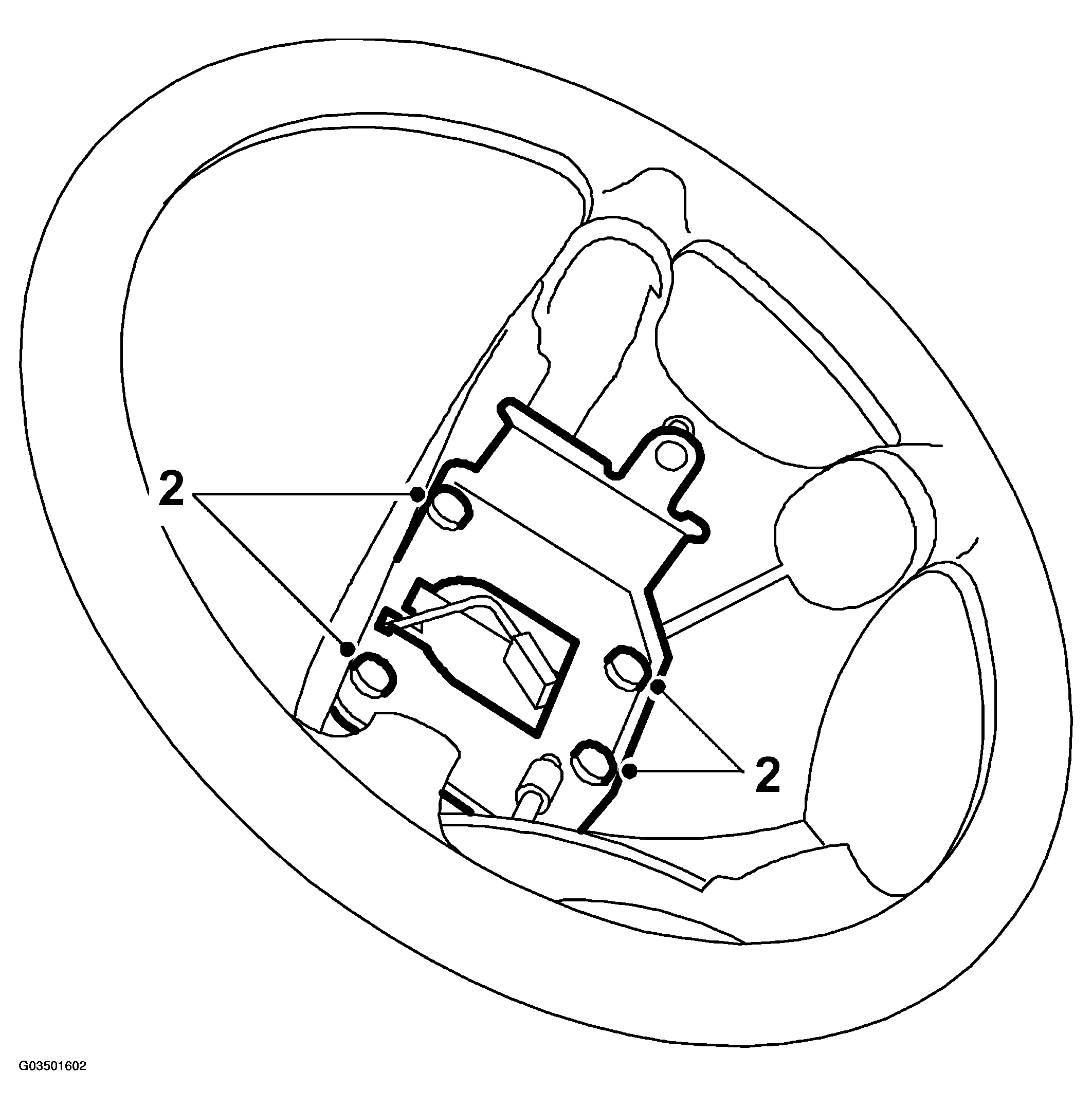

Fig 1: Illustration For Step 2
G03501602Courtesy of SAAB-SCANIA OF AMERICA, INC.
WARNING: Be careful to read all the safety instructions before working on the airbag.
  1. Remove the airbag, see DRIVER-SIDE AIR BAG MODULE .
  2. Remove the four horn plate retaining screws and lift up the whole unit.
    IMPORTANT: Retain the springs. They are not included in the spare part kit.
