To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

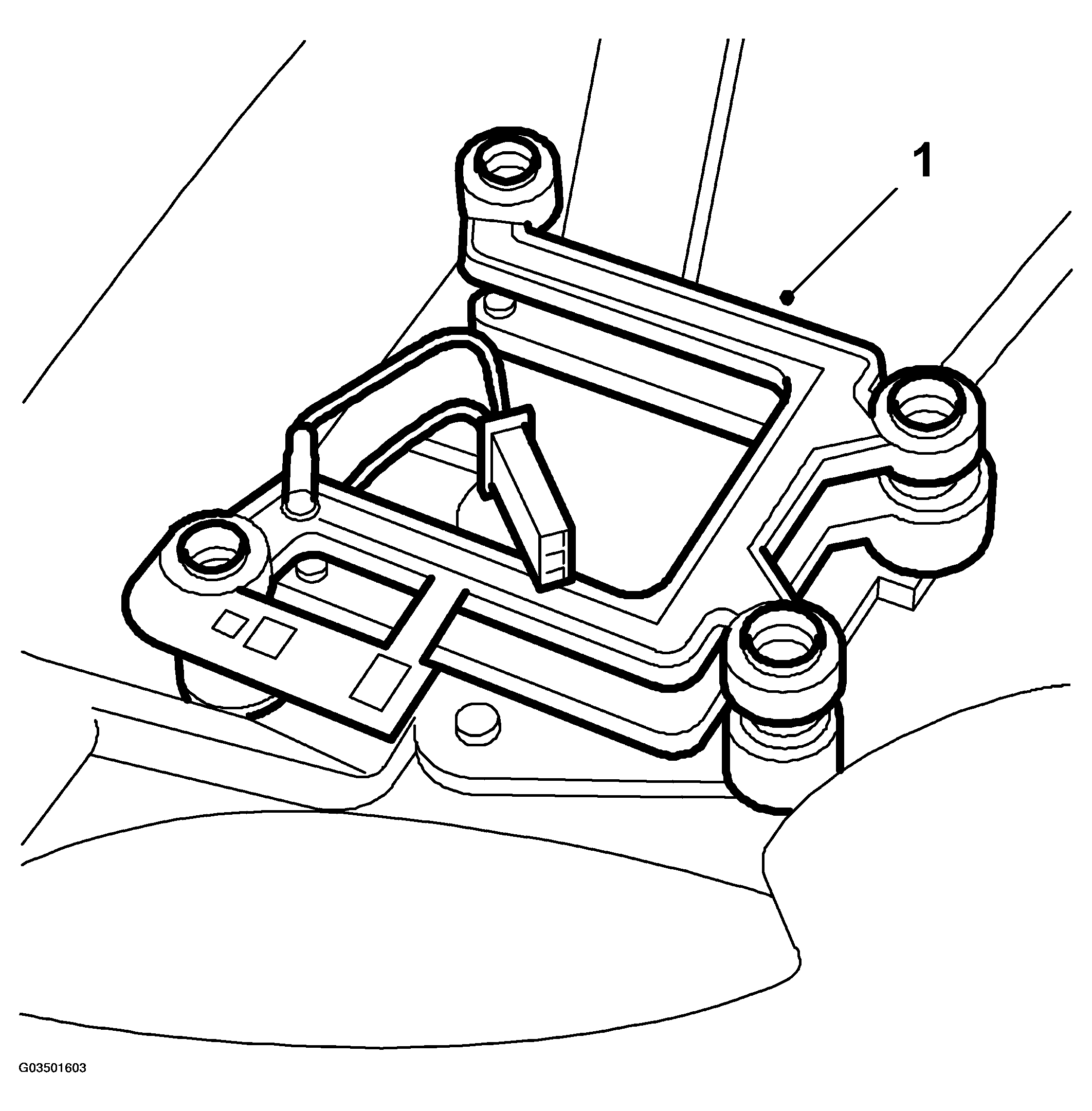

Fig 1: Illustration For Step 1
G03501603Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the old springs to the new horn switch.
  2. Place the horn plate on the horn switch.

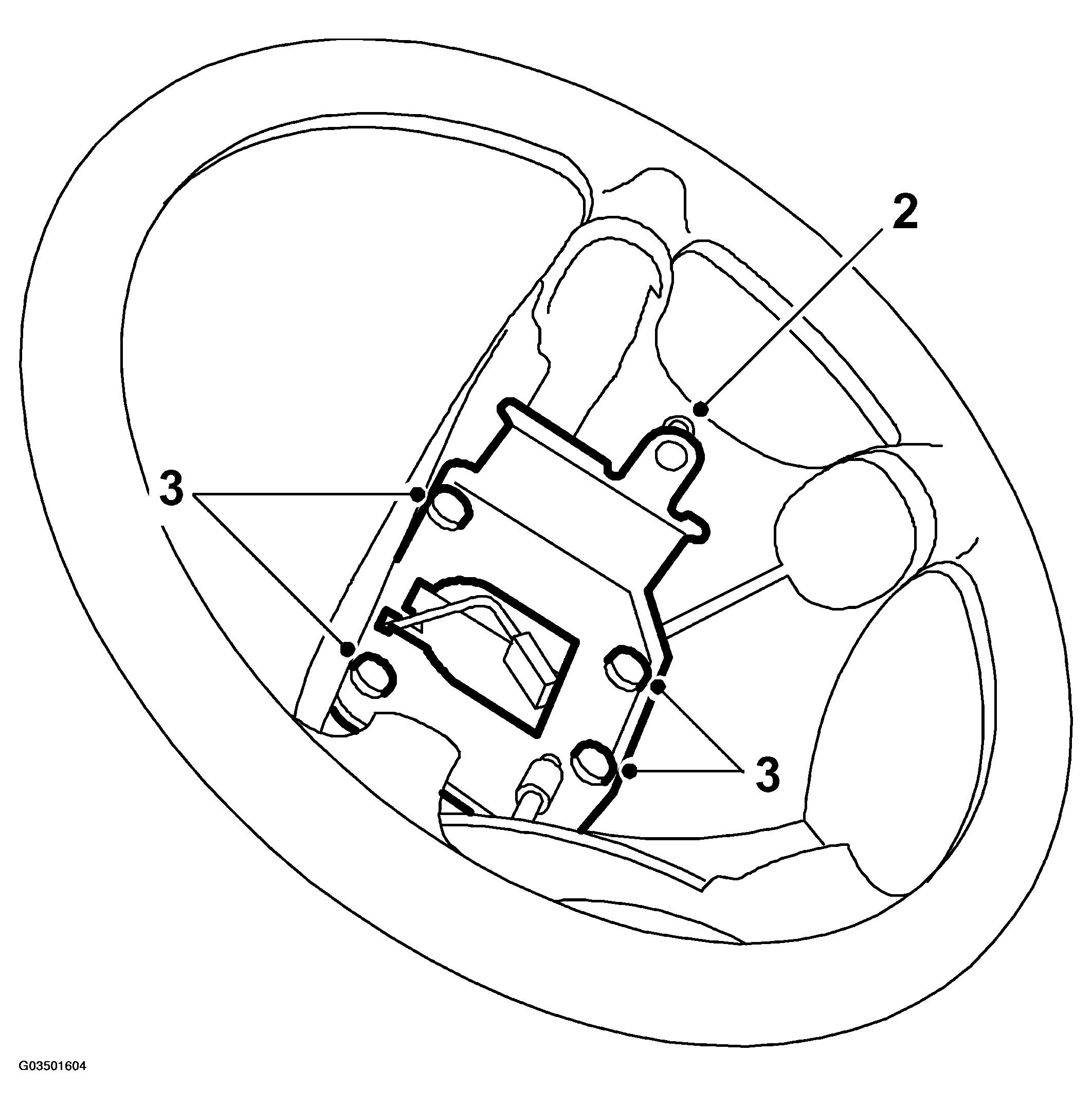

    Fig 2: Illustration For Step 2-3
    G03501604Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the horn plate.

    Tightening torque 8+/-1 N.m (5.86+/-0.73 lbf ft)

  4. Fir the airbag, see DRIVER-SIDE AIR BAG MODULE .
