To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

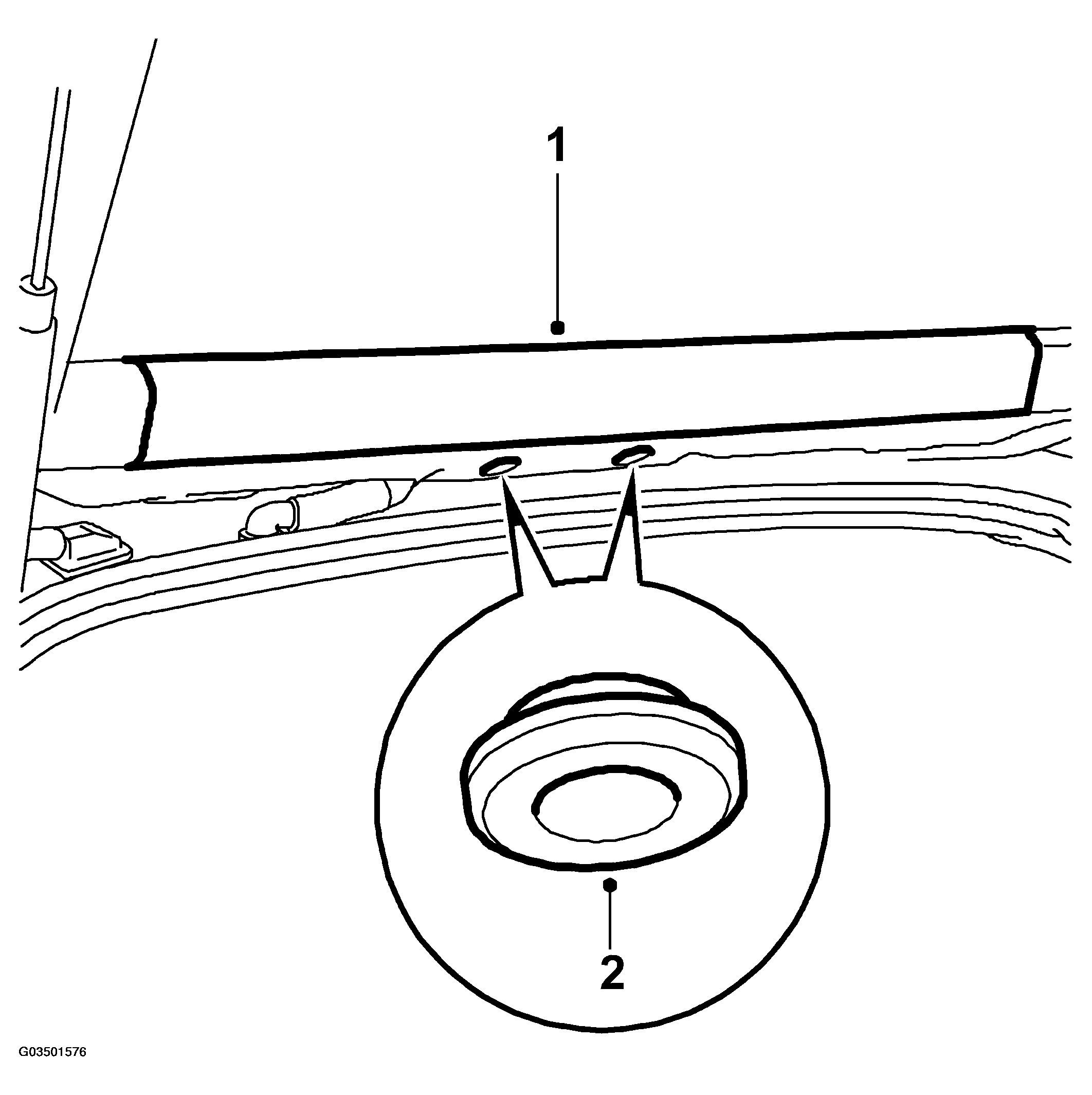

Fig 1: Illustration For Step 1-2
G03501576Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the strip above the rear window (inside the car).
  2. Remove the two rubber plugs.
  3. Unscrew the nuts holding the brake light.

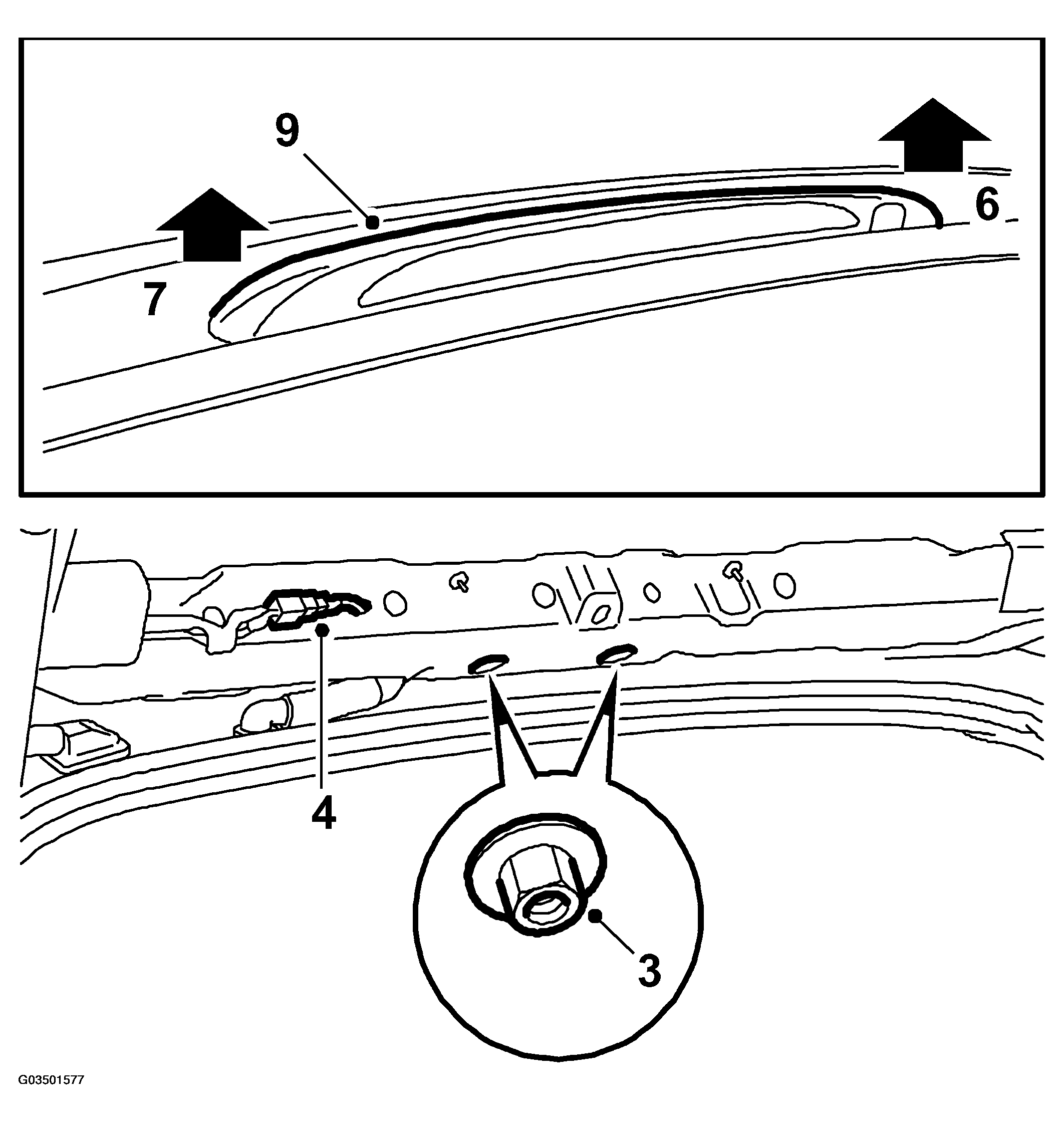

    Fig 2: Illustration For Step 3-9
    G03501577Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Separate the connector.
  5. Press the cover down.
  6. Use a plastic spatula (or a screwdriver covered with tape) on the right of the rear window washer nozzle and carefully pry up the brake light.
  7. Repeat this operation on the left side.
  8. Lift up the lamp and put out the electrical lead.
  9. Replace the unit.
