To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

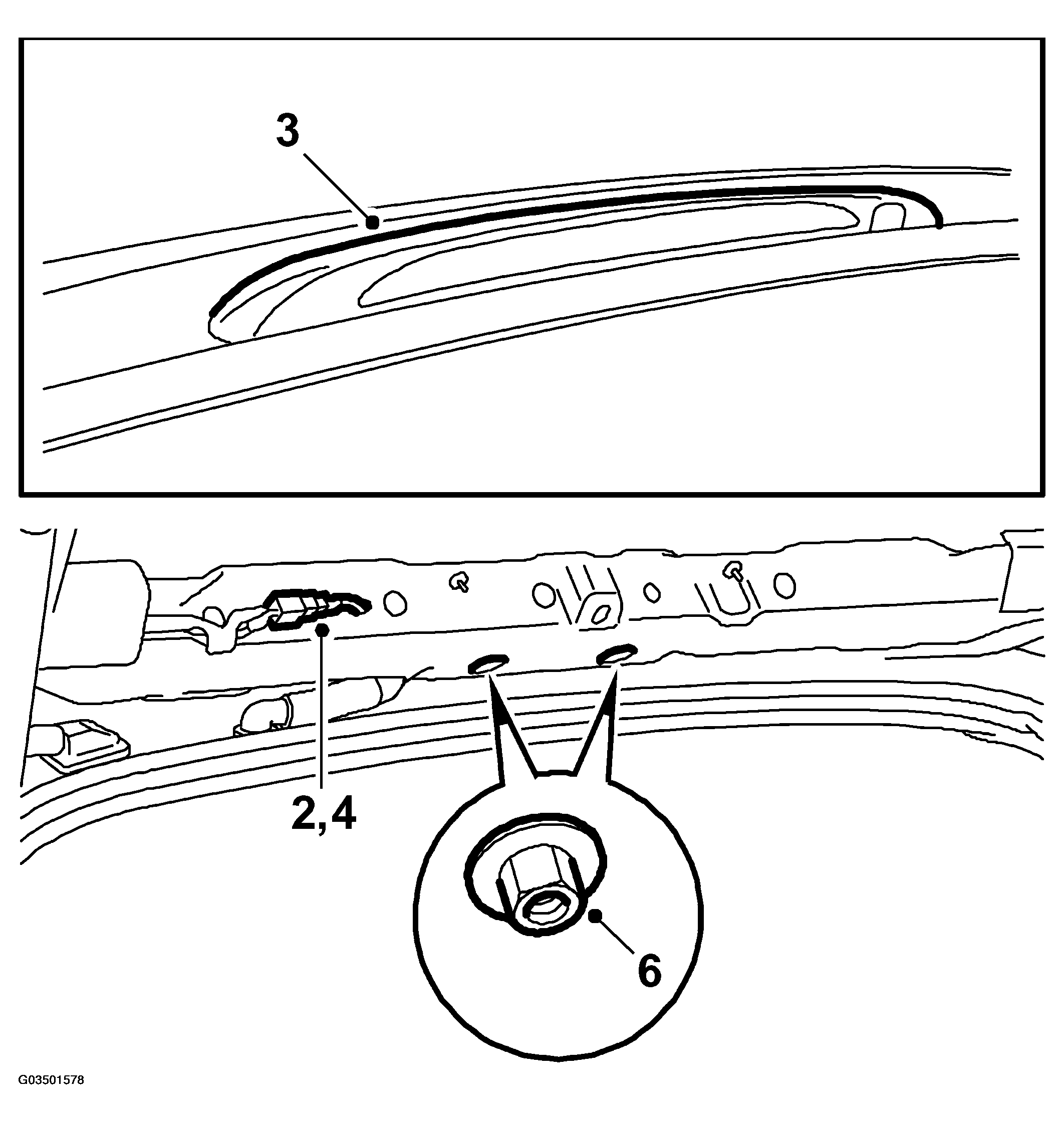

Fig 1: Illustration For Step 2-6
G03501578Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Put the electrical lead back again and put the lamp unit back.
  2. Take the lead out on the inside of the cover.
  3. Fit the brake light unit in position.
  4. Fit the lamp holder.
  5. Lift the cover.
  6. Tighten the nuts that hold the brake light.
  7. Put back the two rubber plugs.

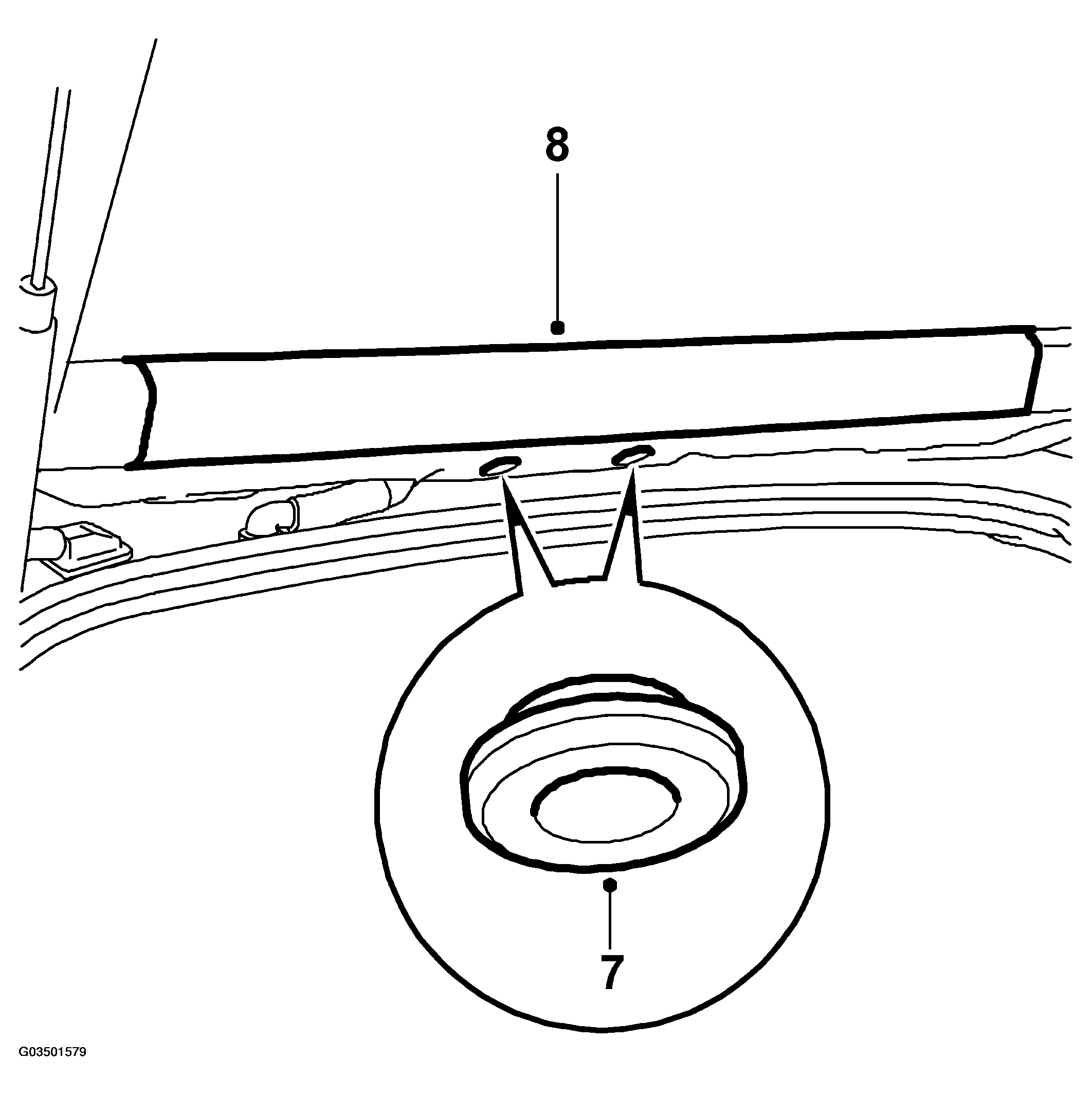

    Fig 2: Illustration For Step 7-8
    G03501579Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Put the strip back again above the rear window (inside the car).
