To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

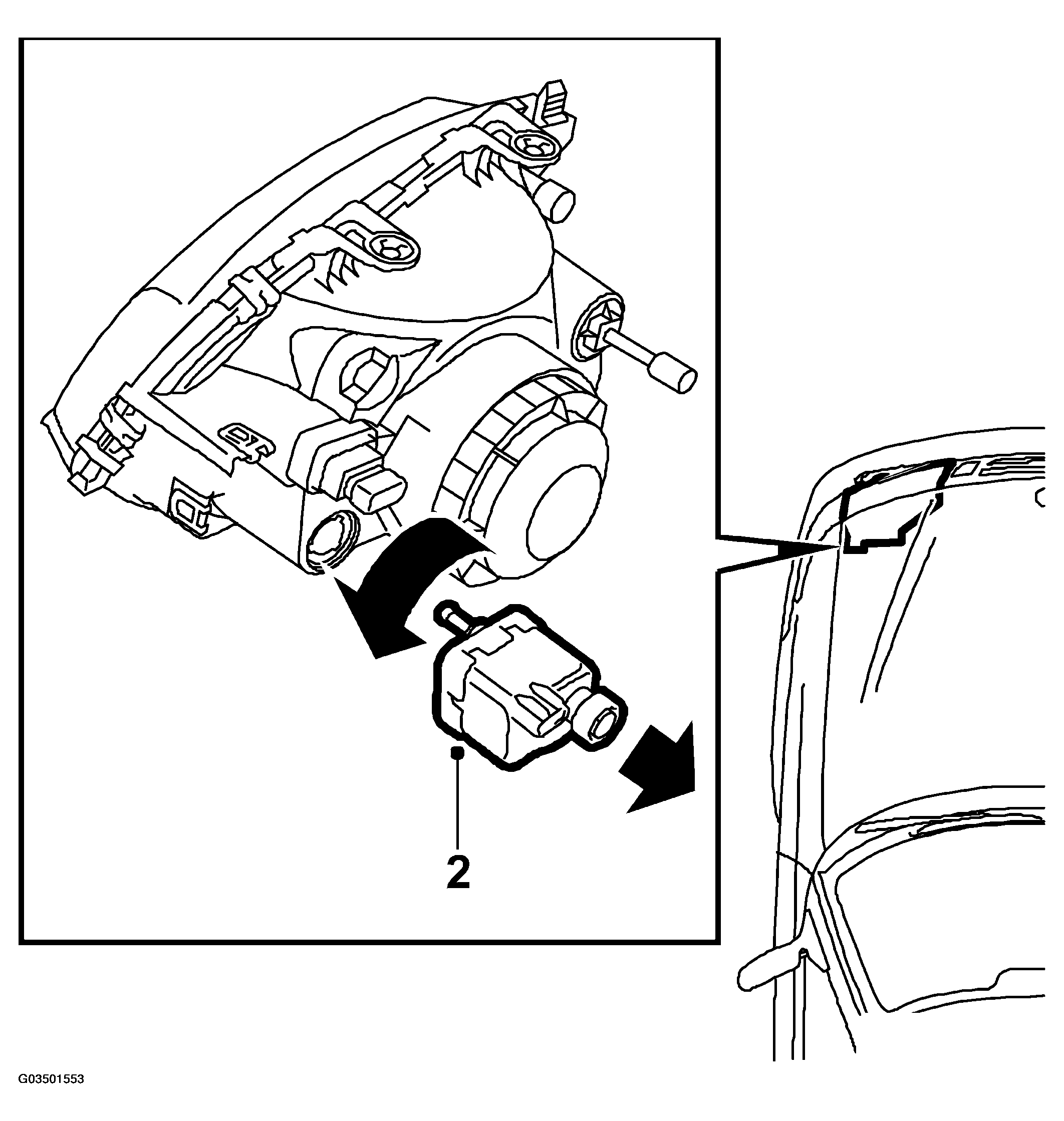

Fig 1: Illustration For Step 2
G03501553Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the direction indicator, see Direction Indicators, Front . Remove the headlamp, see Main Lighting .
  2. Turn the motor approx. 45° and pull it straight out with moderate force.
