To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

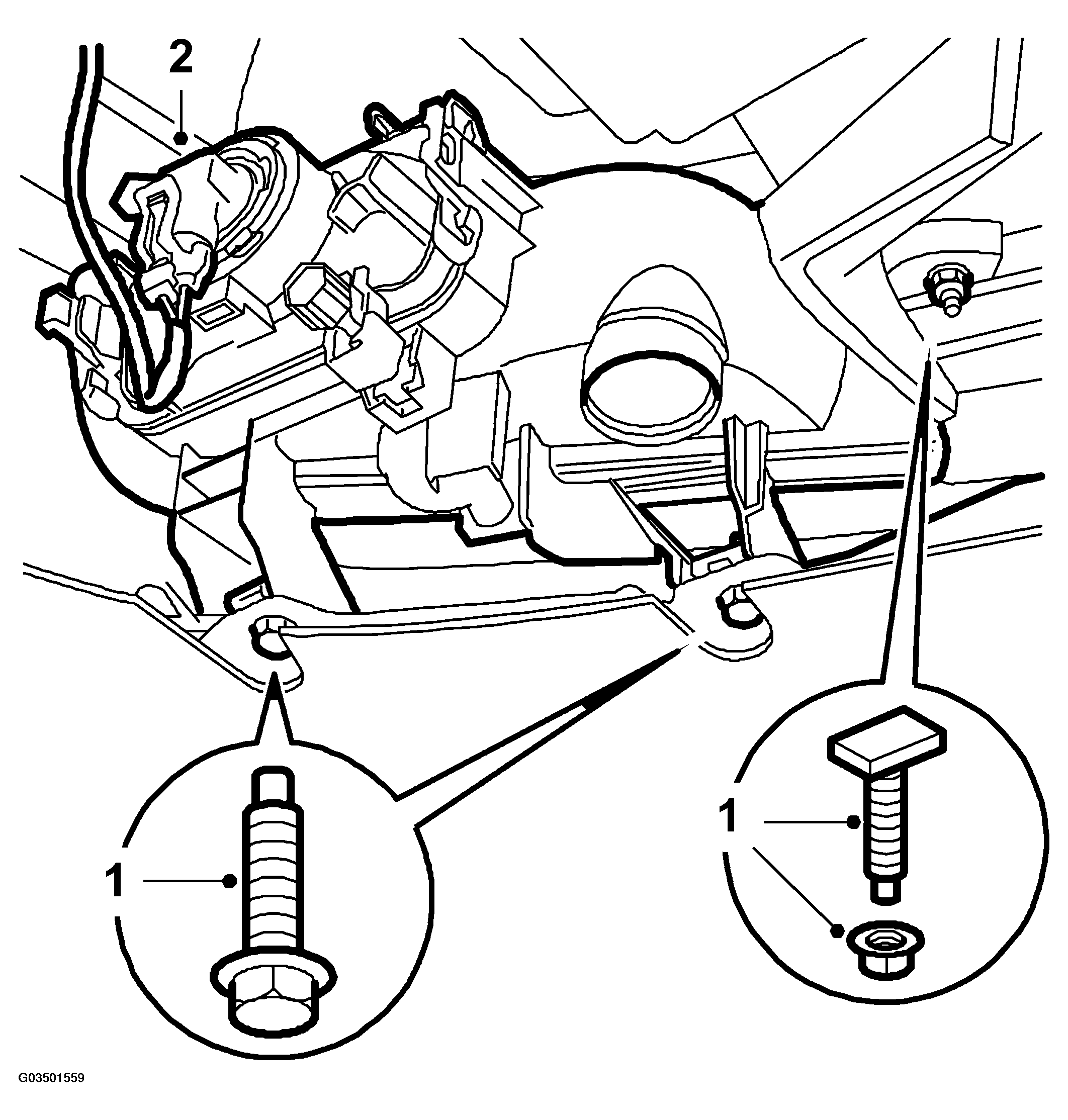

Fig 1: Illustration For Step 1-2
G03501559Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the 2 screws at the bottom and the retaining nut at the top of the fog light.
  2. Lift out the fog light and unplug the connector.
