Light bulb, fog light

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

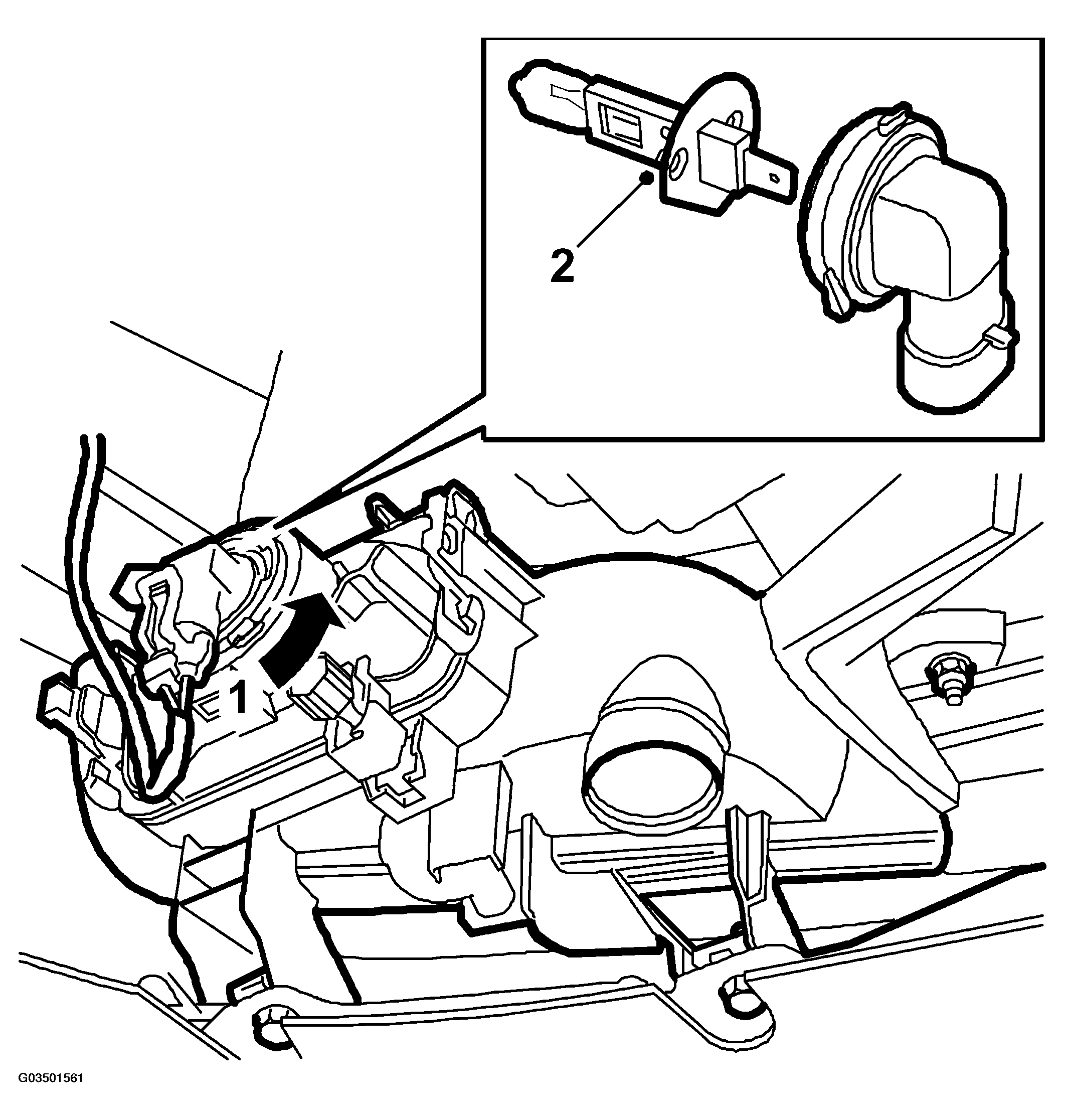

Fig 1: Illustration For Step 1-2
G03501561Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Turn the lamp holder 45° and pull it straight out.
  2. Pull the bulb straight out and change it.
  3. Fit the lamp holder by turning it.
