Fog light adjustment

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the distance between the centre of the lens and the floor. Mark the wall (at 90° to the lens) with a cross at the same height.

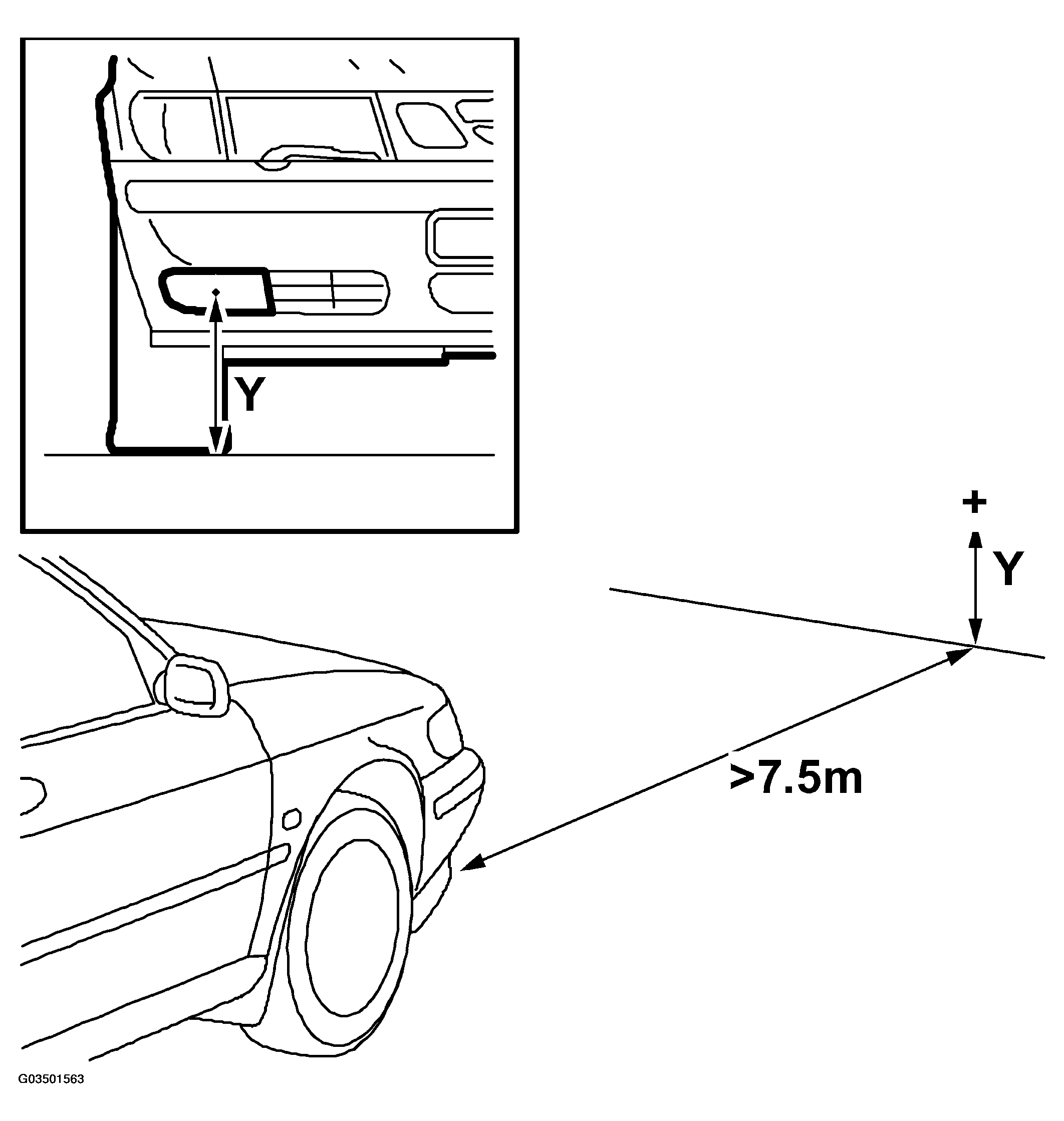

    Fig 1: Measuring Distance Between Center Of Lens And Floor And Marking Wall (At 90° To Lens) With Cross At Same Height
    G03501563Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Switch on the fog lights.
  3. Turn the adjusting screw until the light is below the cross by approximately 1-2% of the distance between the car and the wall (e.g. 10-20 cm under the cross if the distance between the car and the wall is 10 m).

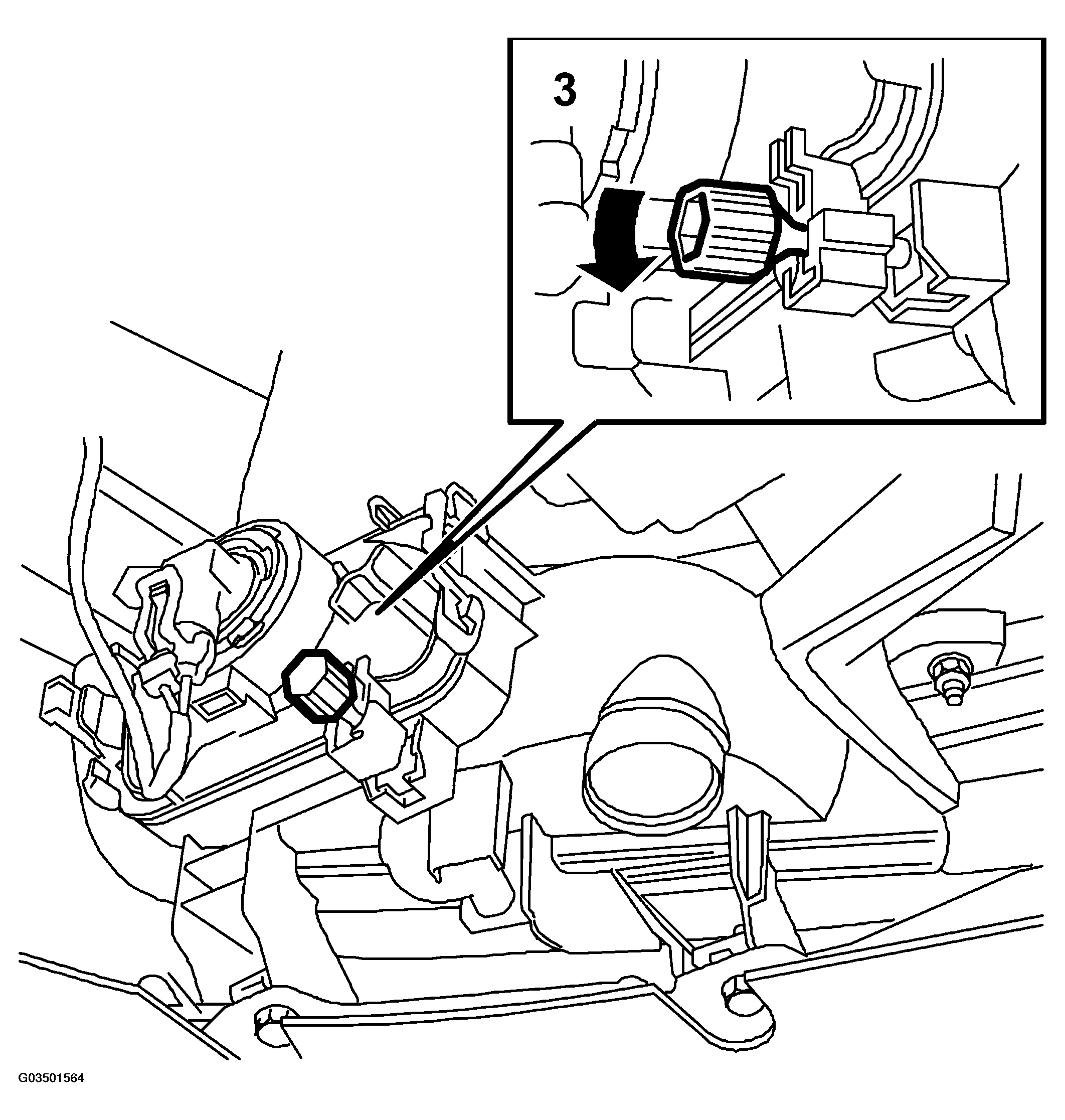

    Fig 2: Illustration For Step 3
    G03501564Courtesy of SAAB-SCANIA OF AMERICA, INC.
