To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

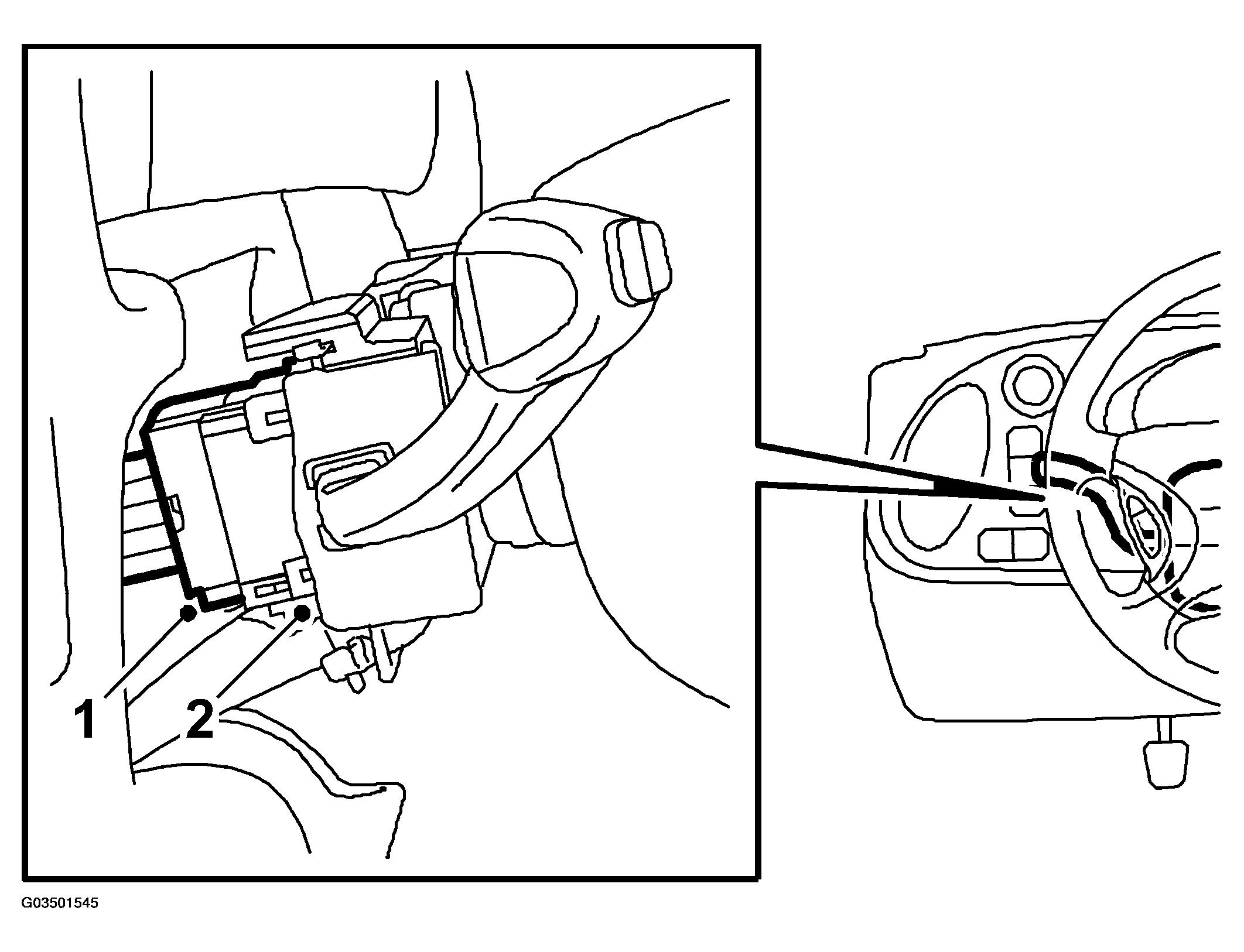

Fig 1: Installing Stalk Switch (Steps 1-2)
G03501545Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Reconnect the 10 pin connector.
  2. Fit the stalk switch.
  3. Fit the steering column bearing bracket cowls.

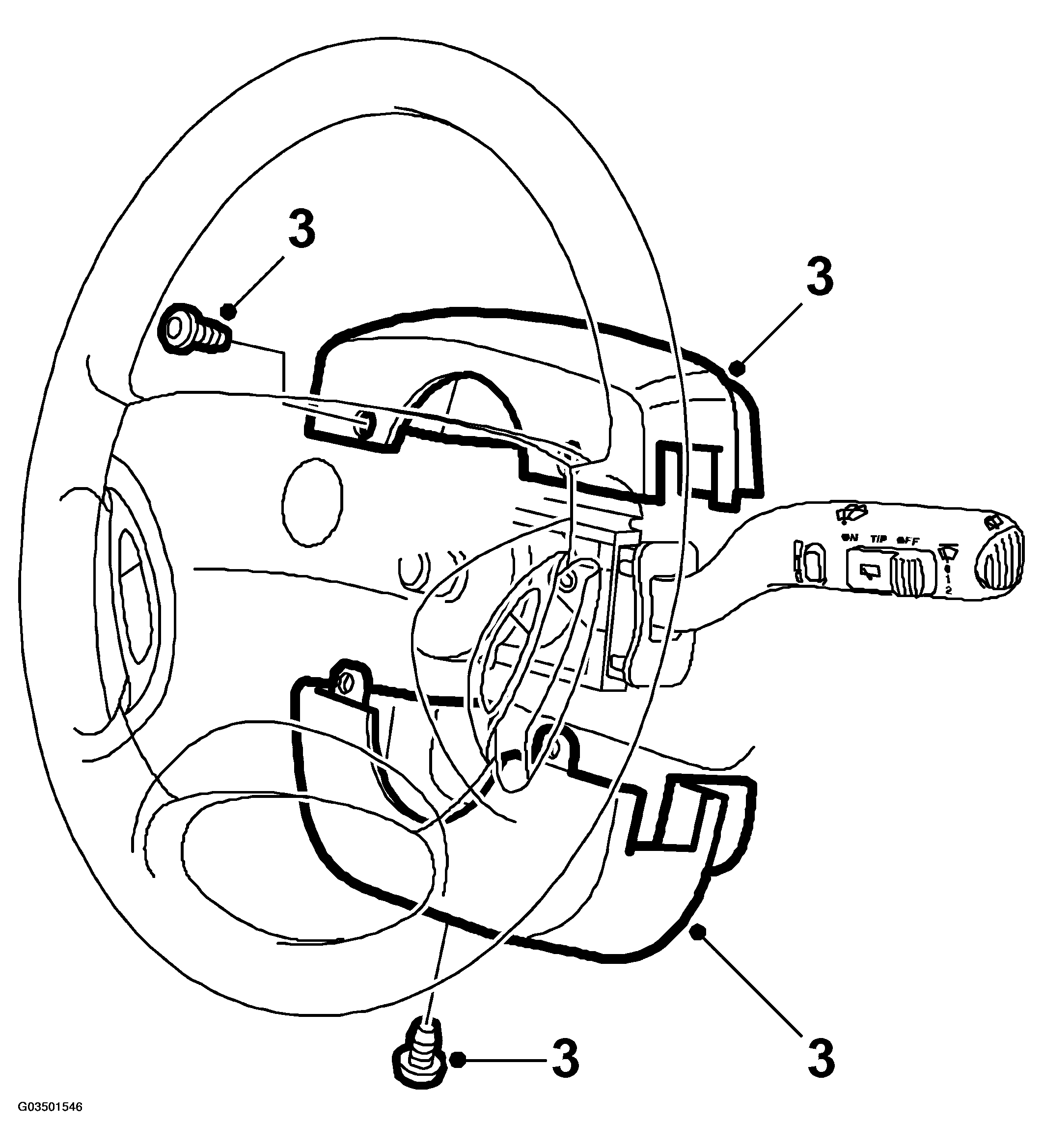

    Fig 2: Illustration For Step 3
    G03501546Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Adjust the steering wheel to its original position.
