To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

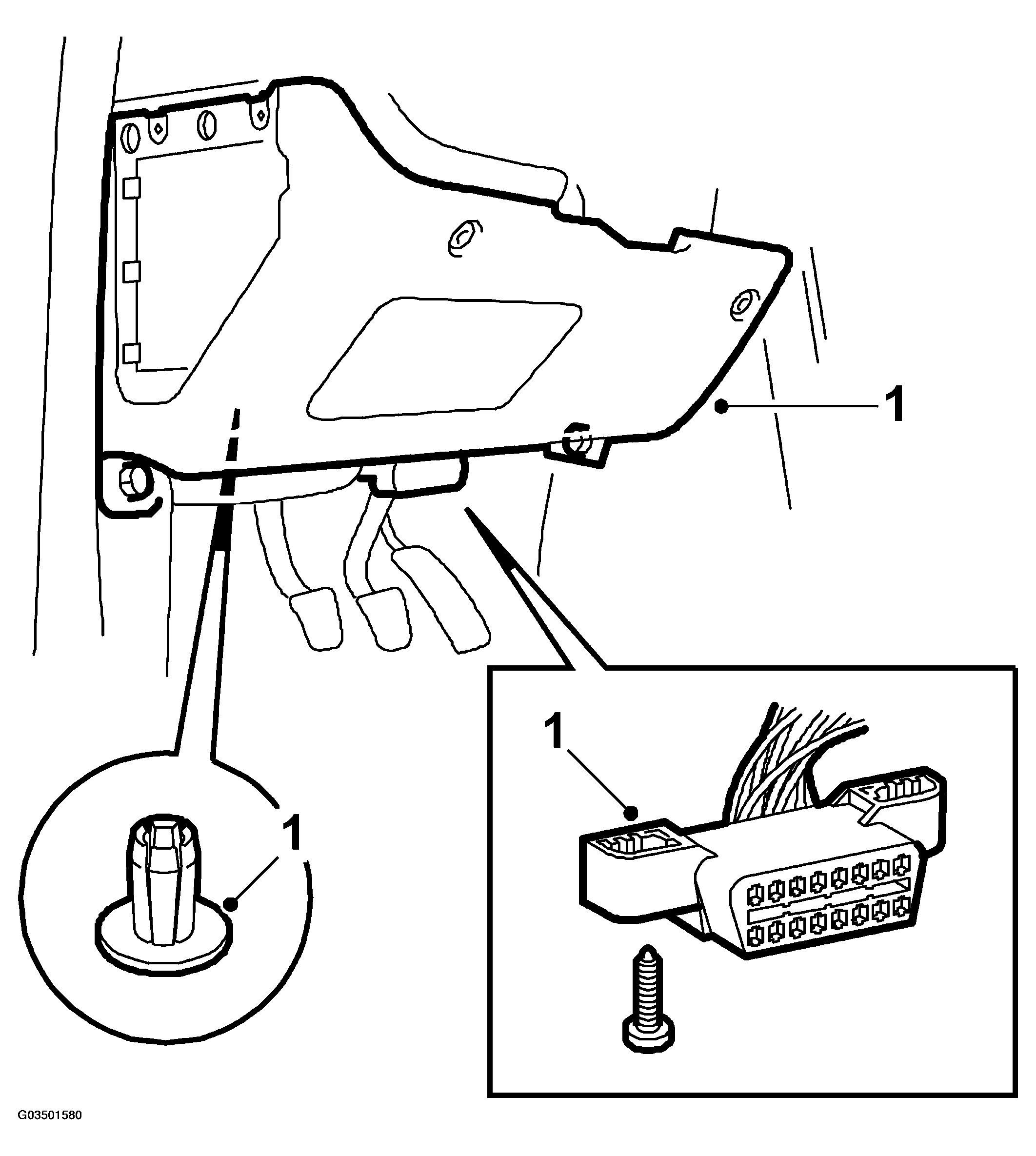

Fig 1: Illustration For Step 1
G03501580Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the lower part of the dashboard on the driver's side.
  2. Turn the brake light switch in any direction and then lift it out.

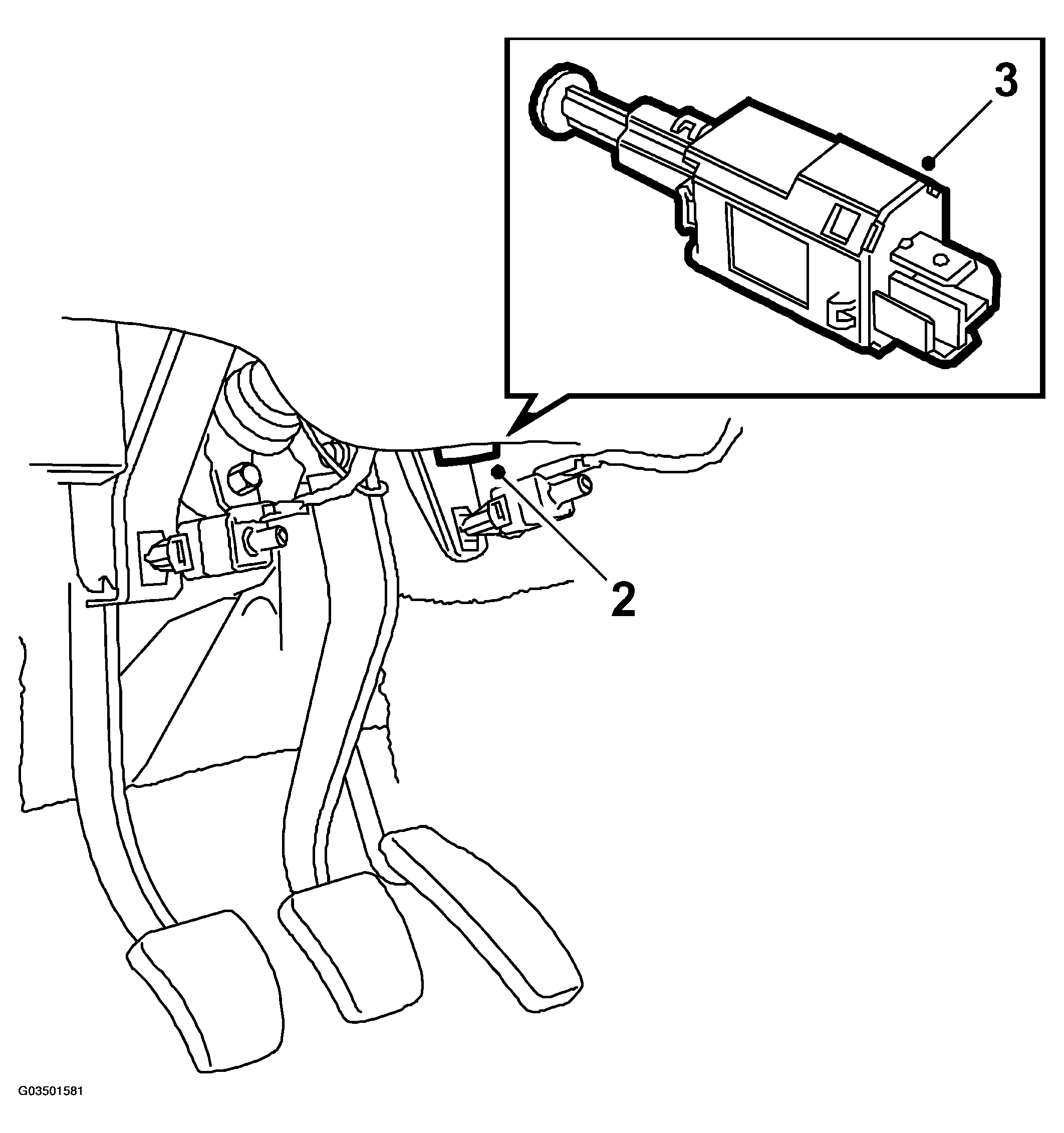

    Fig 2: Illustration For Step 2-3
    G03501581Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector.
