To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

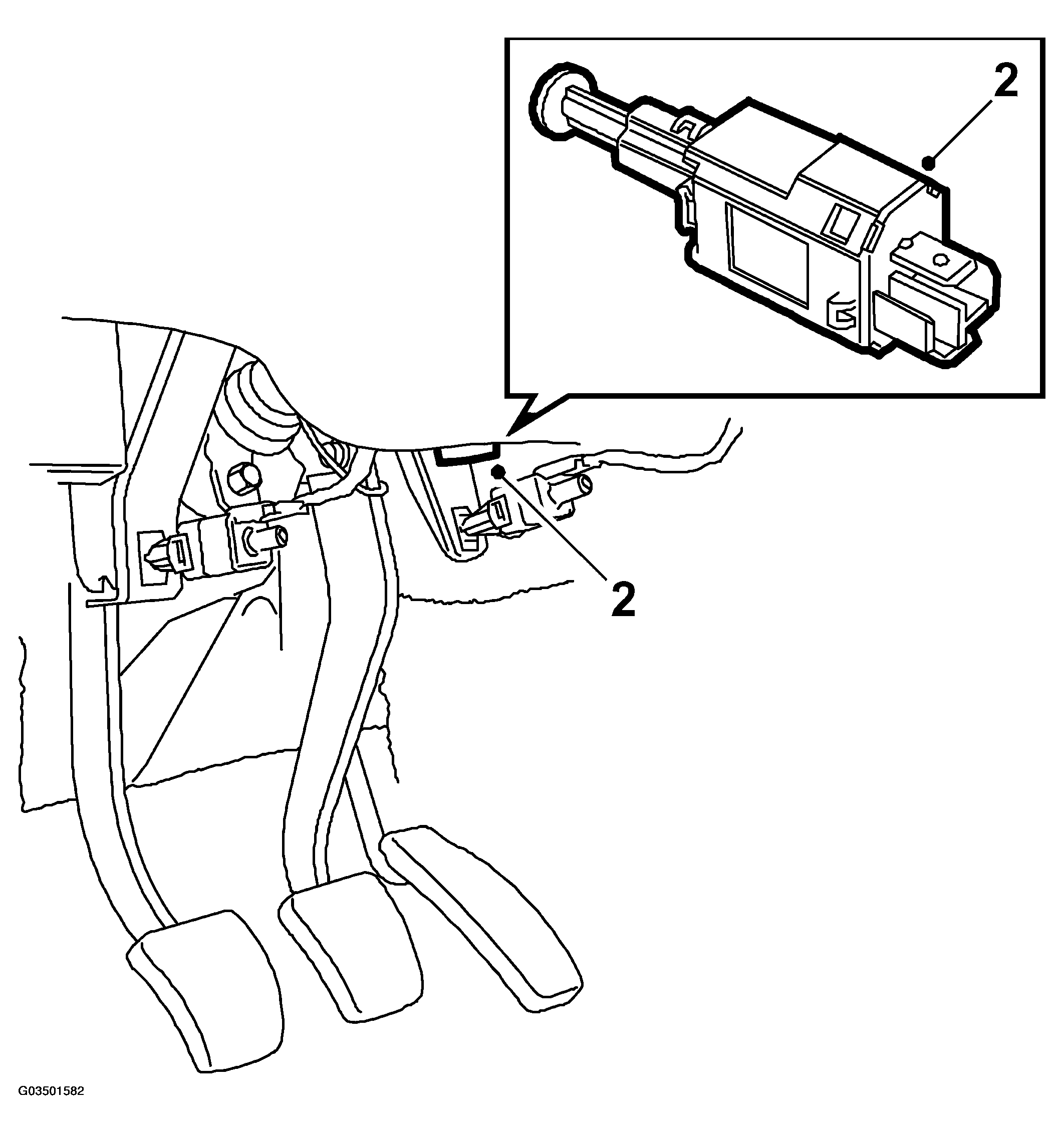

Fig 1: Illustration For Step 2
G03501582Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Replug the connector.
  2. Put the switch back in position and turn it in any direction.
  3. Refit the lower part of the dashboard on the driver's side.

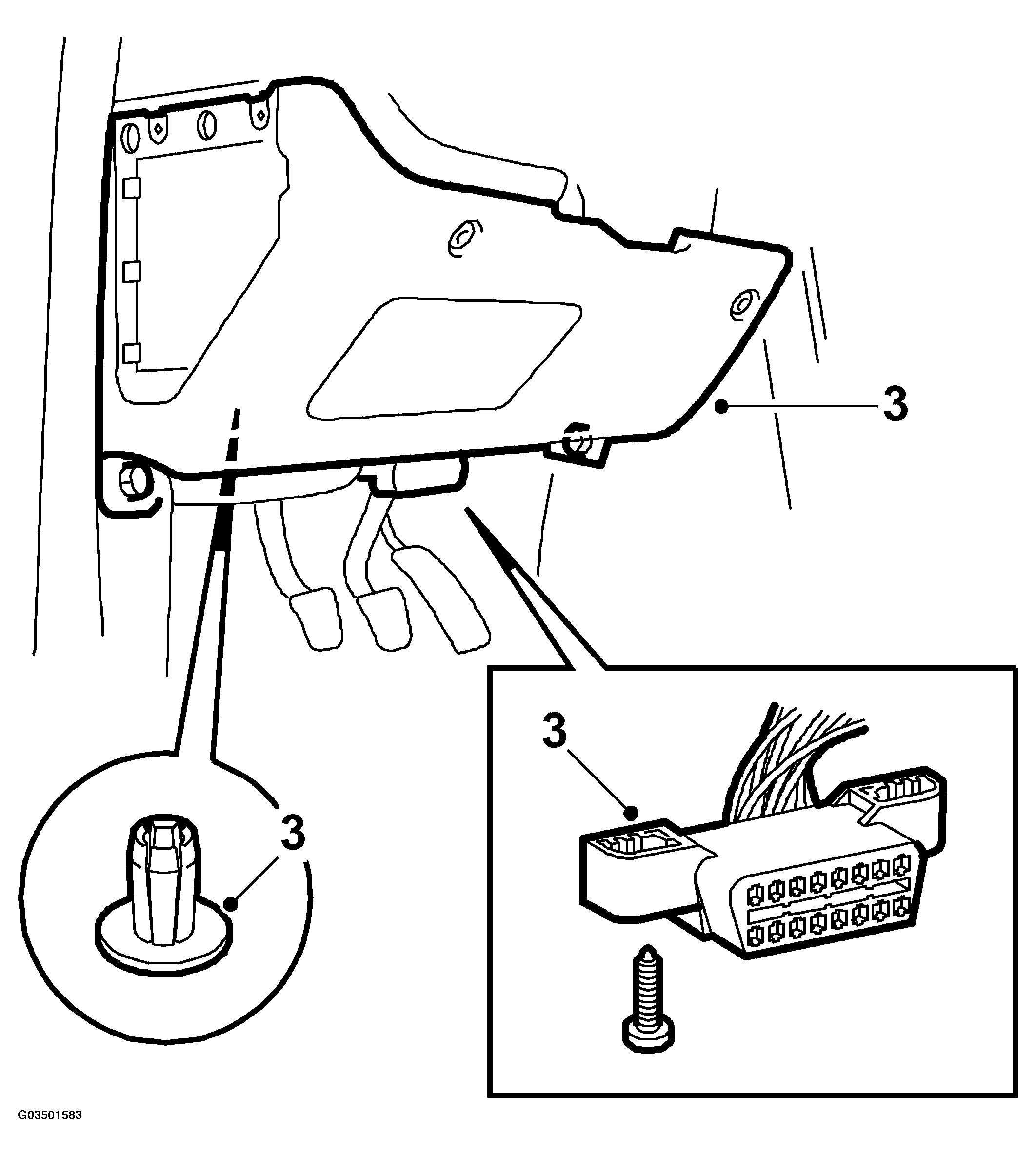

    Fig 2: Illustration For Step 3
    G03501583Courtesy of SAAB-SCANIA OF AMERICA, INC.
