Radiator fan system, 2 speeds: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

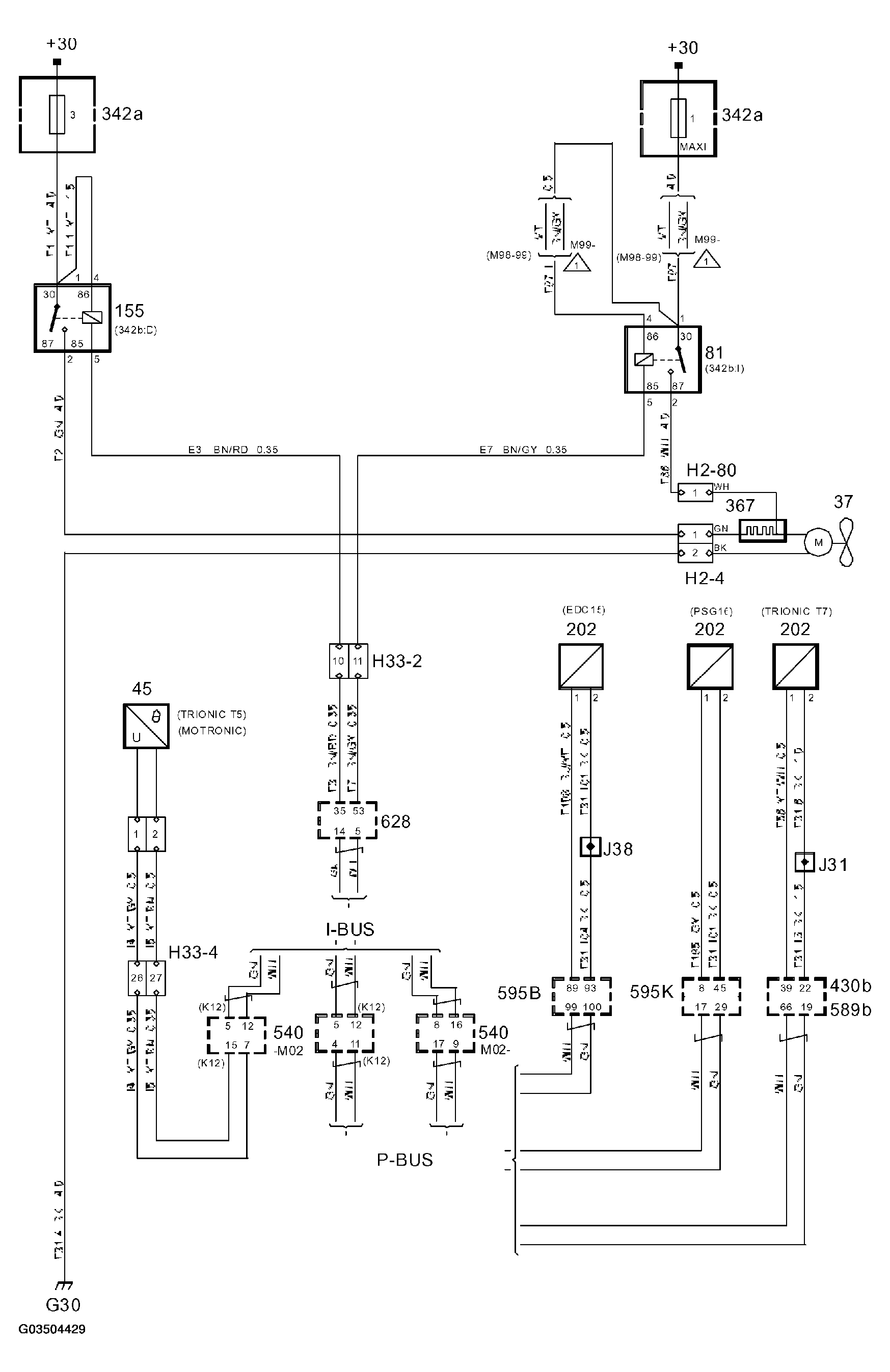

Fig 1: Circuit Diagram (Radiator Fan System, 2 Speeds)
G03504429
