System overview, radiator fan system, 1-speed

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

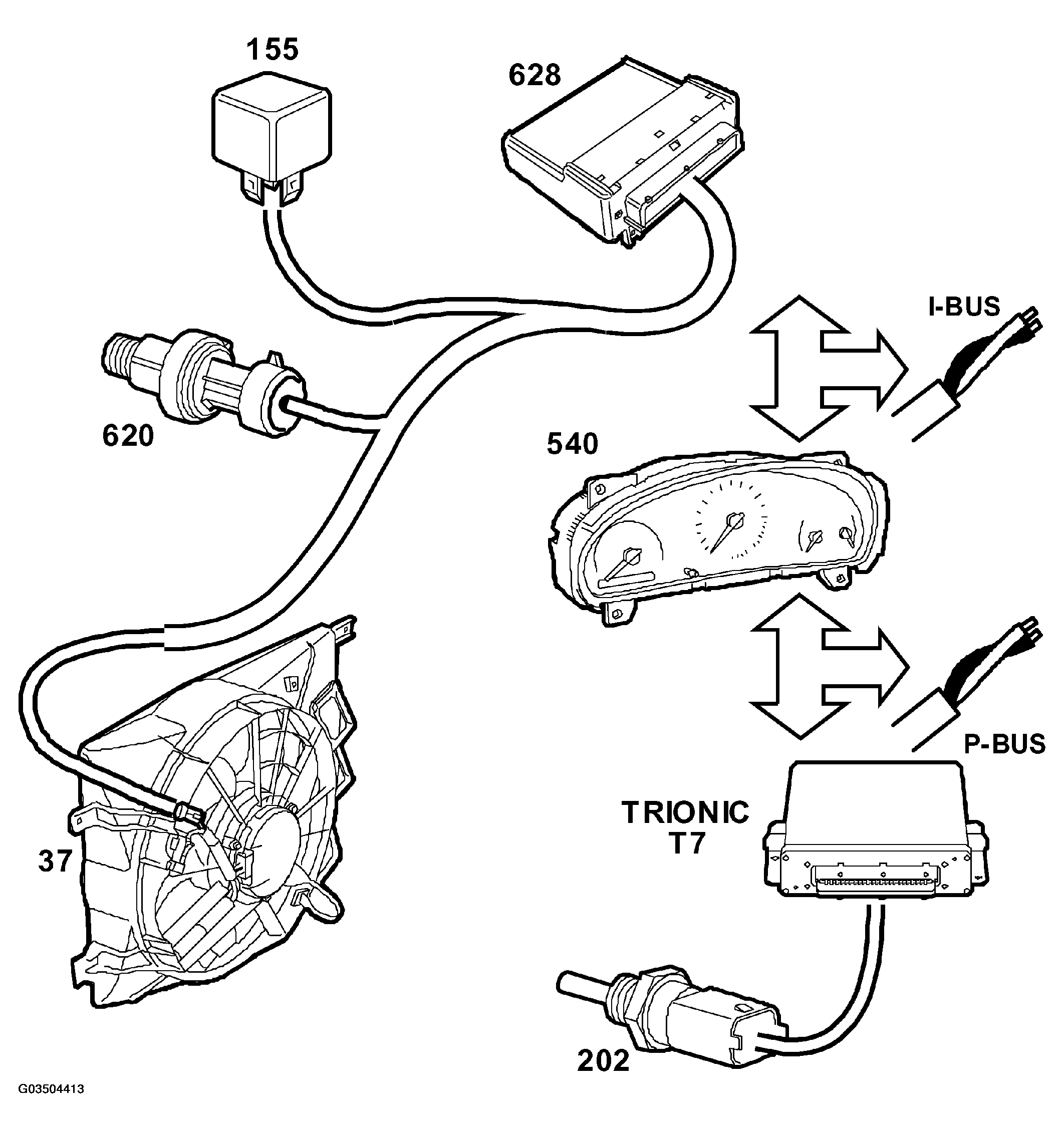

Fig 1: Radiator Fan System (1-Speed)

Control module, DICE (628)
Relay, radiator fan (155)
Radiator fan (37)
Control module, TRIONIC T7 (430b)
Main instrument unit (540)
Pressure sensor, A/C (620)
Temperature sensor, coolant (202)
