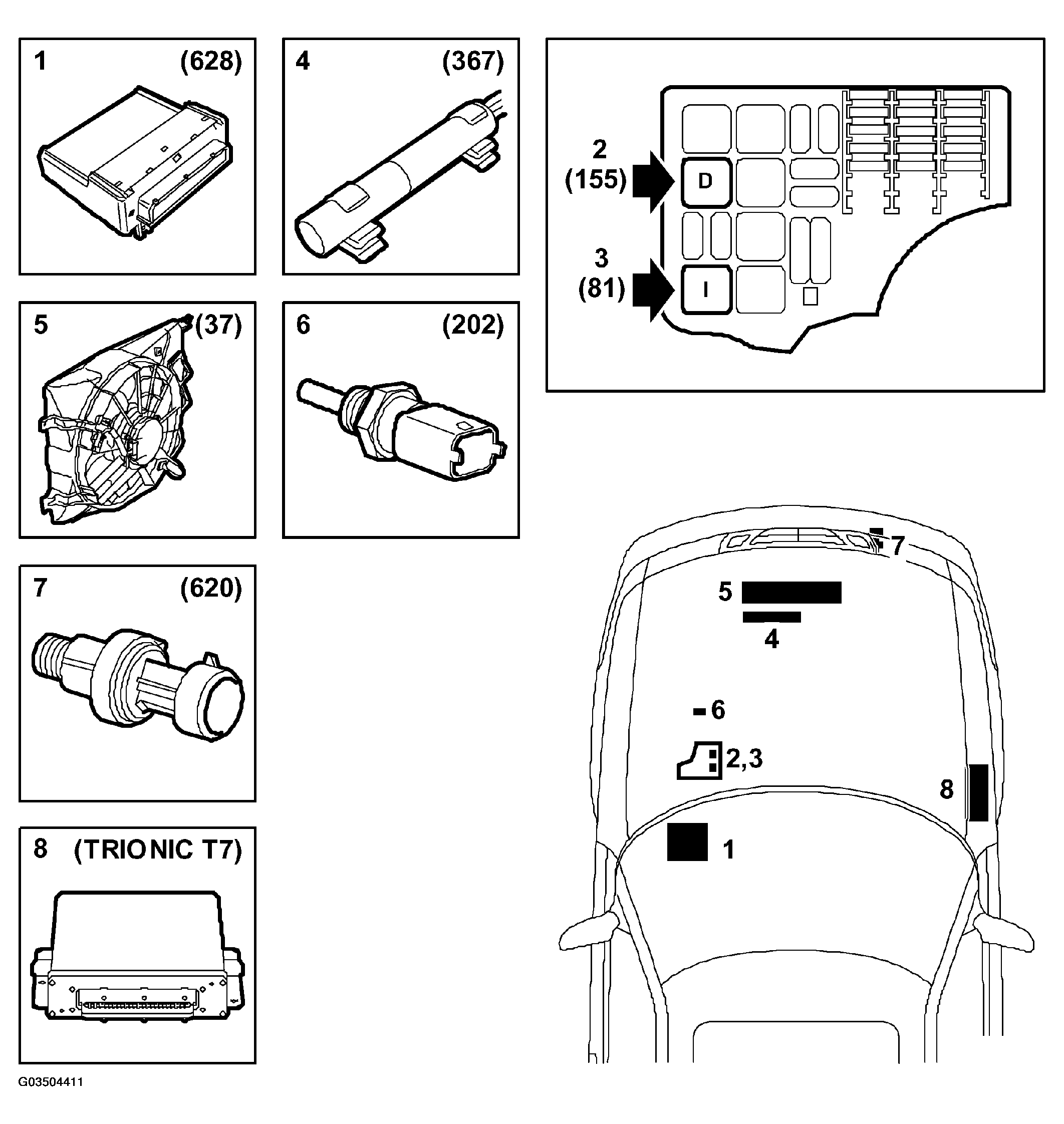

Main components, radiator fan system
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Control module, DICE (628)
- Relay, 2-speed radiator fan, low speed (155)
- Relay, 2-speed radiator fan, high speed (81)
- Series resistor (367)
- Radiator fan (37)
- Temperature sensor, coolant (202)
- Pressure sensor, A/C (620)
- Control module, Trionic T7, petrol engine (430b)
