High Speed Radiator Fan Relay 1. Short to B+: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

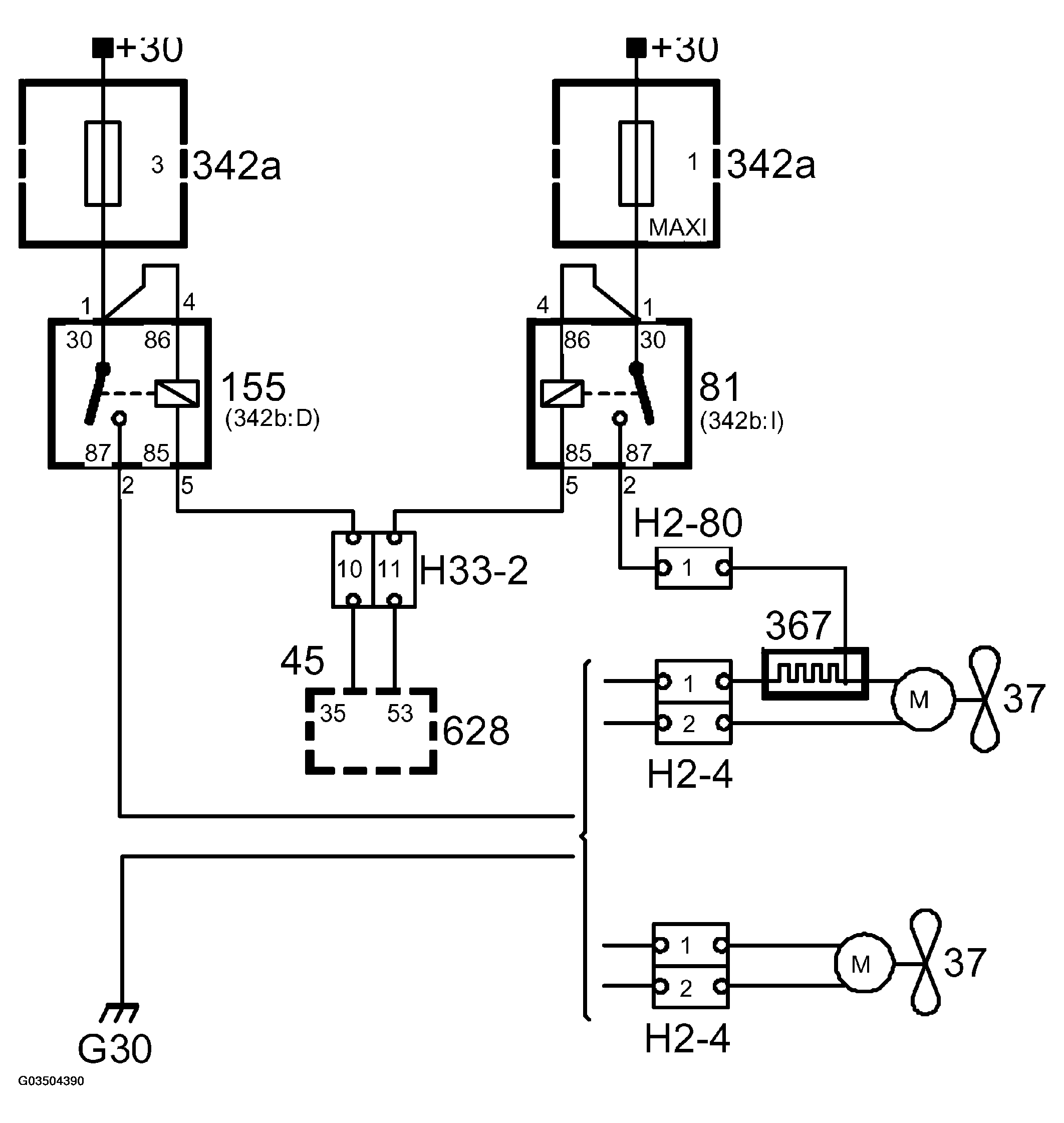

Fig 1: Circuit Diagram (High Speed Radiator Fan Relay 1. Short To B+)
G03504390
