Trionic T7 control module 4-cyl LEV/OBDII (589b)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

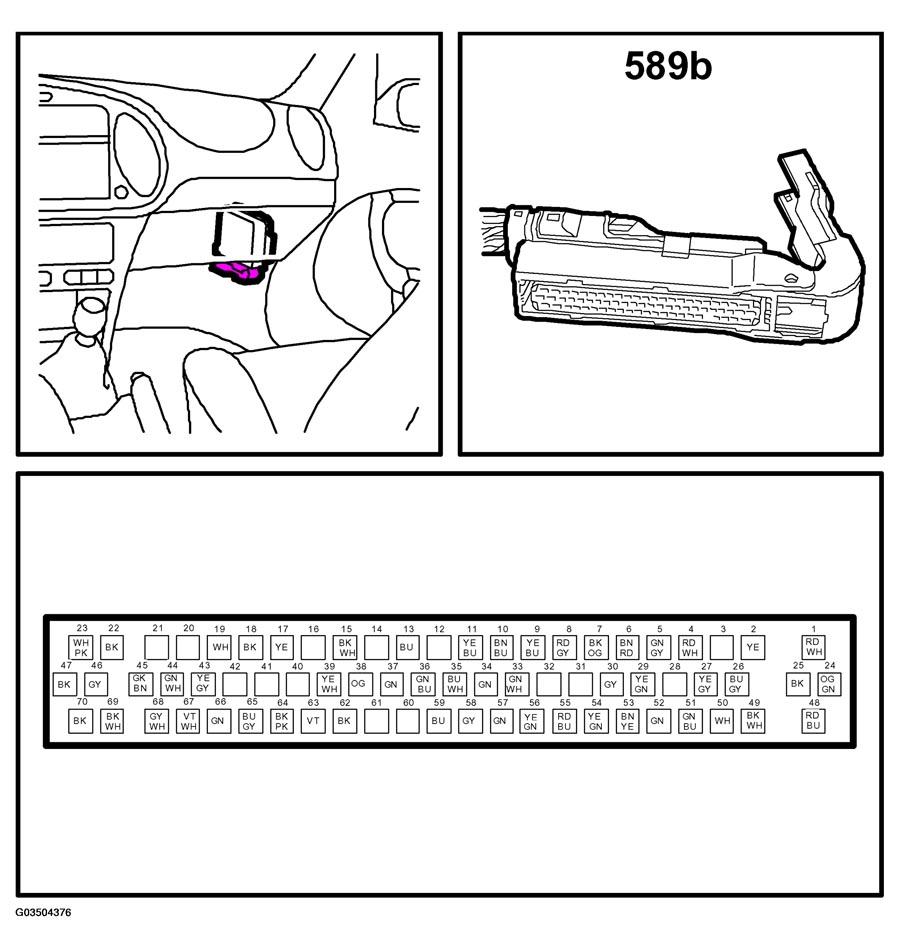

Fig 1: Identifying Trionic T7 control module 4-cyl LEV/OBDII (589b) Location
G03504376
